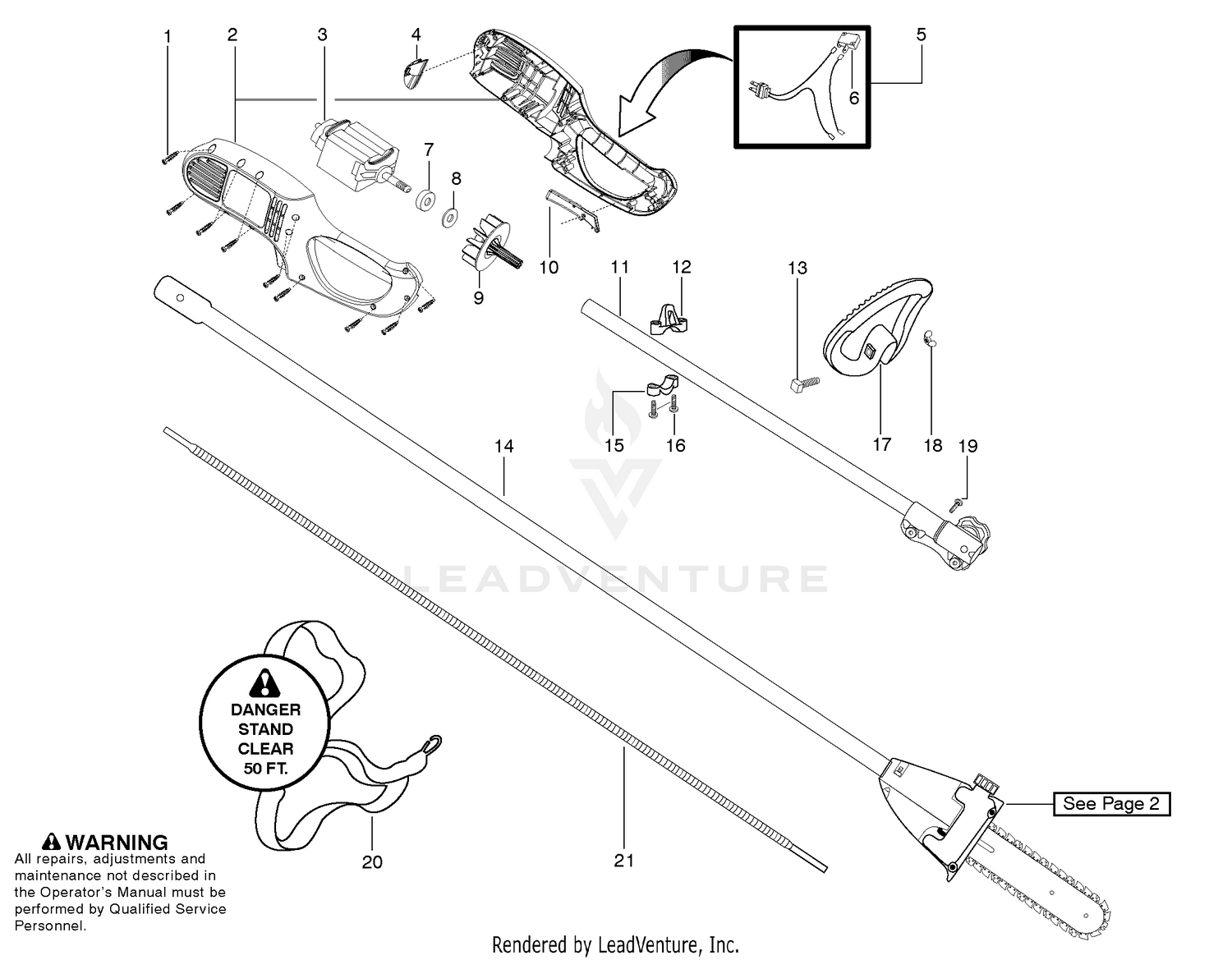

| Ref | Part Number | Description |
|---|
| 1 |
107-7773 |
SCREW-HSH Price: $8.36 |
| 1 |
530016120 |
Screw Price: $1.99 |
| 2 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 2 |
530071963 |
Assy-Housing Set w/decal Price: $17.99 |
| 3 |
112-8983 |
FRONT GRASS SHIELD ASM Price: $66.99 |
| 3 |
530404326 |
Assy-Motor Price: $49.99 |
| 4 |
125-1998 |
SHIELD-GRASS, REAR This part replaces 112-8985-01. Price: $110.25 |
| 4 |
530404385 |
Retainer-Cord Price: $3.99 |
| 5 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 6 |
322-14 |
SCREW-HH Price: $1.01 |
| 6 |
530404396 |
Switch-Momentary Price: $1.99 |
| 7 |
110-1706 |
DEFLECTOR Price: $4.76 |
| 7 |
530404165 |
Spacer Price: $2.99 |
| 8 |
530400897 |
Washer Price: $1.99 |
| 9 |
530404327 |
Fan-Cooling Price: $8.99 |
| 10 |
530404325 |
Trigger-Switch Price: $2.99 |
| 12 |
530057986 |
Clamp-Upper Harness Price: $2.99 |
| 13 |
530015786 |
Bolt-Handle Price: $1.99 |
| 14 |
530096012 |
Assy-Driveshaft Price: Call Us |
| 15 |
530057987 |
Clamp-Lower Harness Price: $3.99 |
| 16 |
530015940 |
Screw Price: $1.99 |
| 18 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 19 |
530016381 |
Screw Price: $2.99 |
| 20 |
530094417 |
Shoulder Strap This part replaces 530094408. Price: $20.65 |
| 21 |
530056570 |
Shaft-Flex Price: $14.99 |
