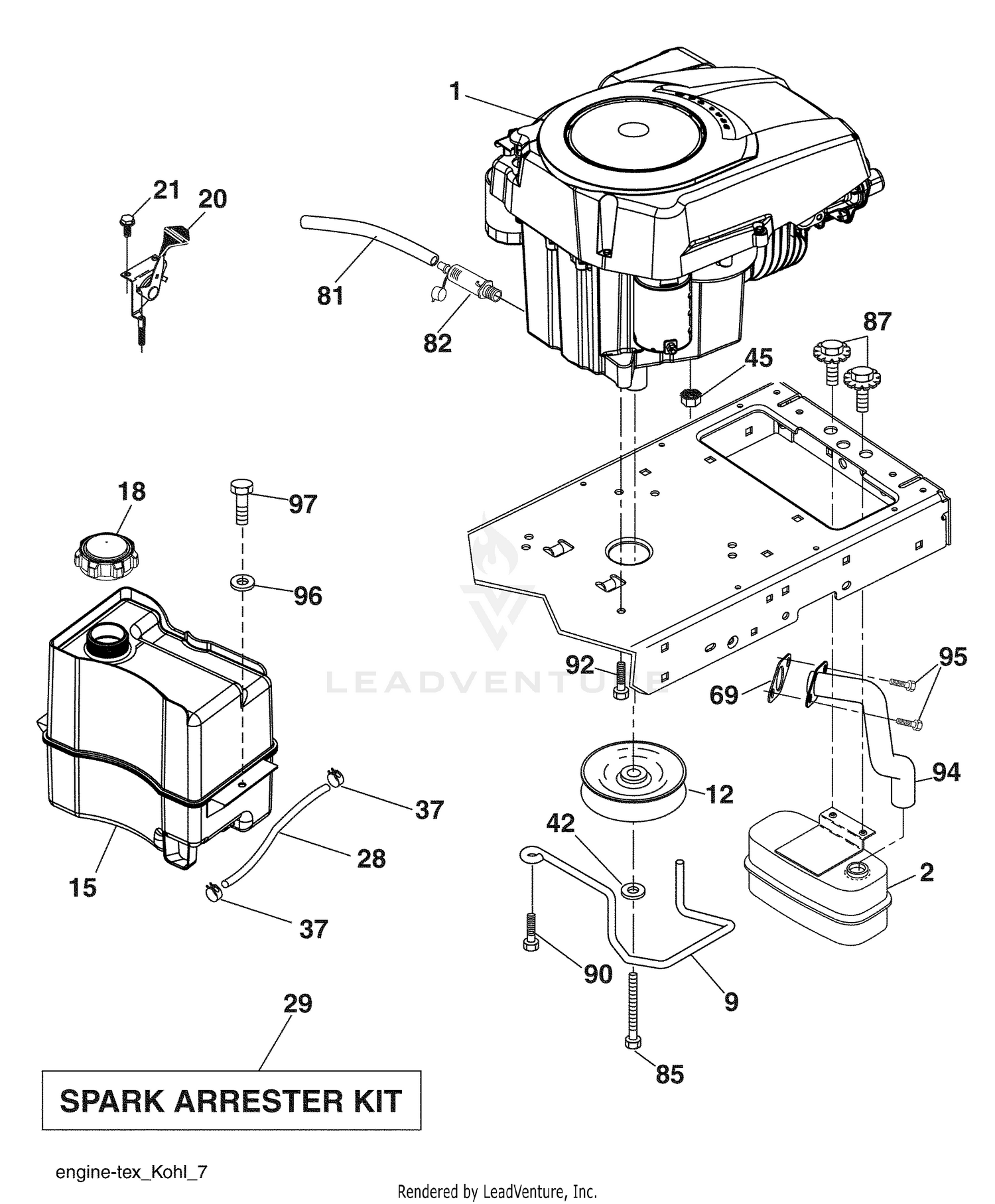

| Ref | Part Number | Description |
|---|
| 1 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 2 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 4 |
112-0169 |
SEATBELT ASM-SERVICE This part replaces 21-4191. Price: $283.31 |
| 5 |
104-4620 |
SEAT This part replaces 92-1180. Price: $273.15 |
| 6 |
323-4 |
SCREW-HH Price: $1.02 |
| 7 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 8 |
3212-4 |
SCREW-HH Price: $2.73 |
| 9 |
3296-54 |
NUT-LOCK Price: $3.59 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
75-4370-03 |
BRACKET-SEAT This part replaces 75-4370. Price: $20.93 |
| 11 |
92-8753 |
DISCONTINUED Price: Call Us |
| 12 |
3250-29 |
SCREW-PPH Price: $0.25 |
| 12 |
532405472 |
RP_PULLEY ENGINE Price: $34.99 |
| 13 |
92-8001 |
SENSOR-SWITCH, REED Price: $86.02 |
| 14 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 15 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA This part replaces 532407489. Price: $99.99 |
| 15 |
75-4360-03 |
BRACKET-SUSPENSION, SEAT This part replaces 75-4360. Price: $17.81 |
| 16 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 17 |
2412-133 |
CLAMP-R Price: $3.19 |
| 18 |
322-3 |
SCREW-HH Price: $0.79 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532197725. Price: $22.99 |
| 19 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 20 |
532401508 |
CONTROL.TH/CK.COBRA.KO Price: $24.99 |
| 20 |
75-3400 |
SHAFT-PIVOT, SEAT Price: $21.81 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 28 |
587044822 |
HOSE.1/4".LOW.PERM.FUEL.LN.22" This part replaces 532401137. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 69 |
532185909 |
GASKET.EXHAUST.KOHLER Price: $7.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
537171877 |
BOLT 5/1618UNC X 3/4 W/ SEMS Price: $1.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 94 |
583955301 |
TUBE.EXHAUST.KOHLER.COURAGE This part replaces 532188654. Price: $27.99 |
| 95 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
