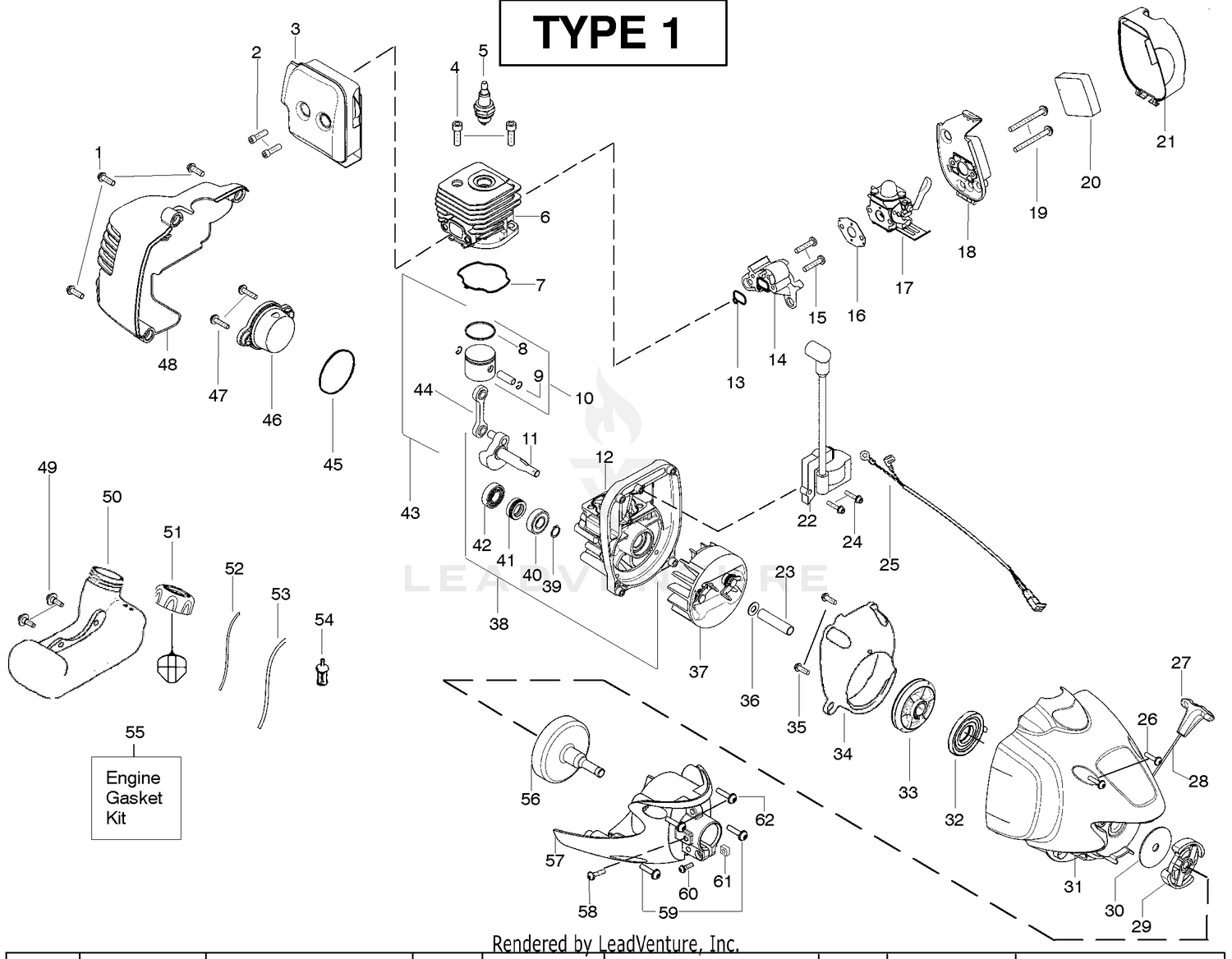

| Ref | Part Number | Description |
|---|
| 1 |
530015880 |
Screw Price: $1.99 |
| 2 |
530058982 |
Bolt-Muffler Price: $1.99 |
| 4 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 5 |
75-0170 |
PLUG-THREAD, STRAIGHT This part replaces 92-8776. Price: $18.20 |
| 5 |
952030249 |
Spark Plug (RCJ 6Y) Price: Call Us |
| 6 |
530012541 |
Cylinder Price: $11.99 |
| 7 |
112-7655 |
KIT-SERVICE This part replaces 95-5808. Price: $496.31 |
| 7 |
530071750 |
Seal-Cylinder (kit) Price: $8.99 |
| 8 |
25-2610 |
SPRING-VALVE This part replaces 95-5815. Price: $29.42 |
| 8 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 9 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 9 |
95-5814 |
VALVE-ACCELERATION Price: $268.12 |
| 11 |
136-3219 |
PLUG ASM This part replaces 95-5816. Price: $21.54 |
| 11 |
545145802 |
ASSY CRANKSHAFT This part replaces 530012579. Price: $17.99 |
| 12 |
93-4132 |
O-RING Price: $6.84 |
| 13 |
25-2430 |
PIN-DOWEL Price: $0.95 |
| 13 |
530071750 |
Seal-Cyl/Carb.(kit) Price: $8.99 |
| 14 |
25-2400 |
GASKET Price: $19.26 |
| 14 |
530057547 |
Adapter-Carb. Price: $7.99 |
| 15 |
530016441 |
Screw Price: $1.99 |
| 15 |
95-5811 |
PLATE-VALVE Price: $873.34 |
| 16 |
48-1800 |
CYLINDER BLOCK KIT Price: $1,923.22 |
| 16 |
530071750 |
Gasket-Carb. (kit) Price: $8.99 |
| 18 |
545077501 |
Air Box Price: $7.99 |
| 19 |
3257-32 |
KEY-WOODRUFF Price: $2.52 |
| 19 |
530016429 |
Screw Price: $1.99 |
| 20 |
530036575 |
Foam-Air Filter Price: $1.49 |
| 20 |
95-5809 |
BEARING-BALL Price: $146.80 |
| 21 |
32151-83 |
RING-SNAP This part replaces 95-5813. Price: $0.34 |
| 21 |
530057545 |
Cover-Air Box Price: $3.99 |
| 22 |
353-988 |
PLUG-HEX Price: $10.61 |
| 22 |
530035505 |
Ignition Module Price: $29.99 |
| 23 |
285-17 |
PLUG-PIPE Price: $2.59 |
| 23 |
530059758 |
Spacer-Flywheel Price: $4.99 |
| 24 |
530016357 |
Screw Price: $1.99 |
| 24 |
88-8190 |
BEARING-JOURNAL Price: $121.52 |
| 25 |
25-3210 |
SEAL-LIP Price: $23.14 |
| 25 |
545015601 |
Assy-Switch wire Price: $11.99 |
| 26 |
25-2510 |
WASHER-FLAT Price: $2.41 |
| 26 |
530016386 |
Screw Price: $5.99 |
| 27 |
530054834 |
Handle-Starter Price: $1.99 |
| 27 |
88-8180 |
SHAFT-TRUNNION Price: $225.05 |
| 28 |
32151-46 |
RING-RETAINING Price: $8.38 |
| 28 |
545050409 |
Kit - Rope Price: $4.99 |
| 29 |
530055122 |
Assy-Clutch Price: $8.99 |
| 30 |
530094189 |
Washer-Clutch Price: $2.99 |
| 31 |
545016004 |
Assy.-Fan Hsg Price: $15.99 |
| 32 |
545008014 |
KIT STARTER SPRING This part replaces 545054901. Price: $3.99 |
| 33 |
545050407 |
Kit-Starter Pulley Price: $11.99 |
| 33 |
67-8030 |
PLUG ASM This part replaces 88-8210. Price: $29.67 |
| 34 |
545080601 |
Baffle Price: $6.99 |
| 35 |
25-2690 |
DISCONTINUED Price: Call Us |
| 35 |
530015880 |
Screw Price: $1.99 |
| 36 |
530016463 |
Washer-Clutch Flat Price: $1.99 |
| 36 |
93-4133 |
SEAL-LIP This part replaces 67-8060. Price: $37.43 |
| 37 |
530039243 |
Assy-Flywheel Price: $27.99 |
| 37 |
67-8050 |
BEARING-NEEDLE Price: $54.10 |
| 38 |
322-4 |
SCREW-HH Price: $0.35 |
| 39 |
530015941 |
Retain. Ring-C'shaft Price: $1.99 |
| 39 |
95-5812 |
GEROTOR ASM Price: $765.80 |
| 40 |
237-95 |
O-RING Price: $11.97 |
| 40 |
530055728 |
Outer Bearing Price: $6.99 |
| 41 |
530019264 |
Seal-C'shaft Price: $2.99 |
| 42 |
738210101 |
BEARING BALL 6001 This part replaces 530032125. Price: $8.99 |
| 43 |
25-2500 |
SHAFT-TRUNNION Price: $191.66 |
| 44 |
252-82 |
BEARING-NEEDLE Price: $51.31 |
| 44 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 45 |
530071750 |
O-Ring-C'case (kit) Price: $8.99 |
| 46 |
32151-75 |
RING-RETAINING This part replaces 32120-11. Price: $2.51 |
| 47 |
530016386 |
Screw Price: $5.99 |
| 47 |
95-5810 |
SHAFT Price: $874.65 |
| 48 |
25-2450 |
PLATE-SWASH, VARIABLE Price: $896.81 |
| 48 |
530057539 |
Shroud-Rear Price: $7.99 |
| 49 |
32121-91 |
PIN-SPRING Price: $0.81 |
| 49 |
530016445 |
Retainer-Tank Screw Price: $1.99 |
| 50 |
25-2380 |
PLATE-THRUST Price: $32.89 |
| 51 |
110-6341 |
BEARING-ROLLER This part replaces 46-8400. Price: $41.33 |
| 51 |
530057973 |
Assy-Fuel Cap Price: $7.99 |
| 52 |
530069247 |
Kit-Fuel Line (Small) Price: $3.69 |
| 53 |
132-4357 |
SEAL-LIP This part replaces 88-8230. Price: $44.12 |
| 53 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
| 54 |
530095646 |
Assy-Fuel Pickup Price: $2.69 |
| 55 |
323-45 |
SCREW-HH Price: $0.68 |
| 56 |
530150247 |
Assy-Clutch Drum Price: $17.99 |
| 56 |
99-5689 |
CHECK VALVE KIT Price: $83.29 |
| 57 |
49-8520 |
IMPLEMENT RELIEF KIT Price: $195.84 |
| 58 |
49-8510 |
VALVE KIT Price: $195.84 |
| 58 |
530016319 |
Screw-Align Price: $1.99 |
| 59 |
530015772 |
Screw Price: $1.99 |
| 60 |
530016381 |
Screw 12-24 Price: $2.99 |
| 61 |
530016382 |
Nut 12-24 Price: $2.99 |
| 62 |
530015814 |
Screw Price: $1.49 |
