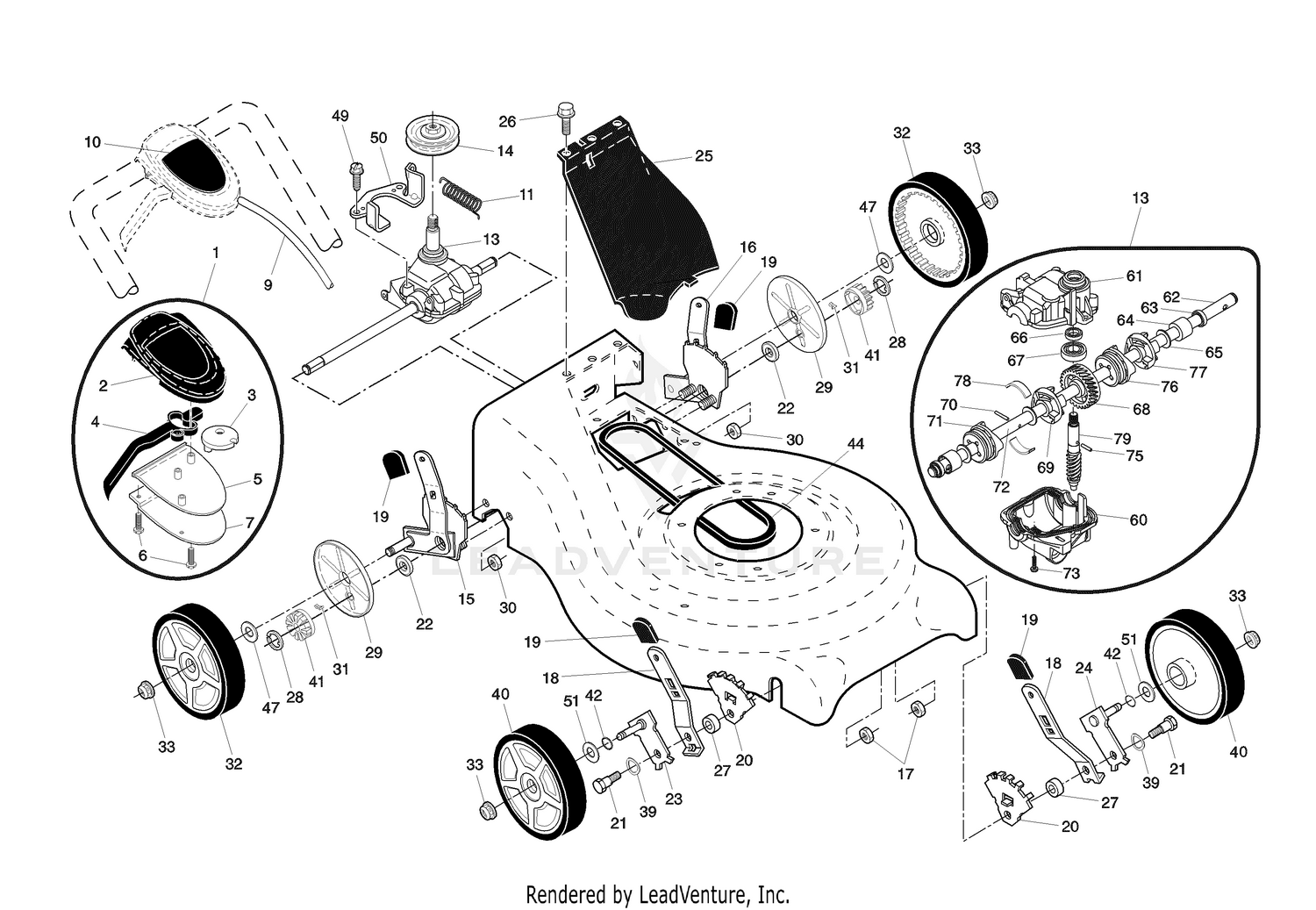

| Ref | Part Number | Description |
|---|
| 2 |
532413542 |
COVER.TOP.DRIVE.CONTROL.BLACK Price: $12.99 |
| 3 |
532406262 |
PULLEY.CAM.DRIVE.CONTROL.EZ Price: $7.99 |
| 4 |
532425583 |
LEVER.SHORT.BLACK.EZ.WALK This part replaces 532190039. Price: $14.99 |
| 5 |
532413541 |
COVER.BOTTOM.DRIVE.CNTRL.BLACK Price: $14.99 |
| 6 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 7 |
532400723 |
BRACKET.DRIVE.CONTROL.MOUNT.BL Price: $4.99 |
| 9 |
532406258 |
CABLE.ASSY.RGD.EZ.AUTO Price: $34.99 |
| 10 |
532189378 |
DECAL, DRIVE Price: $29.99 |
| 11 |
532406558 |
SPRING Price: $6.99 |
| 13 |
532404844 |
TRANSMISSION.21.RWGD Price: $84.99 |
| 14 |
532193443 |
PULLEY.1.PIECE Price: $13.99 |
| 17 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532166785. Price: $4.99 |
| 18 |
532401621 |
SPRING.SELECTOR.5POS.BZP This part replaces 532406428. Price: $4.99 |
| 19 |
532196401 |
KNOB.DELUXE.GRAY Price: $3.99 |
| 20 |
532407494 |
BRACKET.ADJ.5POS.ADS This part replaces 532410594. Price: $3.99 |
| 21 |
596203801 |
Hardware This part replaces 532401638. Price: $3.99 |
| 22 |
587070202 |
BEARING.SUPPORT.ASM This part replaces 532191039. Price: $12.99 |
| 23 |
532401175 |
ARM.ASM.AXLE.5/9.POS.BZP This part replaces 532406690. Price: $5.99 |
| 24 |
532401174 |
ARM.ASM.AXLE.5/9.POS. This part replaces 532406689. Price: $5.99 |
| 25 |
532400783 |
COVER.DRIVE.21.RWGD.MO Price: $9.99 |
| 26 |
532750634 |
SCREW Price: $2.99 |
| 27 |
532401629 |
SPACER.HEIGHT.ADJUSTER Price: $3.99 |
| 28 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 29 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 30 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 31 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 32 |
532405744 |
WHEEL(R).8X1.75.5SPOKE.RAD3.BU This part replaces 532413143. Price: $32.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 34 |
532404835 |
PINIION.14.TOOTH.RGD Price: $5.99 |
| 39 |
532401630 |
WASHER.CURVED.CYLINDRICAL Price: $3.99 |
| 40 |
532197972 |
WHEEL.8X1.75.5SPK.RAD3.GREY This part replaces 532198011. Price: $17.99 |
| 42 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 44 |
532406580 |
BELT.RGD.VS Price: $19.99 |
| 47 |
532067725 |
WASHER FLUT Price: $5.99 |
| 49 |
532163409 |
SCREW Price: $3.99 |
| 50 |
532404832 |
BRACKET.BELT.GUIDE.VS.RGD.BZP This part replaces 532413104. Price: $3.99 |
| 51 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 60 |
532412747 |
CASE, LOWER Price: $17.99 |
| 61 |
532412736 |
CASE UPPER Price: $17.99 |
| 62 |
532412745 |
Shaft, Output, Long Price: Call Us |
| 63 |
532183508 |
SEAL.OUTPUT.SHAFT Price: $9.99 |
| 64 |
532183511 |
BUSHING Price: $4.99 |
| 65 |
532183509 |
WASHER Price: $3.99 |
| 66 |
532183514 |
SEAL INPUT SHAFT Price: $6.99 |
| 67 |
532183506 |
BEARING Price: $5.99 |
| 68 |
532412742 |
GEAR 28 TEETH Price: $6.99 |
| 69 |
532412739 |
DOG.FIXED.LH.32003 Price: $3.99 |
| 70 |
532412741 |
PIN 7 33732 Price: $7.99 |
| 71 |
532412740 |
DOG.MOVEABLE.LH.32005 Price: $4.99 |
| 72 |
532412738 |
Shaft, Output, Short Price: Call Us |
| 73 |
532183513 |
SCREW Price: $3.99 |
| 75 |
532412746 |
PIN 3.50.337 - 33733 Price: $7.99 |
| 76 |
532412744 |
DOG.FIXED.RH.32004 Price: $3.99 |
| 77 |
532412743 |
DOG.MOVEABLE.RH.32006 Price: $7.99 |
| 78 |
532410731 |
SPRING LEAF Price: $2.99 |
