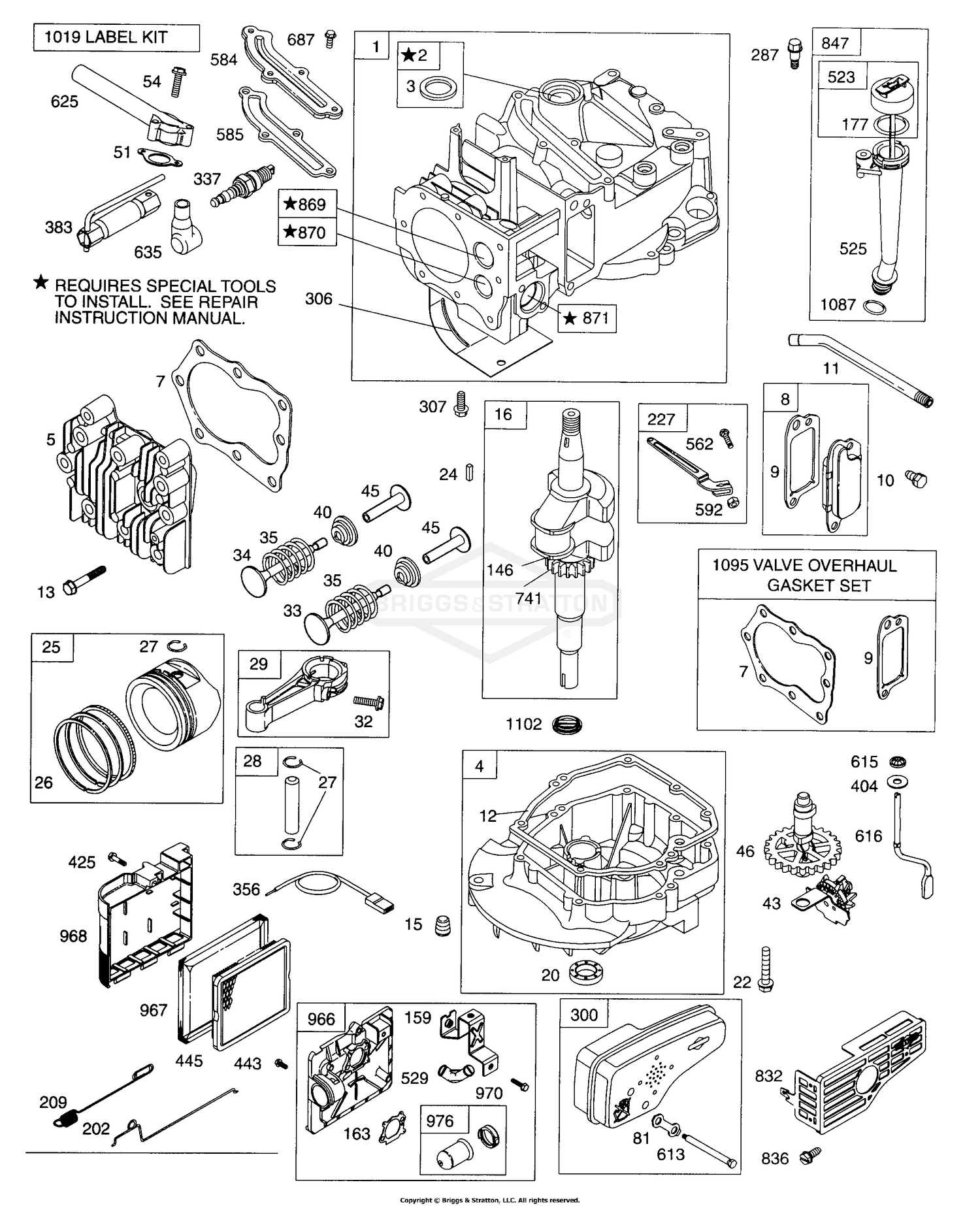

| Ref | Part Number | Description |
|---|
| 1 |
592645 |
CYLINDER ASSEMBLY This part replaces 493260. Price: $261.87 |
| 2 |
796961 |
KIT, Bushing/Seal This part replaces 293708. Price: $18.42 |
| 4 |
84007233 |
SUMP, Engine This part replaces 493279. Price: $100.09 |
| 5 |
594989 |
HEAD-CYLINDER This part replaces 214368. Price: $48.83 |
| 8 |
590395 |
BREATHER ASSEMBLY This part replaces 495786. Price: $13.17 |
| 11 |
691781 |
TUBE-BREATHER Price: $9.64 |
| 15 |
691680 |
PLUG, Oil Drain This part replaces 94720. Price: $5.05 |
| 16 |
797018 |
CRANKSHAFT This part replaces 498565. Price: $158.88 |
| 24 |
222698S |
KEY, Flywheel This part replaces 222698. Price: $2.29 |
| 25 |
499430 |
Piston Assy. (.010" O.S.) Price: Call Us |
| 25 |
499432 |
Piston Assy. (.030" O.S.) Price: Call Us |
| 25 |
799064 |
PISTON ASSEMBLY This part replaces 499431. Price: $107.10 |
| 26 |
499426 |
SET, Ring Price: Call Us |
| 26 |
499427 |
Ring Set (.020" O.S.) Price: $42.25 |
| 26 |
499428 |
SET, Ring Price: Call Us |
| 27 |
691866 |
LOCK-PISTON PIN This part replaces 263190. Price: $4.10 |
| 28 |
499423 |
PIN-PISTON/STD Price: $8.00 |
| 29 |
590406 |
PISTON ASSEMBLY This part replaces 499424. Price: $77.67 |
| 33 |
590394 |
VALVE-EXHAUST This part replaces 262651. Price: $21.30 |
| 34 |
590393 |
VALVE-INTAKE This part replaces 262652. Price: $19.40 |
| 35 |
691270 |
SPRING, Valve This part replaces 262224. Price: $4.82 |
| 40 |
692194 |
RETAINER, Valve This part replaces 93312. Price: $5.52 |
| 43 |
691997 |
SLINGER, Governor/Oil This part replaces 493737. Price: $22.83 |
| 45 |
690548 |
TAPPET, Valve This part replaces 262204. Price: $8.46 |
| 46 |
691449 |
CAMSHAFT This part replaces 498275. Price: $64.72 |
| 81 |
691740 |
LOCK, Muffler Screw This part replaces 223664. Price: $4.82 |
| 146 |
690979 |
KEY, Woodruff This part replaces 94388. Price: $2.95 |
| 159 |
795259 |
BASE-AIR CLEANER PRIM This part replaces 224815. Price: $29.05 |
| 202 |
691829 |
LINK, Mechanical Governor This part replaces 262579. Price: $7.52 |
| 209 |
693187 |
SPRING, Governor Price: $9.41 |
| 227 |
690783 |
LEVER, Gov Control This part replaces 492349. Price: $13.76 |
| 300 |
692038 |
MUFFLER This part replaces 497838. Price: $22.83 |
| 306 |
690450 |
PULLEY, STACK This part replaces 224324. Price: $9.56 |
| 337 |
796112S |
PLUG, Spark This part replaces 802592. Price: $3.78 |
| 356 |
692390 |
Wire - Stop This part replaces 497833. Price: $8.69 |
| 383 |
89838S |
WRENCH, Spark Plug This part replaces 89838. Price: $3.70 |
| 445 |
491588S |
FILTER, A/C Cartridge This part replaces 491588. Price: $6.39 |
| 523 |
499621 |
DIPSTICK This part replaces 495264. Price: $15.17 |
| 525 |
495265 |
Tube-Oil Fill Price: $15.79 |
| 529 |
691923 |
Grommet This part replaces 281299. Price: $8.23 |
| 584 |
697734 |
COVER-BREA PASSAGE This part replaces 224328. Price: $8.11 |
| 615 |
690340 |
RETAINER, Governor Shaft This part replaces 94474. Price: $3.87 |
| 616 |
698801 |
CRANK, Governor This part replaces 263175. Price: $9.53 |
| 625 |
794305 |
MANIFOLD, Intake This part replaces 497465. Price: $14.39 |
| 635 |
66538S |
BOOT, Spark PLug This part replaces 66538. Price: $3.17 |
| 741 |
691830 |
GEAR-TIMING This part replaces 262598. Price: $15.41 |
| 832 |
593875 |
GUARD, Muffler This part replaces 499034. Price: $49.42 |
| 847 |
692047 |
DIPSTICK/TUBE ASSY This part replaces 495263. Price: $13.00 |
| 869 |
691155 |
SEAT, Valve This part replaces 213512. Price: $7.88 |
| 870 |
690380 |
SEAT, Valve This part replaces 213513. Price: $5.45 |
| 966 |
795259 |
BASE-AIR CLEANER PRIM This part replaces 496116. Price: $29.05 |
| 967 |
493537S |
FILTER, Air Cleaner Foam This part replaces 493537. Price: $5.80 |
| 968 |
692298 |
Cover - Air Cleaner This part replaces 281340. Price: $19.53 |
| 976 |
694395 |
PRIMER, Carburetor This part replaces 496115. Price: $3.74 |
| 1019 |
494256 |
Label Kit Price: Call Us |
| 1095 |
498528 |
Gasket Set-Valve Overhaul Price: $22.34 |
