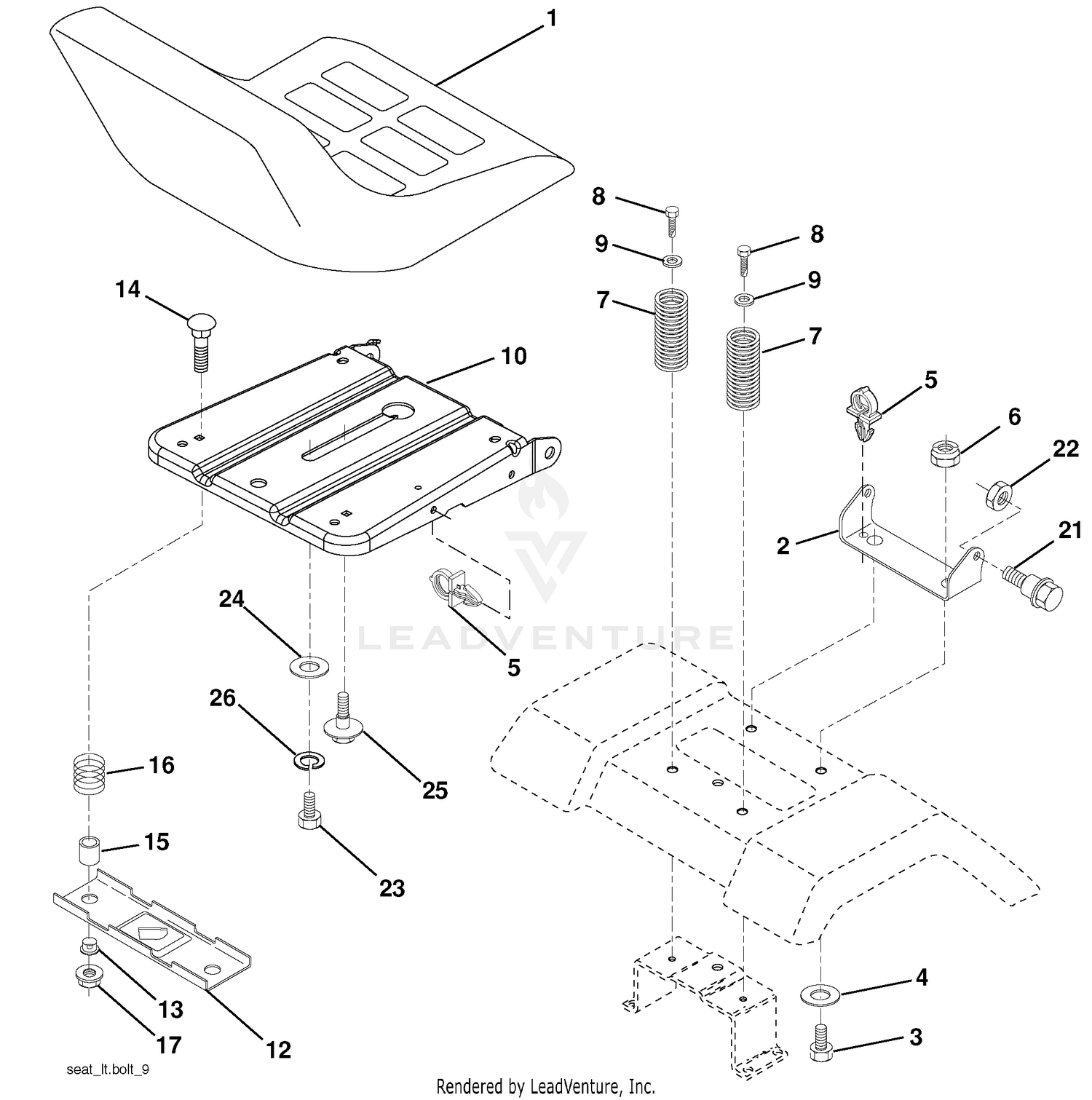

| Ref | Part Number | Description |
|---|
| 1 |
401042 |
Seat Price: Call Us |
| 2 |
140551 |
Bracket Seat Pivot Price: Call Us |
| 2 |
99-7570 |
BEARING-ROLLER, TAPER Price: $61.91 |
| 3 |
71110616 |
Bolt Hex 3/8-16 x 1 Price: Call Us |
| 3 |
95-7534 |
CASE-BEARING Price: $176.21 |
| 4 |
106-1065 |
O-RING This part replaces 99-7571. Price: $9.02 |
| 4 |
19131610 |
Washer 13/32 x 1 x10 Ga. Price: Call Us |
| 5 |
145006 |
Clip Push-In Hinged Price: Call Us |
| 5 |
99-7572 |
COLLAR-SEAL, OIL Price: $21.01 |
| 6 |
106-1066 |
O-RING This part replaces 99-7573. Price: $5.71 |
| 6 |
73800600 |
Nut Lock Hex w/Ins 3/8 - 16 Price: Call Us |
| 7 |
124181X |
Spring Seat Cprsn 2 250 Blk Zi Price: Call Us |
| 7 |
99-7574 |
SEAL-OIL Price: $4.42 |
| 8 |
17000616 |
Screw 3/8-16 x 1.5 Price: Call Us |
| 8 |
99-7559 |
WASHER-LOCK Price: $9.82 |
| 9 |
19131614 |
Washer 13/32 x 1 x 14 Ga. Price: Call Us |
| 9 |
99-7560 |
NUT-LOCK Price: $27.76 |
| 10 |
195530 |
Pan Asm. Seat Price: Call Us |
| 10 |
99-7550 |
SHIM 0.1 Price: $4.34 |
| 10 |
99-7551 |
SHIM 0.2 Price: $4.55 |
| 11 |
95-7533 |
CASE-GEAR Price: $289.33 |
| 12 |
174648 |
Bracket Pnt Mounting Switch Price: Call Us |
| 12 |
99-7575 |
BOLT Price: $4.00 |
| 13 |
121248X |
Bushing Snap Blk Nyl Price: Call Us |
| 13 |
98-7735 |
STUD This part replaces 100-2556. Price: $1.36 |
| 14 |
72050412 |
Bolt Rdhd Sht Nk 1/4 - 20 x 1 -1/2 Price: Call Us |
| 14 |
99-7527 |
WASHER-SPRING Price: $1.02 |
| 15 |
134300 |
Spacer Split .28 x .96 Price: Call Us |
| 15 |
99-7526 |
NUT Price: $1.29 |
| 16 |
121250X |
Spring Cprsn Price: Call Us |
| 16 |
95-7541 |
PLATE-COVER Price: $89.04 |
| 17 |
123976X |
Nut Lock 1/4 Lge Flg Price: Call Us |
| 21 |
171852 |
Bolt Shoul der 5/16-18 unc-2A Price: Call Us |
| 22 |
73800500 |
Nut Lock Hex w/Ins 5/16 - 18 Price: Call Us |
| 23 |
71110814 |
Bolt Hex Price: Call Us |
| 24 |
19171912 |
Washer 17/32 x 1-3/16 x 12 Ga. Price: Call Us |
| 25 |
127018X |
Bolt Shoul der 5/16-18 x .62 Price: Call Us |
