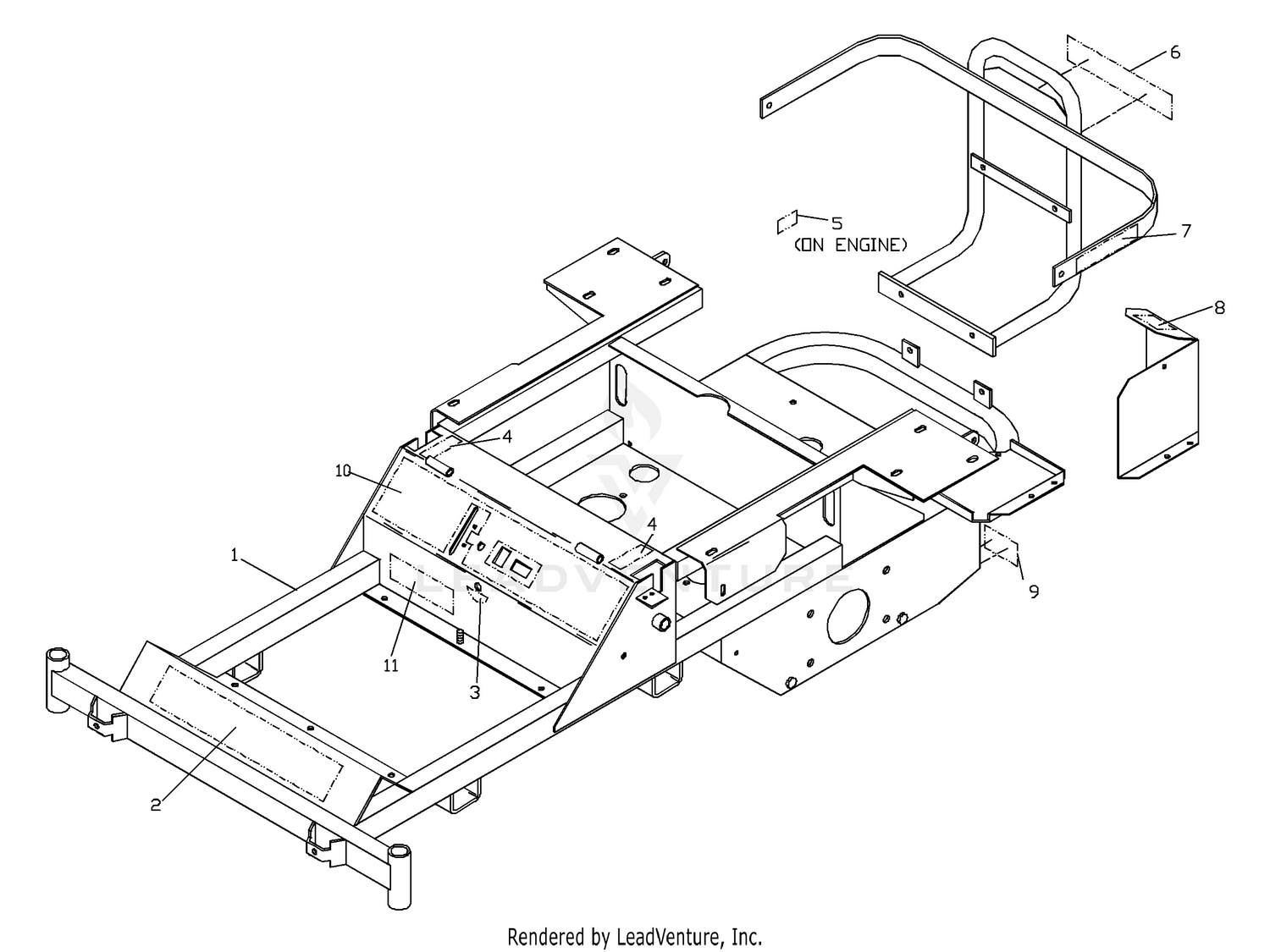

| Ref | Part Number | Description |
|---|
| 1 |
539104602 |
FRAME W/DECALS Price: $1,449.19 |
| 1 |
98-0647 |
HOSE-HYD, TRACTION, RH (LOWER) Price: $162.42 |
| 2 |
237-65 |
O-RING Price: $2.50 |
| 2 |
539104804 |
DECAL, HUSQVARNA 15.5" Price: $10.99 |
| 3 |
539102670 |
DECAL, FUEL VALVE Price: $2.99 |
| 3 |
70-7130 |
LINE-TUBE Price: $141.98 |
| 4 |
589283001 |
DECAL.ZTR.MOTCONTRL.SYMBOL.HUS This part replaces 539103333. Price: $3.99 |
| 4 |
98-0646 |
HOSE-HYD, TRACTION, RH (UPPER) Price: $184.17 |
| 5 |
539100128 |
DECAL, EXHAUST Price: $1.99 |
| 5 |
83-1200 |
TUBE-TRACTION, LH (LOWER) Price: $110.49 |
| 6 |
107-9519 |
HYD HOSE ASM This part replaces 98-2151. Price: $83.34 |
| 6 |
539104787 |
DECAL, HUSQVARNA LOGO 9.25" Price: $10.99 |
| 7 |
237-30 |
O-RING Price: $2.50 |
| 7 |
539102669 |
DECAL, BATTERY Price: $1.65 |
| 8 |
340-101 |
FITTING-HYD, 45 DEG Price: $31.00 |
| 8 |
596024201 |
DECALS.WARN.CA.SPKARREST/PROP This part replaces 539101881. Price: $1.99 |
| 9 |
237-79 |
O-RING Price: $5.46 |
| 9 |
539100361 |
DECAL, DANGER Price: $2.31 |
| 10 |
539103581 |
CONSOLE DECAL Price: $13.87 |
| 10 |
98-0649 |
HOSE-HYD Price: $67.35 |
| 11 |
237-21 |
O-RING Price: $0.70 |
| 12 |
340-138 |
FITTING-HYD, 45 DEG Price: $31.15 |
| 13 |
340-18 |
FITTING-HYD, 90 DEG Price: $38.93 |
| 14 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 15 |
237-42 |
O-RING Price: $2.78 |
| 16 |
105-3800 |
CONTROL VALVE ASM This part replaces 84-2203. Price: $4,089.31 |
| 17 |
93-2555 |
FITTING-BODY Price: $304.22 |
| 18 |
92-9767 |
HOSE Price: $69.61 |
| 19 |
237-21 |
O-RING Price: $0.70 |
| 20 |
88-9700 |
HOSE-HYD Price: $64.30 |
| 21 |
83-1690 |
HOSE-HYD Price: $68.48 |
| 22 |
98-2150 |
HOSE-HYD Price: $75.17 |
| 23 |
304-61 |
CLAMP-HOSE Price: $6.08 |
| 24 |
32128-20 |
NUT-HF Price: $0.99 |
| 27 |
83-1670 |
FITTING ASM Price: $128.24 |
| 28 |
95-5986 |
HYD HOSE ASM Price: $77.25 |
| 30 |
83-1680 |
HOSE-HYD Price: $39.99 |
| 31 |
63-3850 |
HOSE ASM Price: $83.26 |
| 32 |
237-80 |
O-RING Price: $6.10 |
| 33 |
340-16 |
FITTING-HYD, 90 DEG Price: $54.23 |
| 34 |
237-58 |
O-RING Price: $2.18 |
| 35 |
100-6431 |
TUBE-RETURN This part replaces 63-4040. Price: $176.26 |
| 36 |
95-5987 |
HOSE-HYD Price: $68.07 |
| 37 |
63-4080 |
FITTING-MANIFOLD Price: $236.16 |
| 38 |
237-81 |
O-RING Price: $2.76 |
| 39 |
322-14 |
SCREW-HH Price: $1.01 |
| 40 |
63-4020 |
TUBE-HYD Price: $176.67 |
| 41 |
63-4030 |
TUBE-HYD Price: $148.62 |
| 42 |
63-4050 |
FITTING-HYD Price: $137.82 |
| 43 |
71-0990 |
ORIFICE ( .0465 ONE-WAY) Price: $56.83 |
| 46 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 47 |
2412-41 |
CLAMP-R Price: $4.82 |
| 48 |
98-0648 |
HYD HOSE ASM Price: $166.79 |
| 49 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 50 |
12-3270 |
SCREW Price: $3.09 |
| 51 |
98-2153 |
HYD HOSE ASM Price: $126.10 |
| 52 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 53 |
115-5297 |
KIT-SERVICE, NEEDLE VALVE This part replaces 93-2554. Price: $86.49 |
