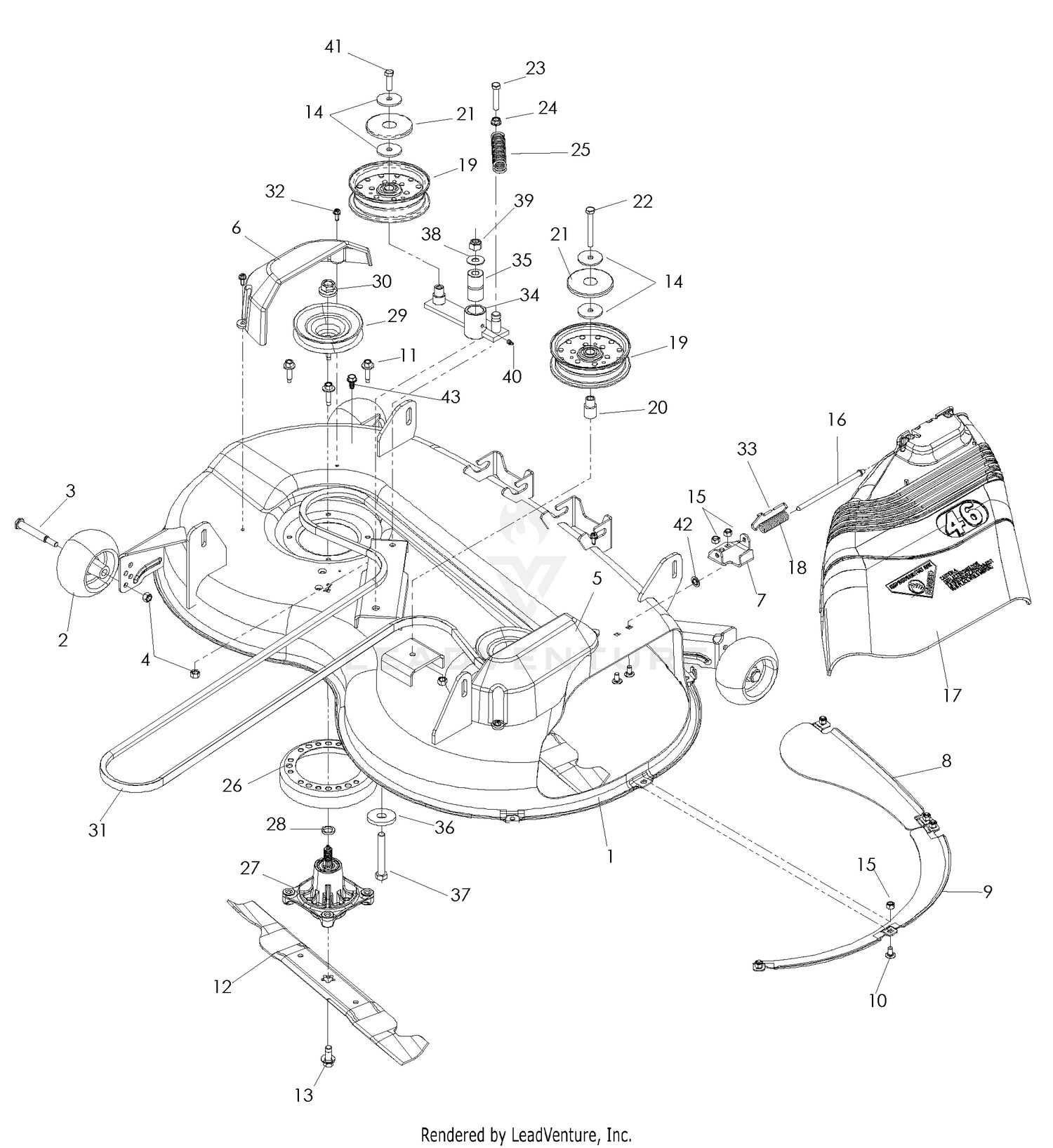

| Ref | Part Number | Description |
|---|
| 1 |
539131487 |
DECK W/DECALS 46" ORANGE Price: $899.99 |
| 1 |
Model |
VSQ-411 TYPE 60005A S04641E Engine Price: Call Us Model VSQ-411 |
| 2 |
532133957 |
WHEEL GAGE DONUT This part replaces 539107610. Price: $11.99 |
| 2 |
70-1690 |
DISCONTINUED Price: Call Us |
| 3 |
2412-119 |
CLAMP-HOSE, WORM DRIVE Price: $1.83 |
| 3 |
596434404 |
Bolts This part replaces 539107608. Price: $4.99 |
| 4 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 4 |
70-1670 |
HOSE-HEAT Price: $73.26 |
| 5 |
532405506 |
COVER.MANDREL.RH.46" Price: $19.99 |
| 5 |
67-8940 |
DISCONTINUED Price: Call Us |
| 6 |
532405507 |
COVER.MANDREL.LH.46" Price: $19.99 |
| 6 |
E630173-S71M |
Lockwasher Price: Call Us |
| 7 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 7 |
E602187-S82 |
Bolt Price: Call Us |
| 8 |
531170601 |
SERVICE KIT BAFFLE CENT This part replaces 532403149. Price: $9.99 |
| 8 |
70-2050 |
HOSE-BREATHER Price: $36.69 |
| 9 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 9 |
531170701 |
SERVICE KIT BAFFLE FRONT This part replaces 532403150. Price: $11.99 |
| 10 |
2412-39 |
CLAMP-R Price: $1.70 |
| 10 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99 |
| 11 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 539107630. Price: $3.99 |
| 11 |
67-9130-03 |
PIPE-INLET, MUFFLER This part replaces 67-9130. Price: $10.11 |
| 12 |
2112-6 |
CLAMP-MUFFLER Price: $7.53 |
| 13 |
5-0652 |
SPACER Price: $5.35 |
| 13 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 14 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 14 |
596917301 |
Washers This part replaces 539111897. Price: $4.99 |
| 15 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 15 |
67-8420-03 |
BRACKET This part replaces 67-8420. Price: $32.98 |
| 16 |
595297001 |
Rods This part replaces 539110462. Price: $4.99 |
| 16 |
67-9120 |
MUFFLER Price: $619.96 |
| 17 |
532405357 |
SHIELD.DEFLECTOR.MOWER.46"BLAC Price: $49.99 |
| 17 |
N605799-S2 |
Bolt Price: Call Us |
| 18 |
539107609 |
TORSION SPRING Price: $4.99 |
| 18 |
67-8480-03 |
MOUNT-ENGINE ASM This part replaces 67-8480. Price: $82.18 |
| 19 |
32128-37 |
NUT-HF Price: $3.63 |
| 19 |
539103257 |
IDLER PULLEY Price: $49.99 |
| 20 |
131-1821 |
MOUNT-ENGINE This part replaces 53-9680. Price: $105.39 |
| 20 |
539103295 |
IDLER BUSHING Price: $12.99 |
| 21 |
53-9480 |
WASHER-SNUBBER Price: $3.87 |
| 21 |
539108450 |
TOP DUST CAP Price: $4.99 |
| 22 |
324-11 |
SCREW-HH Price: $3.05 |
| 22 |
539106492 |
HEX SCREW 3/8-20 X 2.75 Price: $2.99 |
| 23 |
539990588 |
HCS 3/8C X 2 Price: $3.99 |
| 23 |
N80057-S2 |
Bolt Price: Call Us |
| 24 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 24 |
D2RY-6379-4 |
Bolt Price: Call Us |
| 25 |
539101977 |
SPRING Price: $11.99 |
| 25 |
67-8440 |
PLATE-ENGINE SUPPORT, REAR Price: $339.53 |
| 26 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 539107518. Price: $6.99 |
| 26 |
D8RZ-6384A |
Ring Gear-Flywheel Price: Call Us |
| 27 |
587125201 |
MANDREL.W/SPCR.BRG.SHRT.NONRVL This part replaces 539107515. Price: $49.99 |
| 27 |
89BM-6375-AA |
Flywheel Assembly (Incl. Ref. #26) Price: Call Us |
| 28 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 539107520. Price: $3.99 |
| 28 |
N6200482-S2 |
Nut Price: Call Us |
| 29 |
588586601 |
PULLEY.MANDREL.46" This part replaces 539113962. Price: $29.99 |
| 29 |
E804627-S76 |
Stud Price: Call Us |
| 30 |
596134801 |
Nuts This part replaces 539107590. Price: $1.00 |
| 30 |
NG20481-S2 |
Nut Price: Call Us |
| 31 |
539113917 |
BELT, DECK Price: $69.99 |
| 31 |
EBJI-9430-CA |
Manifold-Exhaust Price: Call Us |
| 32 |
532137729 |
SCREW.1/4-20X5/8 This part replaces 539107631. Price: $3.99 |
| 32 |
89BM-9448-BA |
Gasket-Manifold Price: Call Us |
| 33 |
532105304 |
CAP-SLEEVE LT This part replaces 539107627. Price: $3.99 |
| 33 |
E7JI-6A312-AA |
Pulley Price: Call Us |
| 34 |
539103230 |
IDLER ARM Price: $159.99 |
| 34 |
E7JI-6N300-AA |
Locking Ring Set Price: Call Us |
| 35 |
539103427 |
PIVOT BUSHING Price: $7.99 |
| 35 |
E7JI-6378-AA |
Compression Ring Price: Call Us |
| 36 |
596437501 |
Washers This part replaces 539102243. Price: $8.99 |
| 36 |
E7JI-6K340-AA |
Bolt Price: Call Us |
| 37 |
539103433 |
HCS 1/2C X 3 1/4 Price: $5.99 |
| 38 |
595316401 |
Washers This part replaces 539990550. Price: $2.99 |
| 39 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 40 |
596899901 |
GSPW Zerks This part replaces 539976998. Price: $2.99 |
| 41 |
539976941 |
HCS 3/8C X 1 1/4 GR5 Price: $3.99 |
| 42 |
532110452 |
NUT PUSH M This part replaces 539107626. Price: $2.99 |
