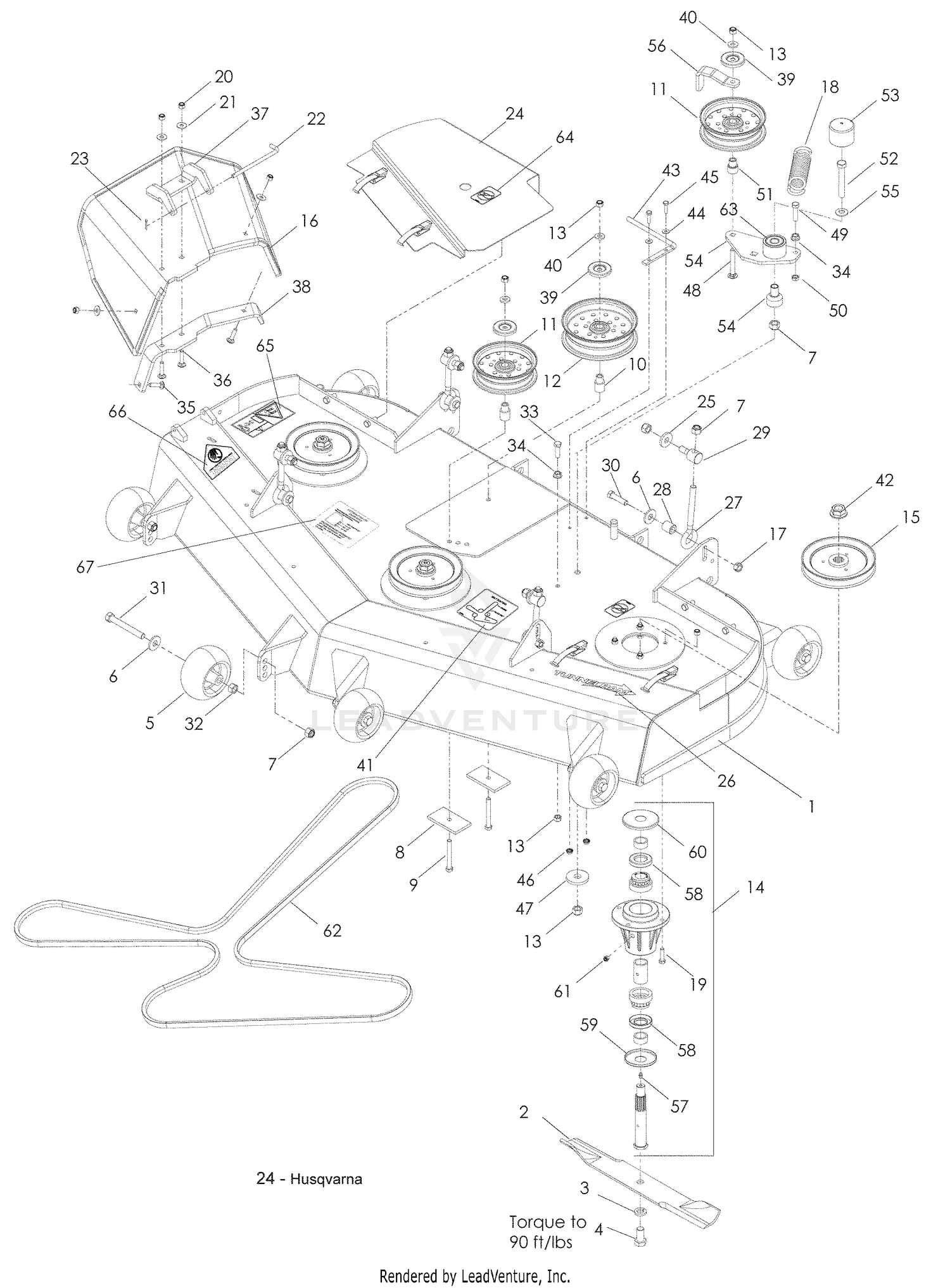

| Ref | Part Number | Description |
|---|
| 1 |
539111378 |
DECK W/DECALS 61" HUS Price: $5,499.99 |
| 1 |
69-1180 |
ARMREST Price: $166.08 |
| 2 |
32128-19 |
NUT-HF Price: $0.99 |
| 2 |
539101733 |
BLADE OEM 21" (61" DECK) Price: $18.99 |
| 3 |
323-9 |
SCREW-HH Price: $1.29 |
| 3 |
539990333 |
LOCKWASHER 5/8 Price: $2.99 |
| 4 |
539103299 |
HCS 5/8F X 1 1/4 Price: $5.99 |
| 4 |
69-0770 |
BRACKET-ARM, RH Price: $117.82 |
| 5 |
3234-14 |
SCREW-HHF This part replaces 3234-23. Price: $0.61 |
| 5 |
532133957 |
WHEEL GAGE DONUT This part replaces 539107610. Price: $11.99 |
| 6 |
595316401 |
Washers This part replaces 539109554. Price: $2.99 |
| 7 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 8 |
596770301 |
Washers This part replaces 539103303. Price: $4.99 |
| 9 |
539101341 |
HCS 3/8C X 3 Price: $4.99 |
| 10 |
539103295 |
IDLER BUSHING Price: $12.99 |
| 11 |
539103257 |
IDLER PULLEY Price: $49.99 |
| 13 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 15 |
539112125 |
PULLEY, 61 Price: $29.99 |
| 16 |
539130779 |
CHUTE, RUBBER DISCHARGE 52/61" Price: $59.99 |
| 17 |
539990839 |
NUT 7/16C CENTERLOCK Price: $2.99 |
| 18 |
539130690 |
SPRING Price: $9.99 |
| 19 |
539990627 |
HCS 5/16C X 1 1/4 Price: $3.99 |
| 20 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 21 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 22 |
539131813 |
PIN, CHUTE PIVOT Price: $6.99 |
| 23 |
596029501 |
Pins This part replaces 539990365. Price: $2.99 |
| 24 |
510202101 |
SUB ASM, 61 BELT SHIELD RH Price: $119.99 |
| 25 |
539115550 |
WASHER-.533IDX1.37OD Price: $3.99 |
| 26 |
539111561 |
DECAL, TUNNEL RAM 8" Price: $6.99 |
| 27 |
539119227 |
BOLT, EYE Price: $14.99 |
| 28 |
539114404 |
SPACER Price: $6.99 |
| 29 |
505256501 |
SWIVEL, DECK HEIGHT ADJ Price: $14.99 |
| 30 |
596438501 |
Bolts This part replaces 539108073. Price: $2.99 |
| 31 |
539108366 |
HCS 1/2-13 X 4 GR 5 ZD Price: $5.99 |
| 32 |
539990258 |
NUT HEX 1/2 Price: $3.99 |
| 33 |
539976941 |
HCS 3/8C X 1 1/4 GR5 Price: $3.99 |
| 34 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 35 |
596671401 |
Bolts This part replaces 539100472. Price: $3.99 |
| 36 |
596030801 |
Bolts This part replaces 539102933. Price: $3.99 |
| 37 |
539130923 |
PIVOT BRACKET - RUBBER CHUTE Price: $37.99 |
| 38 |
539130925 |
BRACKET, REINF-CHUTE Price: $139.99 |
| 39 |
510254502 |
SHIELD DUST This part replaces 510254501. Price: $3.99 |
| 40 |
522023401 |
WASHER, 3/8 THICK Price: $2.99 |
| 41 |
539112620 |
DECAL, BELT ROUTING Price: $4.99 |
| 42 |
598490501 |
Nuts This part replaces 539130653. Price: $7.99 |
| 43 |
522629801 |
BELT GUIDE Price: $7.99 |
| 44 |
595316401 |
Washers This part replaces 539990550. Price: $2.99 |
| 45 |
539990548 |
HCS 1/4 X 1 Price: $2.99 |
| 46 |
539108735 |
NUT 1/4-20 HEX FLG LK ZD Price: $3.99 |
| 47 |
596437501 |
Washers This part replaces 539102243. Price: $8.99 |
| 48 |
596581801 |
Bolts This part replaces 539130235. Price: $2.99 |
| 49 |
539107042 |
HCS 3/8-16 X 1-1/2 Price: $2.99 |
| 50 |
596433501 |
NUT NUT.3/8-16.HEX.JAM.Z 3/8-1 This part replaces 539109332. Price: $2.99 |
| 51 |
539130242 |
BUSHING, IDLER Price: $2.99 |
| 52 |
539103433 |
HCS 1/2C X 3 1/4 Price: $5.99 |
| 53 |
539114823 |
CAP, VINYL Price: $2.99 |
| 54 |
510206301 |
PIVOT, BEARING Price: $3.99 |
| 55 |
596581701 |
Washers This part replaces 539115528. Price: $2.99 |
| 56 |
539114981 |
GUIDE, BELT Price: $19.99 |
| 57 |
596623501 |
Zerks This part replaces 539101474. Price: $2.99 |
| 58 |
539108754 |
SHAFT SEAL Price: $6.99 |
| 59 |
539108449 |
BOTTOM DUST CAP Price: $3.99 |
| 60 |
539108450 |
TOP DUST CAP Price: $4.99 |
| 61 |
539977326 |
PLUG-VENTED Price: $8.99 |
| 62 |
510201301 |
BELT, DECK 61 Price: $119.99 |
| 63 |
539130391 |
ARM-IDLER W/BRG Price: $37.99 |
| 64 |
581724301 |
DECAL.DECK.6MIL.EURO.NOSTEP This part replaces 539105743. Price: $3.99 |
| 65 |
539105746 |
DECAL, EURO SEVERING Price: $2.99 |
| 66 |
539913010 |
DECAL, CPSC Price: $3.99 |
| 510202201 |
SUB |
ASM, 61 BELT SHIELD LH Price: $99.99 510202201 |
