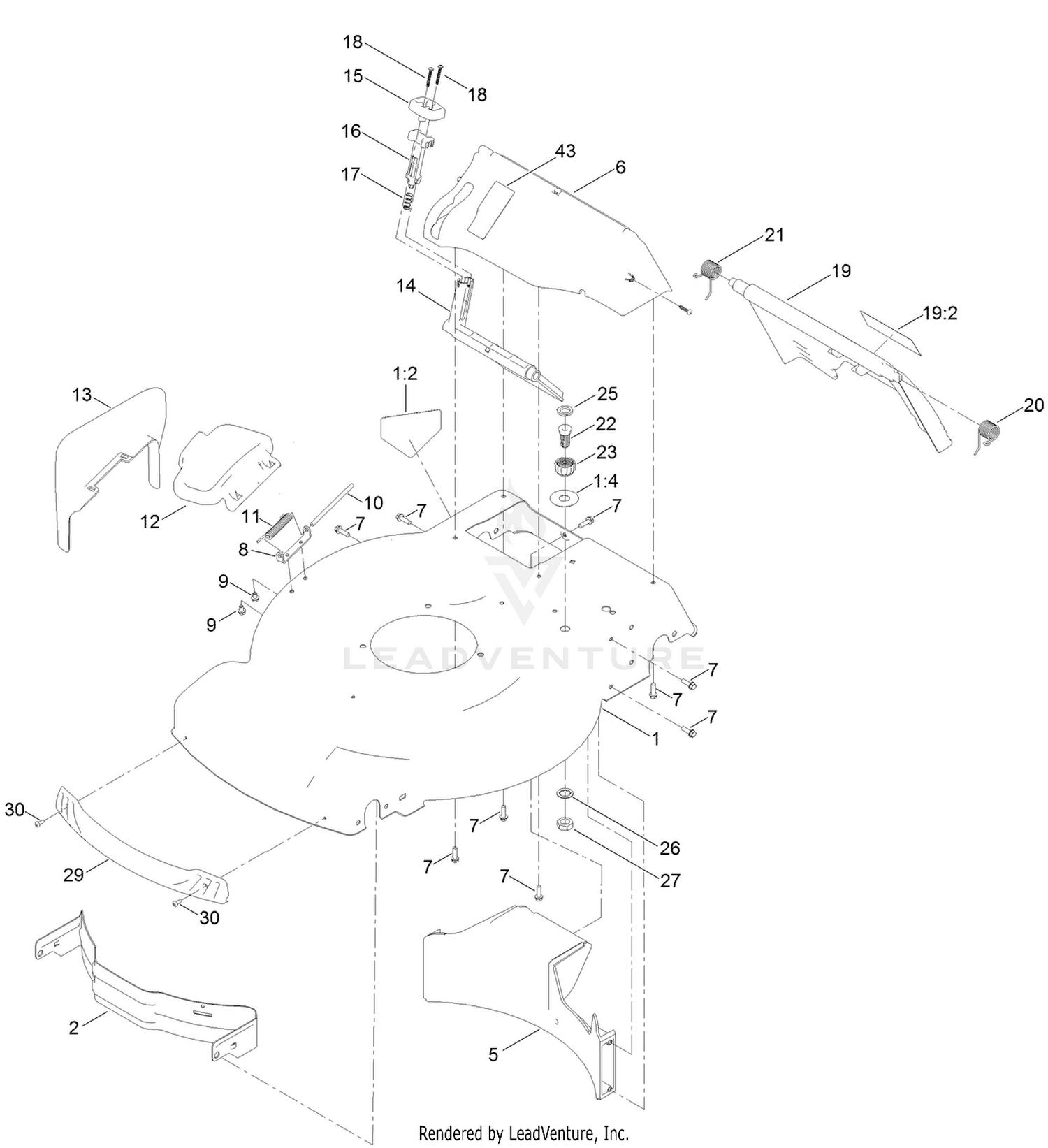

| Ref | Part Number | Description |
|---|
| 1 |
130-2389 |
HOUSING ASM Price: $150.74 |
| 2 |
114-7963-01 |
BAFFLE-FRONT Price: $24.42 |
| 5 |
139-8982 |
BAFFLE-REAR This part replaces 114-7961. Price: $10.31 |
| 6 |
136-5882 |
CHUTE-RECYCLE Price: $13.33 |
| 7 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 8 |
112-6416 |
BRACKET-COVER Price: $1.88 |
| 9 |
137-4795 |
SCREW This part replaces 99-8445. Price: $0.29 |
| 10 |
136-8672 |
PIN-HINGE, DEFLECTOR This part replaces 99-5291. Price: $1.99 |
| 11 |
99-5293 |
SPRING-TORSION Price: $9.99 |
| 12 |
115-8449 |
DEFLECTOR-SIDE Price: $6.22 |
| 13 |
115-8447 |
CHUTE-DISCHARGE, SIDE Price: $11.31 |
| 14 |
114-7960 |
DEFLECTOR-RECYCLE Price: $9.41 |
| 15 |
114-7958 |
KNOB-RECYCLE Price: $2.38 |
| 16 |
114-7959 |
LATCH-RECYCLE Price: $3.38 |
| 17 |
117-1031 |
SPRING-COMPRESSION Price: $1.90 |
| 18 |
32104-120 |
SCREW-PPH Price: $1.49 |
| 19 |
137-9139 |
REAR DOOR ASM Price: $15.80 |
| 20 |
115-2859 |
SPRING-TORSION Price: $3.33 |
| 21 |
114-7924 |
SPRING-TORSION Price: $2.22 |
| 22 |
112-6400 |
PORT-WASHOUT Price: $3.06 |
| 23 |
112-6401 |
COUPLING-HOSE, WASHOUT PORT Price: $1.61 |
| 25 |
112-6438 |
WASHER-SEAL, WASHOUT PORT Price: $1.19 |
| 26 |
3254-5 |
WASHER-LOCK Price: $0.49 |
| 27 |
3218-6 |
NUT-JAM Price: $0.61 |
| 29 |
114-7987 |
BUMPER Price: $8.08 |
| 30 |
105-6849 |
SCREW-FORMING, THREAD Price: $0.60 |
