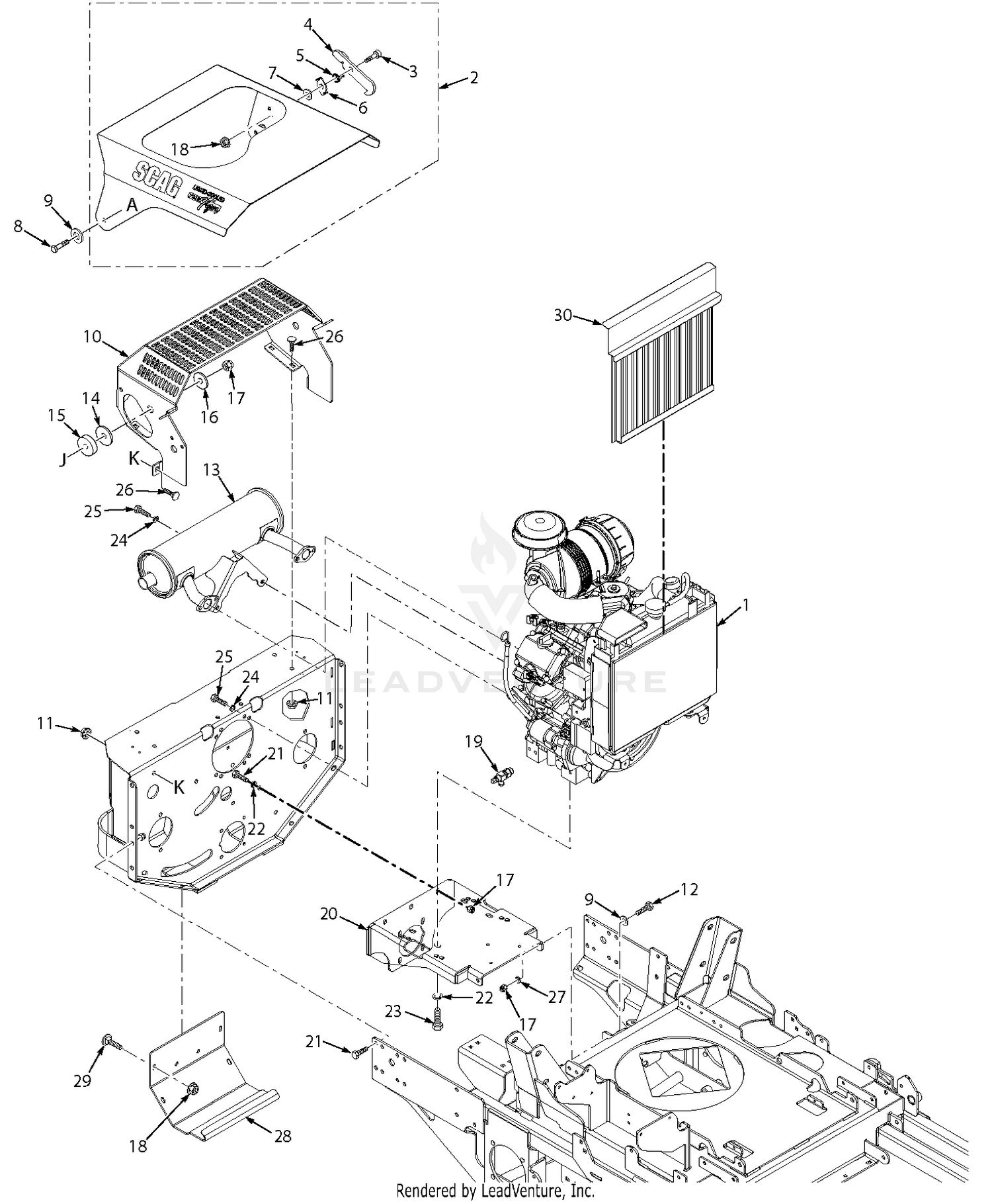

| Ref | Part Number | Description |
|---|
| 2 |
462904 |
Hood Assy., STTII (FD791 & FD850) - Fuel Injected This part replaces 462902. Price: Call Us |
| 3 |
04009-07 |
Bolt, Shoulder 3/8 x 1/2 Price: Call Us |
| 4 |
424633 |
Latch, Hood Price: Call Us |
| 5 |
483507 |
Spring, Hood Latch Price: Call Us |
| 6 |
424634 |
Lock, Hood Latch Price: Call Us |
| 7 |
04040-05 |
Flatwasher, 3/8-.406 x .812 x .065 Price: Call Us |
| 8 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" Price: Call Us |
| 9 |
04041-07 |
Flatwasher, 3/8-.406 x .812 x .065 Price: Call Us |
| 10 |
427561 |
Guard, Muffler Price: Call Us |
| 11 |
04013-04 |
Nut, Flange Elastic Stop Nut, 5/16-18 Price: Call Us |
| 12 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 13 |
482699 |
Muffler, Kawasaki Price: Call Us |
| 14 |
483471 |
Disc, Anti-Friction Price: Call Us |
| 15 |
43740 |
Spacer, Hood Price: Call Us |
| 16 |
04041-11 |
Flatwasher, 3/8-.406 x 1.50 x 7 Gauge Price: Call Us |
| 17 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 18 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 19 |
482351 |
Oil Drain, Kawasaki Price: Call Us |
| 20 |
452726 |
Plate Weldment, Engine Mount Price: Call Us |
| 21 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 22 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 23 |
04002-18 |
Bolt, Hex Head M10-1.5 x 25 Full Thread Price: Call Us |
| 24 |
04030-03 |
Lockwasher, 5/16 Price: Call Us |
| 25 |
04002-12 |
Bolt, Hex Head M8-1.25 x 20 Price: Call Us |
| 26 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 27 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 28 |
427071 |
Cover, Rear Price: Call Us |
| 29 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
