Home / OPE / Riding Products / 652D, Reelmaster 4240-D Traction Unit, 2010 (SN 310000001-310999999) / Engine Mounted Components

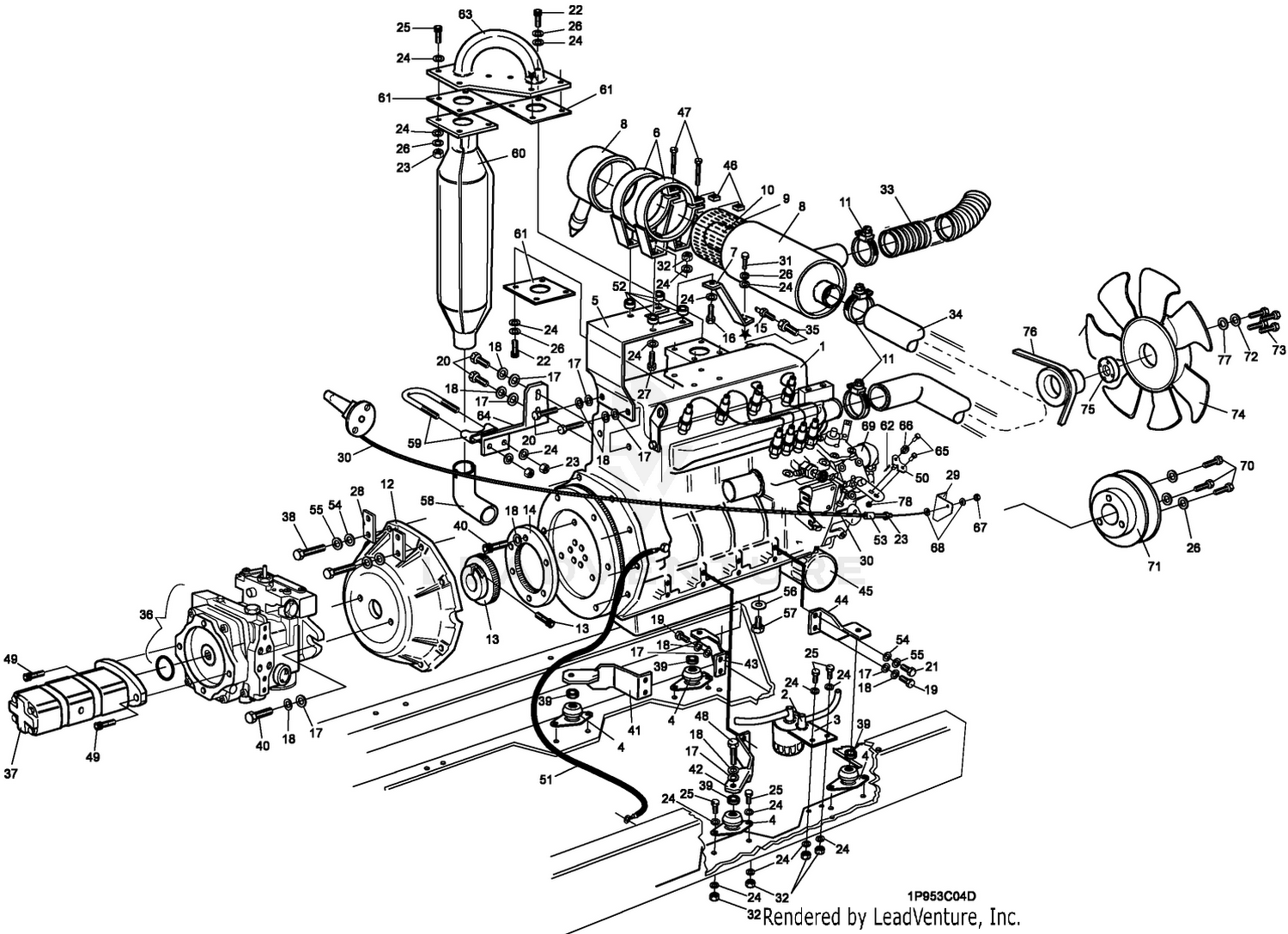

Engine Mounted Components

Engine Mounted Components

Parts (77)

RefPart NumberDescription
1 111-2161 ENGINE - KUBOTA V2203-M-E2B-HAYTER-1 Price: $5,137.35
2 15291-43010 ENGINE FUEL FILTER Price: $101.95
3 134-2829 FILTER-FUEL This part replaces 15221-43170. Price: $11.48
4 70-07-034 FLEXIBLE MTG (70-07-001) Price: $108.55
5 950407W BRACKET AIR CLEANER Price: $60.28
6 950820 MOUNTING BAND AIR CLEANER Price: $28.89
7 950429W STRIP AIR CLEANER BRACE Price: $31.83
8 111-5014 CLEANER-AIR, ASM This part replaces 953862. Price: $338.52
9 70-07-136 AIR FILTER ELEMENT Price: $34.51
10 70-07-163 FILTER SAFETY ELEMENT Price: $31.47
11 65-07-042 HOSE CLIP(58-75MM DIA) Price: $2.81
12 994880 KIT BELL HOUSING KUBOTA SUPER3 Price: $364.16
13 994882 DRIVE HUB V2203/V2003M-T Price: $104.37
14 994883 DRIVE FLANGE V2203/V2003M-T Price: $111.15
15 99-3582 THERMOSWITCH This part replaces 950853. Price: $110.05
16 09631 BOLT M8*35 Price: $1.40
17 HY09485 WASHER M12 PLAIN Price: $1.40
18 09599 WASHER Price: $1.42
19 70-11-017 HEX HED SETSCREW M12*30 FINE Price: $5.90
20 70-11-016 HED HED.SET SCREW M12*20 FINE Price: $4.88
21 50-11-005 SET SCW.M10*1.25P*25LG Price: $3.19
22 09369 SETSCREW M8 X 30 Price: $1.40
23 09437 NUT M6 PLAIN Price: $1.40
24 09475 WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40
25 09369 SETSCREW M8 X 30 Price: $1.40
26 03469 WASHER M8 SC SPRING Price: $1.40
27 03162 STEEL BOLT Price: $1.39
28 74-01-327 BRACKET LOOM TIE Price: $10.83
29 994382W BRACKET THROTTLE CONTROL Price: $37.99
30 910815 THROTTLE CONTROL Price: $72.39
31 03162 STEEL BOLT Price: $1.39
32 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
33 70-07-052 VACUUM HOSE Price: $49.23
34 950819 Air Intake Hose Price: $127.67
35 950425 ADAPTER TEMPERATURE SENDER Price: $61.08
36 953684 PUMP TRANSMISSION Price: $5,592.25
37 953750 PUMP TRIPLE GEAR Price: $1,650.41
38 09397 BOLT M10 X 60 Price: $1.40
39 953028 Spacer - Engine T424 Price: $14.92
40 09694 SCREW SOC HD CAP M12*40 Price: $1.61
41 953121W BRACKET ENGINE MOUNT FRONT RH Price: $62.79
42 953120W BRACKET ENGINE MOUNT FRONT LH Price: $62.79
43 953123W BRACKET ENGINE MOUNT REAR RH Price: $60.07
44 953122W BRACKET ENGINE MOUNT REAR LH Price: $60.07
45 104-5169 FILTER-OIL This part replaces 17321-32430. Price: $12.27
46 09437 NUT M6 PLAIN This part replaces 09436. Price: $1.40
47 09645 M6 X 35 HEX.HD.SETSCREW Price: $1.40
48 63-11-009 HEX HD.BOLT M12*50HT/10.9 Price: $5.02
49 ZCS1J030U SOC.HD.CAP Price: $1.31
50 994381 PLATE THROTTLE CONTROL Price: $12.19
51 70-09-023 EARTH CABLE Price: $10.21
52 480072 SPACER Price: $5.61
53 953832 ADJUSTER THROTTLE CABLE Price: $2.50
54 09479 WASHER M10 X 21 X 1.45 THK (P) Price: $1.39
55 09480 WASHER M10 SC SPRING Price: $1.36
56 15451-96670 Washer - Oil Drain Plug Price: Call Us
57 15707-33750 Plug - Oil Drain Price: Call Us
58 950415 EXHAUST TAIL PIPE Price: $38.23
59 74-07-018 CLAMP EXHAUST 45MM S.8878 Price: $3.82
60 19077-12110 MUFFLER Price: $293.49
61 15471-12230 EXHAUST GASKET - MUFFLER Price: $4.94
62 70-07-107 SPLIT PIN 0 2,5*16 Price: $1.35
63 950410S EXHAUST MANIFOLD W/A Price: $182.21
64 950408W PLATE EXHAUST BRACE Price: $34.44
65 09362 SCREW M6 X 16 HEX HD ZINC Price: $1.42
66 940243 BOSS - THROTTLE CLAMP Price: $48.47
67 09437 NUT M6 PLAIN Price: $1.40
68 09472 WASHER-PLAIN Price: $1.25
69 1A021-60015 SOLENOID This part replaces 1A021-60014. Price: $165.22
70 09565 BOLT M8 X 55 HEX HD ZN & PASS Price: $1.40
71 966103 CRANKSHAFT PULLEY V2203 This part replaces 111-0913. Price: $128.92
72 09472 WASHER-PLAIN Price: $1.25
73 ZDH1F050U SETSCREW Price: Call Us
74 994821 IMPELLER DIA 380 Price: $257.85
75 994509 FAN SPACER R324 Price: $62.77
76 AU106649 BELT-FAN This part replaces 1G953-97010. Price: $71.14
77 09474 WASHER M6 SC SPRING Price: $1.34
