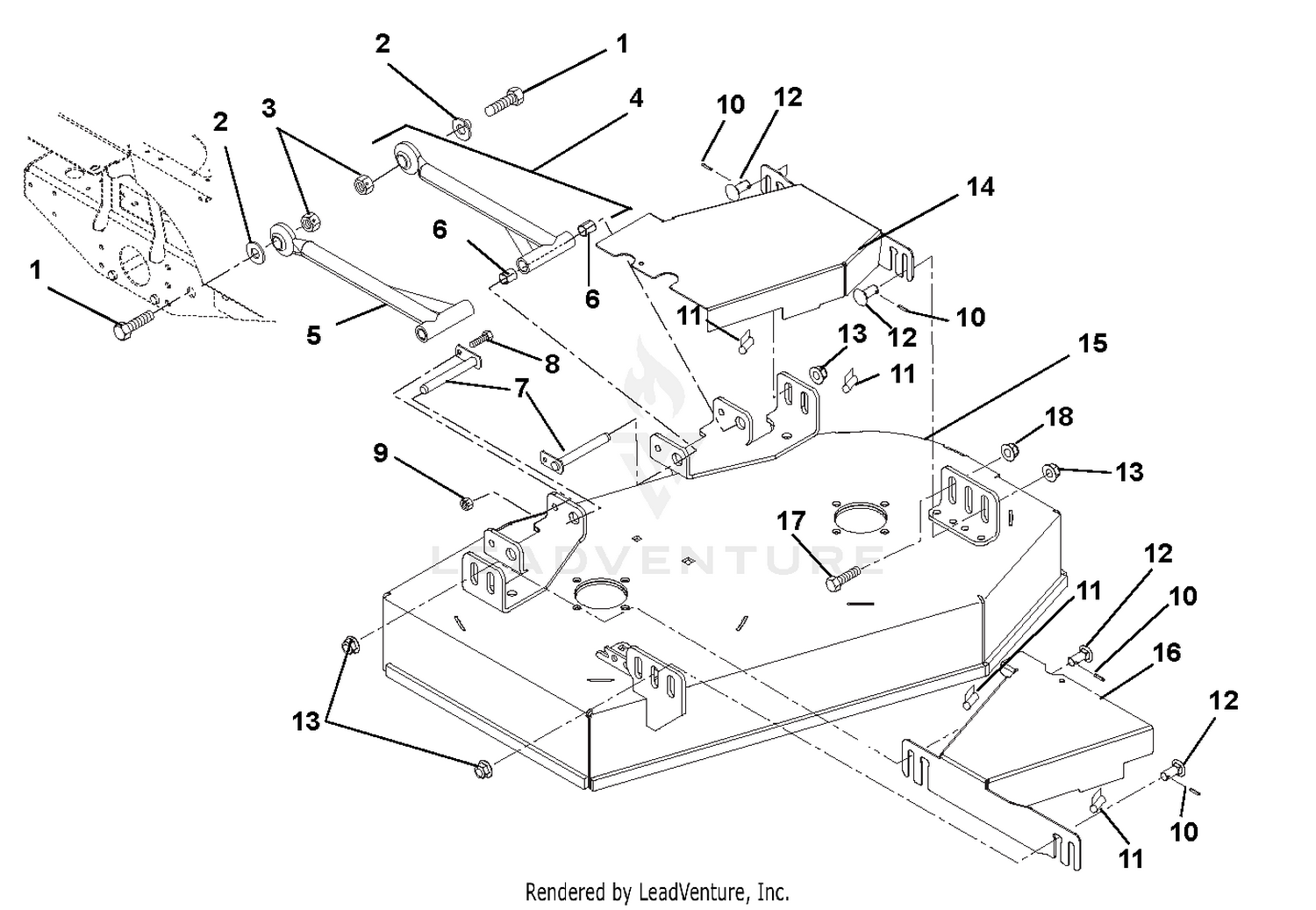

| Ref | Part Number | Description |
|---|
| 1 |
05900003 |
BLT-HEX .875-9X3.00 GR5 YZ Price: $6.45 |
| 2 |
05512600 |
BSHG-SLV .882X1.250X.531 Price: $5.45 |
| 3 |
06539700 |
NUT-LK-CTR .875-9 YWZC Price: $5.45 |
| 5 |
09282151 |
MOWER MTG ARM - BLACK Price: $112.45 |
| 6 |
05435900 |
BRG, .750 X .875 X 1.000 Price: $5.95 |
| 7 |
09238900 |
WELDMENT, MOWER MTG. PIN Price: $55.45 |
| 8 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 9 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 10 |
05803400 |
PIN-ROLL .125X.75 Price: $0.45 |
| 11 |
00929000 |
SEAL, TRIM-LOK BULK .06 BBL 1' Price: $0.95 |
| 12 |
06200206 |
BLT-RDHDSQNK .50-13X1.25 SPL Price: $19.95 |
| 13 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 14 |
04365851 |
WMT-BELT GUARD 34" LH (SD) -CE Price: $31.95 |
| 15 |
04950653 |
WMT-34" MOWER DECK-REAR DISCH Price: $784.45 |
| 16 |
04365951 |
WMT-BELT GUARD 34" RH (SD) -CE Price: $26.95 |
