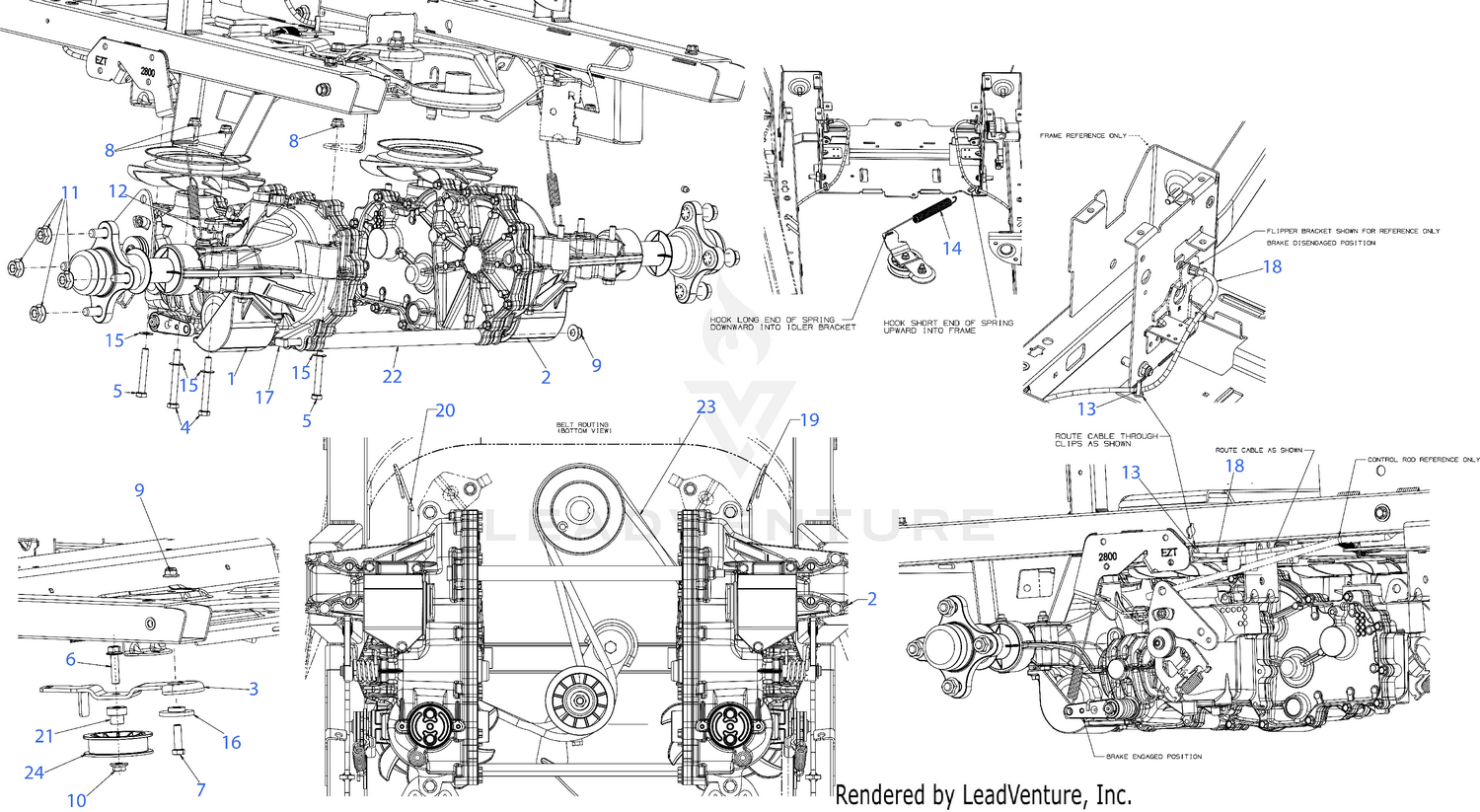

| Ref | Part Number | Description |
|---|
| 3 |
703E26186 |
HYDRO DRIVE IDLER BRACKET Price: $22.82 |
| 4 |
710-0176 |
HEX SCREW 5/16-18 x 2.75 Price: $3.89 |
| 5 |
710-0395 |
HEX SCREW 5/16-18 x 2.25 GR5 Price: $4.08 |
| 6 |
710-06749 |
HEX HEAD BOLT (3/8-16:1.50 GR8) Price: $5.95 |
| 7 |
710-3005 |
SCREW 3/8-16 x 1.25 GR5 Price: $3.61 |
| 8 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 9 |
712-04065 |
NUT Price: $3.68 |
| 10 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 11 |
712-05160 |
HEX FLANGE NUT 7/16-14 Price: $4.59 |
| 12 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 13 |
726-3055 |
CABLE RETAINER CLIP Price: $6.06 |
| 14 |
732-06226A |
EXTENSION SPRING .75 DIA X 9.78 This part replaces 732-06226. Price: $13.32 |
| 15 |
736-0278 |
FLAT WASHER Price: $4.99 |
| 16 |
738-04162C |
SHOULDER SPACER Price: $12.76 |
| 17 |
738-05554A |
SUPPORT TUBE ROD Price: $11.73 |
| 18 |
746P05611B |
PARK BRAKE CABLE Price: $31.35 |
| 19 |
747-07690A |
HYDRO BYPASS ROD (RH) Price: $12.54 |
| 20 |
747-08130A |
HYDRO BYPASS ROD (LH) Price: $12.54 |
| 21 |
748-05029A |
SHOULDER SPACER Price: $4.19 |
| 22 |
750-07350 |
SUPPORT TUBE Price: $21.16 |
| 23 |
954-04317A |
TRANSMISSION DRIVE BELT A x 67 Price: $46.63 |
