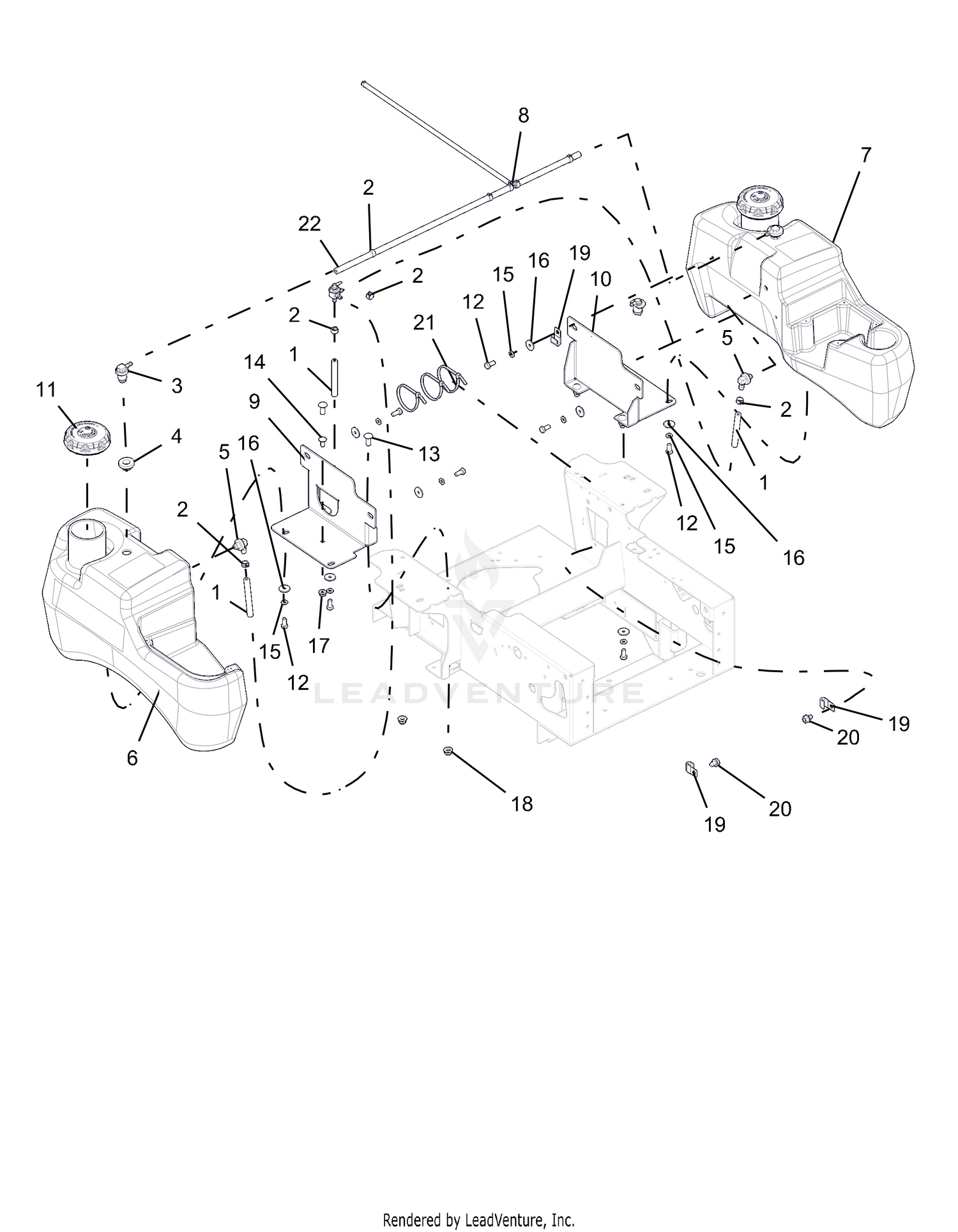

| Ref | Part Number | Description |
|---|
| 2 |
03278800 |
CLAMP, FUEL LINE Price: $0.95 |
| 3 |
05185600 |
VALVE, COMBINATION VENT 3/16 This part replaces 04068910. Price: $16.45 |
| 4 |
04082700 |
GROMMET, REMOTE VENT NITRILE Price: $3.45 |
| 5 |
04320900 |
ASM, FUEL PICK-UP SML/MED TANK Price: $35.95 |
| 6 |
04340600 |
TANK-RH MEDIUM GRAVELY FUEL Price: $214.45 |
| 7 |
04340700 |
TANK-LH MEDIUM GRAVELY FUEL Price: $214.45 |
| 8 |
04458500 |
PT100, KAW FUEL LINE ASSEMBLY Price: $34.95 |
| 11 |
09190300 |
CAP, FUEL - 3.50 RATCHET INLET VENT This part replaces 04558000. Price: $30.95 |
| 12 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 13 |
06200235 |
BLT,RHSSN .38-16X1.00 G5 ZCC This part replaces 06212000. Price: $1.45 |
| 14 |
06200232 |
BLT,RHSN .31-18X.75 G5 ZCC This part replaces 06215700. Price: $2.45 |
| 15 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 16 |
06401027 |
WSHR,FLT .328X1.00X.094 ZCC This part replaces 06437500. Price: $3.45 |
| 17 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 18 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 19 |
06909400 |
J-CLAMP Price: $3.45 |
| 20 |
07400126 |
SCR,TAP .375-16X.50 HWH TR ZCC This part replaces 07412900. Price: $1.45 |
| 21 |
07517300 |
CABLE TIE LG 5-1/2 Price: $2.95 |
