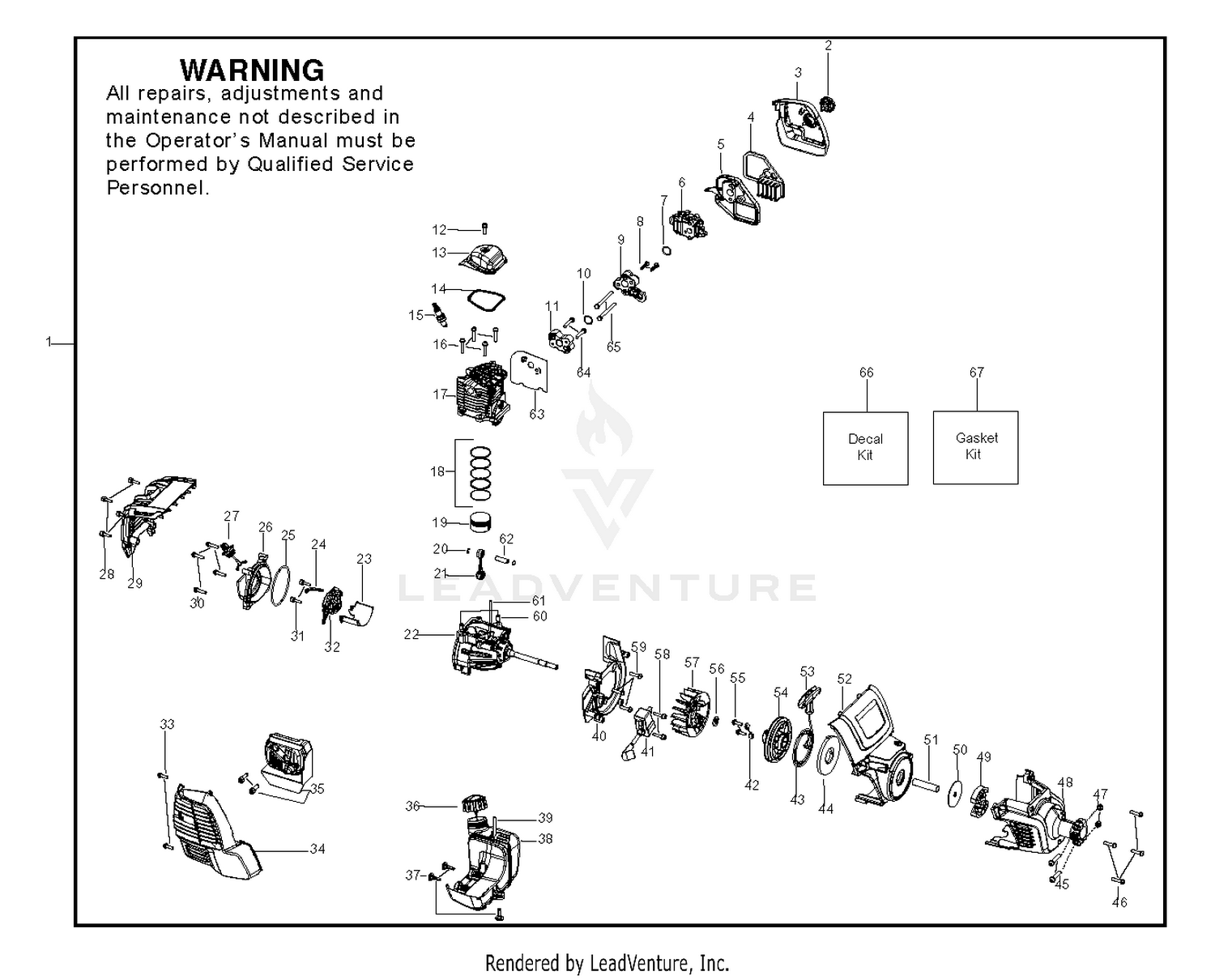

| Ref | Part Number | Description |
|---|
| 1 |
5-3467 |
DISCONTINUED Price: Call Us |
| 1 |
579629601 |
KIT SHORT BLOCK SERVICE Price: $299.99 |
| 2 |
5-3466 |
DISCONTINUED Price: Call Us |
| 2 |
576375001 |
ASSY AIRBOX KNOB BLACK Price: $1.99 |
| 3 |
3-9337 |
DISCONTINUED Price: Call Us |
| 3 |
579629301 |
KIT AIRBOX COVER SERVICE Price: $1.99 |
| 4 |
530016464 |
INSERT AIRBOX Price: $1.99 |
| 5 |
32122-20 |
DISCONTINUED Price: Call Us |
| 5 |
579629201 |
KIT AIRBOX BASE SERVICE Price: $6.99 |
| 6 |
5-3468 |
DISCONTINUED Price: Call Us |
| 6 |
578982101 |
CARBURETOR Price: $74.99 |
| 7 |
249-10 |
DISCONTINUED Price: Call Us |
| 7 |
578951901 |
RING CARB SEALING Price: $1.99 |
| 8 |
530015814 |
SCREW Price: $1.99 |
| 8 |
8-0030 |
DISCONTINUED Price: Call Us |
| 9 |
579650601 |
ADAPTER KIT CARB SERVICE Price: $3.41 |
| 9 |
6-9930 |
DISCONTINUED Price: Call Us |
| 10 |
5-3276 |
DISCONTINUED Price: Call Us |
| 10 |
578951901 |
RING CARB SEALING Price: $1.99 |
| 11 |
5-0946 |
KEY-SQUARE Price: $1.76 |
| 11 |
579650501 |
KIT ADAPTER CYL SERVICE Price: $2.96 |
| 12 |
51-2710 |
DISCONTINUED This part replaces 5-1894. Price: Call Us |
| 12 |
575962401 |
SCREW M5-0.8 W/COPPER WAS Price: $1.99 |
| 13 |
3-8516 |
DISCONTINUED Price: Call Us |
| 13 |
574831601 |
COVER ROCKER Price: $1.50 |
| 14 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 14 |
577821801 |
SEAL ROCKER COVER Price: $1.34 |
| 15 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 15 |
545236001 |
PLUG SPARK 10MM Price: $4.64 |
| 16 |
575953101 |
SCREW M5-0.80X25MM Price: $1.99 |
| 16 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 17 |
3242-7 |
Setscrew Price: Call Us |
| 17 |
579628601 |
KIT CYLINDER SERVICE Price: $78.80 |
| 18 |
3-9374 |
DISCONTINUED Price: Call Us |
| 18 |
579629001 |
KIT PISTON RINGS SERVICE Price: $7.36 |
| 19 |
218-219 |
DISCONTINUED Price: Call Us |
| 19 |
545231201 |
PISTON PLATED 4S Price: $8.44 |
| 20 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
530015162 |
WRIST PIN RET. Price: $1.99 |
| 21 |
3290-244 |
WASHER-LOCK Price: $0.85 |
| 21 |
578018602 |
ASSY CONNECTING ROD 4S Price: $8.16 |
| 22 |
3290-255 |
PIN-COTTER, HAIR Price: $7.89 |
| 22 |
579629401 |
KIT CRANKCASE SERVICE Price: $40.76 |
| 23 |
323-6 |
SCREW-HH Price: $0.66 |
| 23 |
578894901 |
BAFFLE CRANKCASE Price: $1.99 |
| 24 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 24 |
577887301 |
HOSE MOLDED BREATHER Price: $1.99 |
| 25 |
545232601 |
SEAL REAR PLUG Price: $1.99 |
| 25 |
57-6480 |
DISCONTINUED This part replaces 5-3893. Price: Call Us |
| 26 |
298-8 |
DISCONTINUED Price: Call Us |
| 26 |
579155101 |
PLUG REAR Price: $14.99 |
| 27 |
237-62 |
DISCONTINUED Price: Call Us |
| 27 |
576014001 |
RETAINER OIL CAP Price: $1.99 |
| 28 |
283-15 |
PIN-CLEVIS Price: $4.07 |
| 28 |
574765101 |
SCREW Price: $1.99 |
| 29 |
3-8782 |
DISCONTINUED Price: Call Us |
| 29 |
579629501 |
KIT REAR SHROUD SERVICE Price: $6.99 |
| 30 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 30 |
575962701 |
SCREW M5 0.8 X 20MM Price: $1.99 |
| 31 |
3217-7 |
NUT-HEX Price: $0.28 |
| 31 |
575962601 |
SCREW M4 0.7 X 16MM Price: $0.99 |
| 32 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 32 |
579629101 |
KIT BREATHER ASSY SERVICE Price: $2.96 |
| 33 |
3217-6 |
NUT-HEX Price: $1.19 |
| 33 |
530015775 |
SCREW 8-16 X 9/16 (PLAS Price: $1.99 |
| 34 |
3-8524 |
SWAGED STRG CABLE ASM Price: $226.19 |
| 34 |
576356901 |
COVER MUFFLER BLACK Price: $4.99 |
| 35 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 35 |
579628701 |
KIT MUFFLER SERVICE Price: $9.64 |
| 36 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 36 |
575264601 |
FUEL CAP ASSY W/RETAINER Price: $12.99 |
| 37 |
576356301 |
RETAINER FUEL TANK Price: $0.37 |
| 38 |
3-6558 |
THRUST WASHER Price: $14.45 |
| 38 |
545236101 |
FUEL TANK ASSY Price: $17.99 |
| 39 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 39 |
579628901 |
FUEL LINE KIT Price: $6.99 |
| 40 |
3217-5 |
NUT-HEX Price: $0.25 |
| 40 |
545233101 |
SCROLL 4S Price: $6.05 |
| 41 |
22-7510 |
DISCONTINUED Price: Call Us |
| 41 |
545230501 |
MODULE IGNITION 4S Price: $12.99 |
| 42 |
5-3934 |
BOLT-CASTER Price: $55.92 |
| 42 |
530027523 |
RETAINER Price: $2.99 |
| 43 |
302-5 |
FITTING-GREASE This part replaces 302-47. Price: $0.59 |
| 43 |
575670601 |
ROPE ASSY STARTER Price: $22.99 |
| 44 |
5-3930 |
DISCONTINUED Price: Call Us |
| 44 |
545008014 |
KIT STARTER SPRING This part replaces 545054901. Price: $3.99 |
| 45 |
253-125 |
OIL SEAL Price: $11.00 |
| 45 |
575953101 |
SCREW M5-0.80X25MM Price: $1.99 |
| 46 |
254-78 |
BEARING-CONE Price: $12.22 |
| 46 |
575962701 |
SCREW M5 0.8 X 20MM Price: $1.99 |
| 47 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 47 |
576467901 |
Price: Call Us |
| 48 |
232-24 |
STEM-VALVE Price: $4.03 |
| 48 |
576817101 |
ASSY CLUTCH COVER BLACK Price: $26.27 |
| 49 |
217-83 |
DISCONTINUED Price: Call Us |
| 49 |
530055122 |
ASSEMBLY CLUTCH Price: $8.99 |
| 50 |
231-42 |
DISCONTINUED Price: Call Us |
| 50 |
530094189 |
WASHER-CLUTCH Price: $2.99 |
| 51 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 51 |
530059758 |
SPACER FLYWHEEL Price: $4.99 |
| 52 |
3-8542 |
DISCONTINUED Price: Call Us |
| 52 |
545230101 |
ASSY FAN HSG 4S Price: $19.99 |
| 53 |
323-20 |
SCREW-HH Price: $1.28 |
| 53 |
574781701 |
HANDLE STARTER ROPE Price: $19.99 |
| 54 |
545052601 |
Price: Call Us |
| 54 |
HY2562 |
DISCONTINUED This part replaces 256-2. Price: Call Us |
| 55 |
3-8523 |
DISCONTINUED Price: Call Us |
| 55 |
530015775 |
SCREW 8-16 X 9/16 (PLAS Price: $1.99 |
| 56 |
3257-30 |
KEY-WOODRUFF Price: $5.35 |
| 56 |
530016463 |
WASHER CLUTCH Price: $1.99 |
| 57 |
3-8521 |
DISCONTINUED Price: Call Us |
| 57 |
575881601 |
FLYWHEEL ASSY Price: $24.99 |
| 58 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 58 |
575953201 |
SCREW M4-0.7X22.225MM Price: $1.99 |
| 59 |
5-1678 |
DISCONTINUED Price: Call Us |
| 59 |
575962701 |
SCREW M5 0.8 X 20MM Price: $1.99 |
| 60 |
3290-239 |
DISCONTINUED Price: Call Us |
| 60 |
545232801 |
PIN ALIGNMENT 4S Price: $1.99 |
| 61 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 61 |
575533102 |
HOSE BREATHER SHORT Price: $1.99 |
| 62 |
3-9046 |
DISCONTINUED Price: Call Us |
| 62 |
530032159 |
PISTON PIN Price: $1.99 |
| 63 |
3-8522 |
DISCONTINUED Price: Call Us |
| 63 |
545237501 |
GASKET AIRDAM Price: $1.99 |
| 64 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 64 |
575953101 |
SCREW M5-0.80X25MM Price: $1.99 |
| 65 |
321-10 |
SCREW-HH Price: $1.29 |
| 65 |
579073201 |
BOLT CARBURETOR 4S30 55MM Price: $1.99 |
| 66 |
3217-26 |
NUT-HEX Price: $0.25 |
| 66 |
579664601 |
KIT DECAL Price: $5.99 |
| 67 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 69 |
32121-10 |
PIN-ROLL Price: $6.99 |
| 70 |
25-6250 |
DISCONTINUED Price: Call Us |
| 71 |
9547 |
WASHER-THRUST This part replaces 25-6260. Price: $5.69 |
| 72 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 73 |
5-1531 |
DISCONTINUED Price: Call Us |
| 74 |
3290-212 |
WASHER-SPRING Price: $1.56 |
| 75 |
32122-30 |
SCREW-PTH Price: $0.28 |
| 76 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 77 |
3217-26 |
NUT-HEX Price: $0.25 |
| 78 |
13-3710 |
WASHER Price: $3.05 |
| 79 |
321-4 |
SCREW-HH Price: $0.99 |
