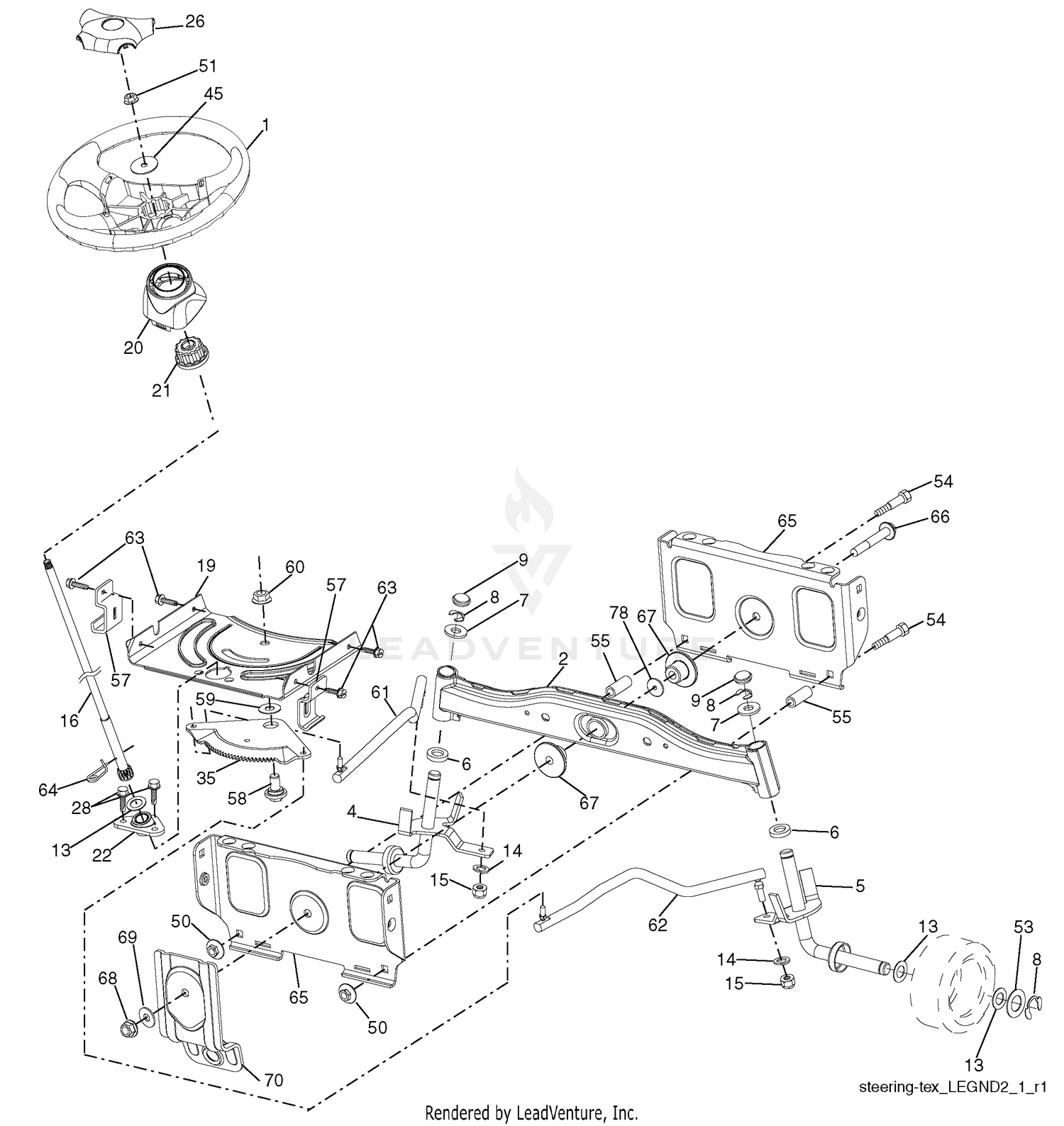

| Ref | Part Number | Description |
|---|
| 1 |
186093X428 |
Wheel, Steering Price: Call Us |
| 1 |
76-4950 |
NUT-FLANGE Price: $12.75 |
| 2 |
195968 |
Axle Asm., Front Price: Call Us |
| 2 |
76-4940 |
PULLEY-PUMP Price: $196.38 |
| 3 |
94-3220 |
DISCONTINUED Price: Call Us |
| 4 |
403087 |
Spindle Asm., LH Price: Call Us |
| 4 |
94-3225 |
SCREW-HH Price: $2.10 |
| 5 |
403088 |
Spindle Asm., RH Price: Call Us |
| 5 |
76-4930 |
WASHER Price: $0.93 |
| 6 |
6266H |
Bearing, Race Thrust Harden Price: Call Us |
| 6 |
94-3165 |
NUT-HEX Price: $2.34 |
| 7 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 7 |
74-8610 |
PIN-SPRING Price: $2.73 |
| 8 |
12000029 |
Ring, Clip #T5304-75 Price: Call Us |
| 8 |
74-8630 |
BUSHING-FLANGE Price: $6.93 |
| 9 |
121232X |
Cap, Spindle Price: Call Us |
| 9 |
94-3224 |
WASHER-PLATE Price: $0.57 |
| 10 |
94-3164 |
WASHER-SPRING Price: $1.20 |
| 11 |
94-3221 |
SCREW-HH Price: $9.64 |
| 12 |
74-8650 |
PACER Price: $2.36 |
| 13 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 13 |
74-8670 |
FUEL INLET ASM Price: $66.08 |
| 14 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 14 |
74-8680 |
GASKET Price: $5.51 |
| 15 |
48-7880 |
NUT-HEX This part replaces 94-3251. Price: $0.25 |
| 15 |
73540600 |
Nut, Crown Lock 3/8-24 unf Price: Call Us |
| 16 |
3255-10 |
WASHER-LOCK / EXT This part replaces 74-8710. Price: $0.25 |
| 16 |
408219 |
Shaft Steering Price: Call Us |
| 17 |
98-8806 |
SOLENOID VALVE This part replaces 93-5856. Price: $251.17 |
| 18 |
94-3274 |
O-RING Price: $4.19 |
| 19 |
194729 |
Plate Steering Price: Call Us |
| 19 |
94-3219 |
DISCONTINUED Price: Call Us |
| 20 |
199743X428 |
Boot, Steering Price: Call Us |
| 20 |
94-3222 |
KEY Price: $5.03 |
| 21 |
186737 |
Adapter, Wheel Steering Price: Call Us |
| 21 |
74-8870 |
DISCONTINUED Price: Call Us |
| 22 |
194845 |
Bushing, Strg. Blk Price: Call Us |
| 22 |
94-3249 |
TUBE-OUTLET Price: $52.36 |
| 23 |
94-3250 |
SCREW Price: $78.40 |
| 24 |
94-3161 |
DISCONTINUED Price: Call Us |
| 25 |
94-3223 |
SCREW-HH Price: $11.01 |
| 26 |
186095X428 |
Insert, Wheel Steering Price: Call Us |
| 26 |
76-4910 |
STUD Price: $1.24 |
| 27 |
94-9969 |
SCREW-CONNECTION Price: $16.10 |
| 28 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 35 |
194732 |
Gear, Sector Plate Price: Call Us |
| 45 |
19183812 |
Washer 9/16 ID x 2-3/8 x 12 Ga. Price: Call Us |
| 50 |
73900600 |
Nut Lock 3/8-16 unc Price: Call Us |
| 51 |
73940800 |
Nut Hex Jam Toplock 1/2-20 unf Price: Call Us |
| 53 |
188967 |
Washer Hardened .793 x 1.637 x .060 Price: Call Us |
| 54 |
74760636 |
Bolt Hex 3/8-16 unc x 2-1/4 Price: Call Us |
| 55 |
197636 |
Spacer Brace Axle Price: Call Us |
| 57 |
407465 |
Bracket Upstop Price: Call Us |
| 58 |
194747 |
Bolt Shoulder Sector Pivot CFM Price: Call Us |
| 59 |
194748 |
Washer Thrust Sector Steering Price: Call Us |
| 60 |
73971000 |
Nut Flange Lock 5/8-11 Price: Call Us |
| 61 |
194740 |
Draglink, LH Price: Call Us |
| 62 |
194741 |
Draglink, RH Price: Call Us |
| 63 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 64 |
199849 |
Retainer Clip Spring Steering Price: Call Us |
| 65 |
194734 |
Brace Axle Front Price: Call Us |
| 66 |
71020748 |
Bolt Hex Fghd 7/16-14 x 3 Serr Price: Call Us |
| 67 |
194737 |
Bushing PM Front Axle Price: Call Us |
| 68 |
73900700 |
Nut Lock Flange 7/16-14 Gr. 5 Price: Call Us |
| 69 |
199162 |
Washer 1.5 x .505 x .118 Price: Call Us |
| 70 |
196197 |
Bracket Deck Susp. Front Price: Call Us |
