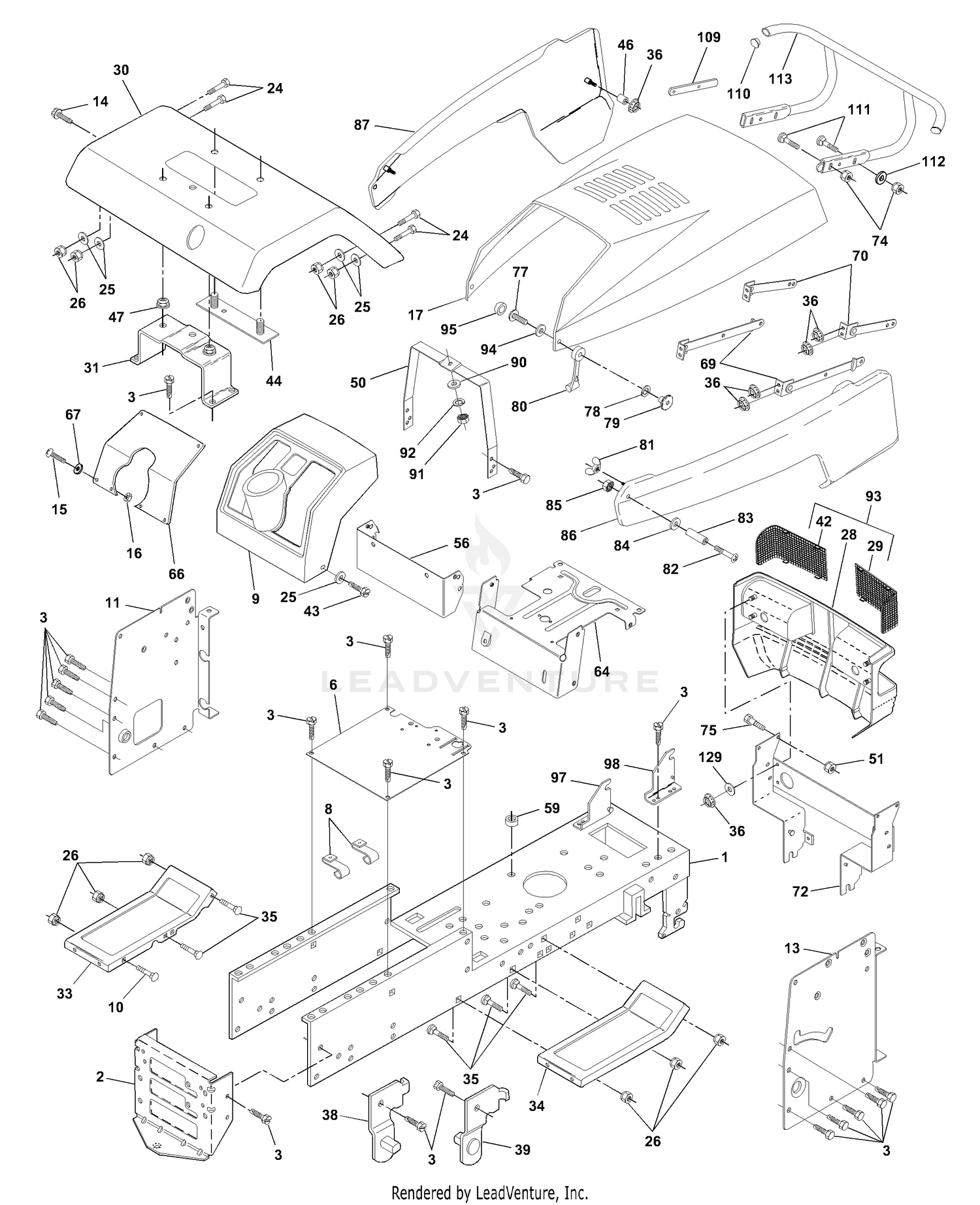

| Ref | Part Number | Description |
|---|
| 1 |
532145501 |
CHASSIS WELD 11GA.95 Price: $130.75 |
| 2 |
532145009 |
KIT.DRAWBAR.SERVICE This part replaces 532140356. Price: $44.99 |
| 3 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 6 |
532145206 |
SADDLE LT FENDER Price: $15.92 |
| 8 |
532126471 |
CLIP,INSULATOR Price: $3.99 |
| 9 |
532140452 |
DASH Price: $32.53 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
532145218 |
PANEL DASH LT Price: $22.99 |
| 13 |
532145217 |
PANEL DASH RH Price: $18.99 |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 15 |
874180512 |
Screw, Machine 5/16-18 UNC x 3/4 Price: $3.99 |
| 16 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 17 |
532125454 |
HOOD.HUSQVARNA.ORANGE Price: $361.99 |
| 24 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 28 |
532157236 |
GRILLE.ASM.HUSQVARNA.YTGT This part replaces 532127325. Price: $119.99 |
| 29 |
532157069 |
LENS.RH.HUSQVARNA.YTGT.CL This part replaces 532124251. Price: $12.99 |
| 30 |
532167270 |
FENDER YT/GT This part replaces 532141449. Price: $100.45 |
| 31 |
532183569 |
BRACKET ASM., FENDER This part replaces 532137113. Price: $9.99 |
| 33 |
532147203 |
FOOT REST LH Price: $9.15 |
| 34 |
532145243 |
FOOTREST LT/YT/GT RH This part replaces 532147202. Price: $9.15 |
| 35 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 36 |
532108067 |
PAL NUT LT Price: $3.10 |
| 38 |
532139886 |
BRACKET LH PIVOT Price: $6.99 |
| 39 |
532139887 |
BRACKET RH PIVOT Price: $6.99 |
| 42 |
532157068 |
LENS LH This part replaces 532124250. Price: $13.99 |
| 43 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 44 |
532140675 |
STRAP Price: $5.99 |
| 46 |
532127316 |
RETAINER Price: $3.12 |
| 47 |
532105531 |
NUT-PUSH YT Price: $2.99 |
| 50 |
532145205 |
DASH SUPT YP Price: $7.99 |
| 51 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 56 |
532145151 |
DASH EXT PNT Price: $4.99 |
| 59 |
532009151 |
SNAP BUSHING T This part replaces 532110436. Price: $2.99 |
| 64 |
532150272 |
DASH LOWER LT This part replaces 532145095. Price: $15.99 |
| 66 |
532140130 |
PLATE, SILKSCR. This part replaces 532141626. Price: $7.04 |
| 67 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 69 |
532106784 |
STRAP ASSY LT Price: $82.19 |
| 70 |
532104618 |
STRAP ASSY LT Price: $82.19 |
| 72 |
532124574 |
SUPPORT ASS'Y Price: $56.10 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 75 |
532007605 |
BOLT This part replaces 532123481. Price: $4.99 |
| 77 |
871191008 |
SCREW.PNHD.10-24 This part replaces 874191008. Price: $7.99 |
| 78 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 79 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 80 |
532109808 |
LATCH.HOOD. Price: $5.99 |
| 81 |
532146525 |
NUT.WING.LCK.NYL.NOTCH.1/4-20 This part replaces 532123198. Price: $3.99 |
| 82 |
874981024 |
SCREW.PAN.HEAD This part replaces 874981020. Price: $4.99 |
| 83 |
532007206 |
SPACER LT Price: $5.99 |
| 84 |
819070818 |
WASHER Price: $5.99 |
| 85 |
873271000 |
NUT This part replaces 873731000. Price: $2.99 |
| 86 |
532140677 |
SIDE PANEL RH This part replaces 532143365. Price: $39.61 |
| 87 |
532140676 |
PANEL LH This part replaces 532143364. Price: $45.27 |
| 90 |
596204201 |
Washers This part replaces 819091216. Price: $2.99 |
| 91 |
873320400 |
Nut Fin Hex 1/4-20 UNC Price: Call Us |
| 92 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 93 |
532157236 |
GRILLE.ASM.HUSQVARNA.YTGT This part replaces 532127320. Price: $119.99 |
| 94 |
532110357 |
WASHER LT Price: $2.99 |
| 95 |
532110356 |
SNAP CAP LT Price: $3.99 |
| 97 |
532110853 |
SUPPORT RH YTH Price: $3.74 |
| 98 |
532110852 |
SUPPORT LH YTH Price: $3.79 |
| 109 |
532170310 |
BUMPER BRACKET This part replaces 532141461. Price: $4.99 |
| 110 |
532143679 |
PLUG PLASTIC Price: $2.99 |
| 111 |
595901101 |
Bolts This part replaces 872140610. Price: $3.99 |
| 112 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 113 |
423141460 |
Bumper Asm w/Poly Bag Price: Call Us |
| 129 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 532121794 |
COVER |
ACCESS Price: $3.99 532121794 |
