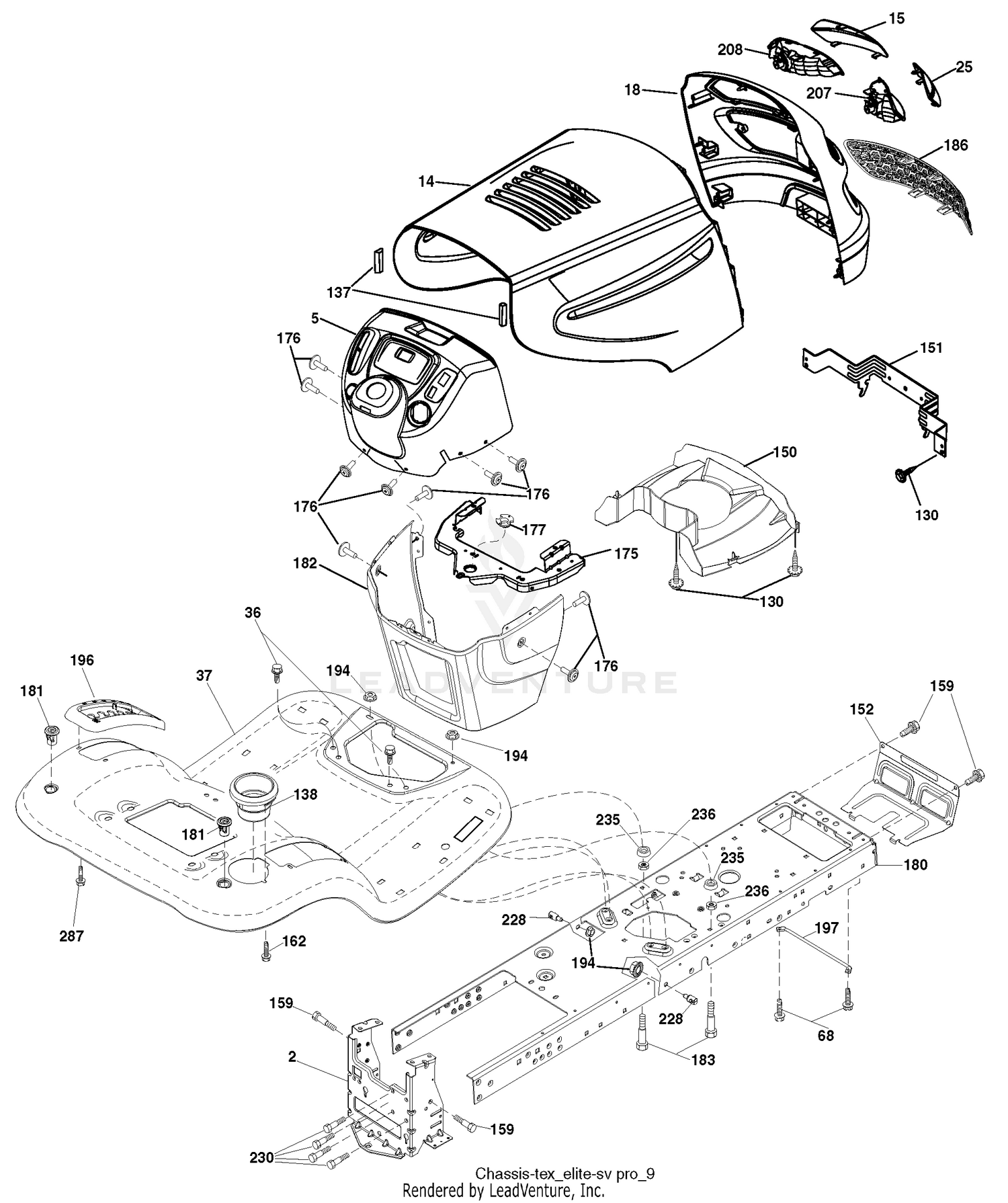

Chassis

Chassis

Parts (43)

RefPart NumberDescription
2 194263 Drawbar Price: Call Us
3 93-6693 DECAL-PLATE, FLOOR Price: $10.84
4 93-6686 DECAL-OIL, HYD Price: $7.01
5 104-0049 COVER-RAIL, SIDE Price: $25.71
5 197783X428 Dash Price: Call Us
6 62-7400 DECAL Price: $24.54
7 75-0620 TREAD-FOOT, LH Price: $24.33
8 75-0610 TREAD-FOOT, RH Price: $21.68
9 93-7592 TREAD-REST, FOOT Price: $13.96
10 104-0048 TREAD-STEP Price: $10.35
11 93-6691 DECAL-BOLT, ECCENTRIC Price: $1.84
12 93-6699 DECAL-FAST / SLOW Price: $18.07
14 183393X428 Hood Price: Call Us
15 183834X599 Lens Grille LH Price: Call Us
25 183835X599 Lens Grille RH Price: Call Us
36 17060512 Screw 5/16-18 x 3/4 Price: Call Us
37 414872X428 Fender Price: Call Us
68 17490508 Screw Thdrol. 5/16-18 x 1/2 Price: Call Us
130 416358 Screw #10 x 0.750 BOS Thread Price: Call Us
137 184921 Bumper Hood Price: Call Us
138 193224X428 Cupholder Price: Call Us
150 184322 Duct Heat Hood Price: Call Us
151 407807 Bracket Pivot Price: Call Us
152 194329 Shield Browning/Debris Price: Call Us
159 17000612 Screw Hexwsh. Thdrol. 3/8-16 x 3/4 Price: Call Us
162 142432 Screw Hex Wsh. Hi-Lo 1/4 x 1/2 Price: Call Us
175 193243 Crossmember Price: Call Us
176 400776 Screw 10-24 x 5/8 Wshd. Qdrx. Price: Call Us
177 195228 Bushing Steering Price: Call Us
180 194260 Chassis Price: Call Us
181 193102X428 Bushing Mtg. Fender Crgo. Price: Call Us
182 193057 Dash Lower Price: Call Us
183 74780520 Bolt Fin Hex 5/16-18 x 1-1/4 Price: Call Us
186 183829X428 Insert Grille Price: Call Us
194 73900500 Nut Lock Hex Flange 5/16-18 Price: Call Us
196 414581 Console Asm. Deck Lift Price: Call Us
197 409167 Rod Pivot Chassis Price: Call Us
207 183833 Bezel Grille RH Price: Call Us
208 183832 Bezel Grille LH Price: Call Us
228 195161 Stud Fastener Price: Call Us
230 170165 Bolt Shoulder 5/16-18 Price: Call Us
235 406129 Spacer Fender Price: Call Us
236 73930500 Nut Center Lock 5/16-18 Price: Call Us
