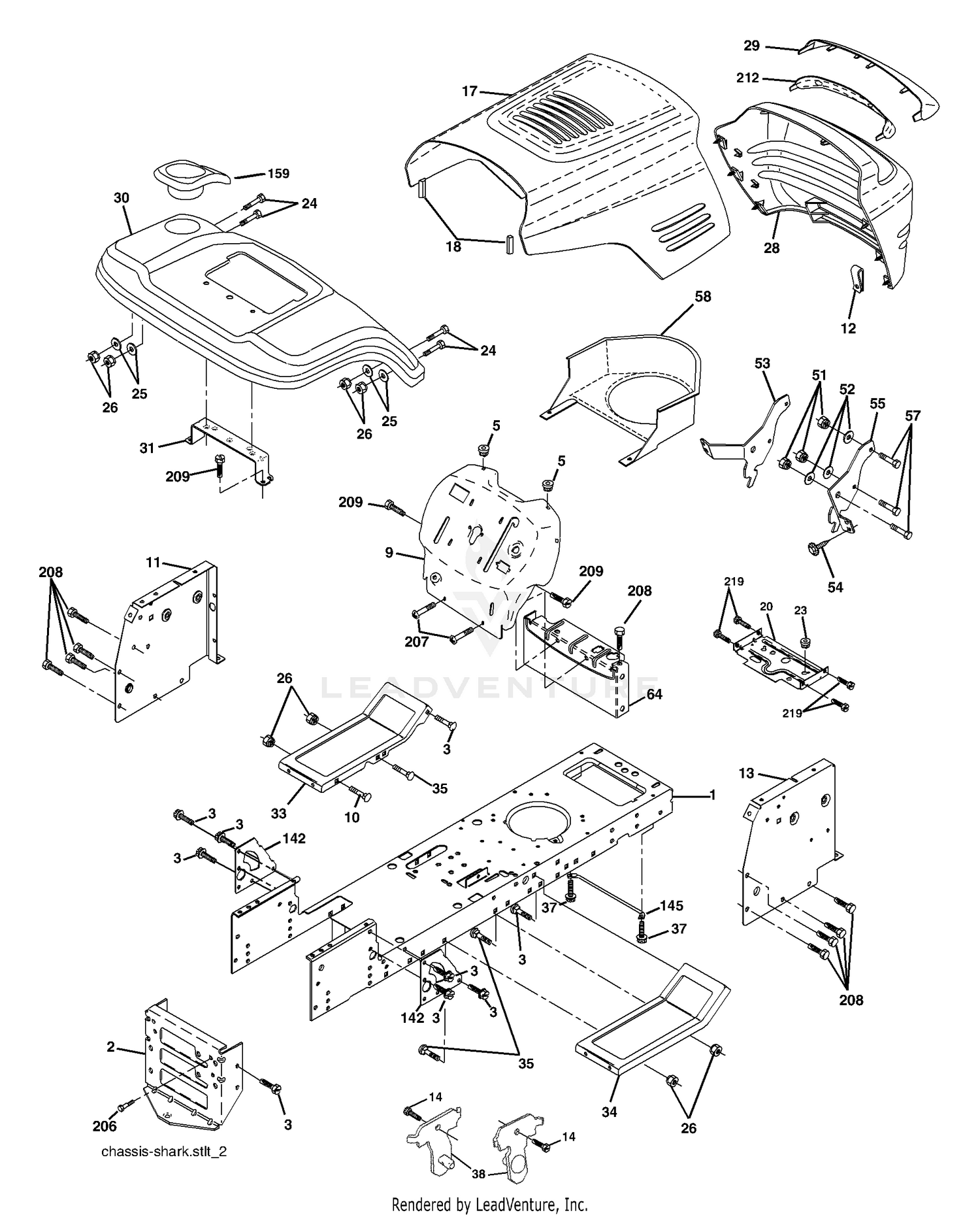

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar Price: Call Us |
| 3 |
17060612 |
Screw 3/8-16 x .75 Price: Call Us |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 9 |
168337X012 |
Dash P/L Price: Call Us |
| 10 |
100-9213 |
OVERFLOW PIPE ASM Price: $80.41 |
| 10 |
72140608 |
Bolt Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
174996 |
Panel Dash Lh Price: Call Us |
| 12 |
145660 |
Clip Tinnerman Price: Call Us |
| 13 |
172106 |
Panel Dash Rh Price: Call Us |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1-1/4 Price: Call Us |
| 17 |
144983X603 |
Hood W/Side Louvers Price: Call Us |
| 18 |
184921 |
Bumper Hood Large Price: Call Us |
| 20 |
180679 |
Plate Mtg Battery Fuel Tank Price: Call Us |
| 20 |
98-7670 |
OVERFLOW PIPE ASM Price: $6.17 |
| 23 |
124028X |
Bushing Price: Call Us |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 x 1 Gr 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 Unc Price: Call Us |
| 28 |
178987X428 |
Grille LT/PL Price: Call Us |
| 29 |
155217X599 |
Lens Price: Call Us |
| 30 |
169470X603 |
Fender Footrest STLT Pnt Price: Call Us |
| 30 |
98-7671 |
CLIP-PIPE Price: $2.39 |
| 31 |
136619 |
Bracket Support Fender Price: Call Us |
| 33 |
179716X603 |
Footrest Pnt Lh Price: Call Us |
| 34 |
179717X603 |
Footrest Pnt Rh Price: Call Us |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm. Pivot Mower Rear Price: Call Us |
| 40 |
98-7672 |
CLIP-PIPE Price: $2.58 |
| 50 |
98-7673 |
CLAMP-CORD Price: $1.41 |
| 51 |
73800400 |
Nut Lock Hex W/Ins 1/4-20 Price: Call Us |
| 52 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 53 |
145201 |
Bracket Grille Lh Price: Call Us |
| 54 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 55 |
145202 |
Bracket Grille Rh Price: Call Us |
| 57 |
74780412 |
Bolt Hex 1/4-20 x 3/4 Price: Call Us |
| 58 |
184460 |
Duct Air Price: Call Us |
| 60 |
100-9214 |
NOZZLE HOLDER KIT Price: $414.34 |
| 64 |
154798 |
Dash Lower STLT Price: Call Us |
| 65 |
100-9215 |
PIECE-NOZZLE Price: $180.30 |
| 70 |
98-7676 |
GASKET Price: $2.73 |
| 80 |
98-7677 |
SEAL-HEAT Price: $10.17 |
| 90 |
100-9216 |
PIPE-INJECTION Price: $89.29 |
| 100 |
100-9217 |
PIPE-INJECTION Price: $81.02 |
| 110 |
100-9218 |
PIPE-INJECTION Price: $89.29 |
| 120 |
100-9219 |
PIPE-INJECTION Price: $89.29 |
| 130 |
98-7682 |
CLAMP-PIPE Price: $6.37 |
| 140 |
98-7683 |
CLAMP-PIPE Price: $3.66 |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 150 |
98-9364 |
SCREW (WITH WASHER) Price: $0.32 |
| 159 |
169473X428 |
Cupholder Price: Call Us |
| 160 |
130-1563 |
PLUG-GLOW This part replaces 98-7685. Price: $53.58 |
| 170 |
98-7686 |
CORD-PLUG, GLOW Price: $21.04 |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hexwsh Thdr 3/8-16 x 3/4 Price: Call Us |
| 212 |
165919 |
Insert Lens Reflect Price: Call Us |
