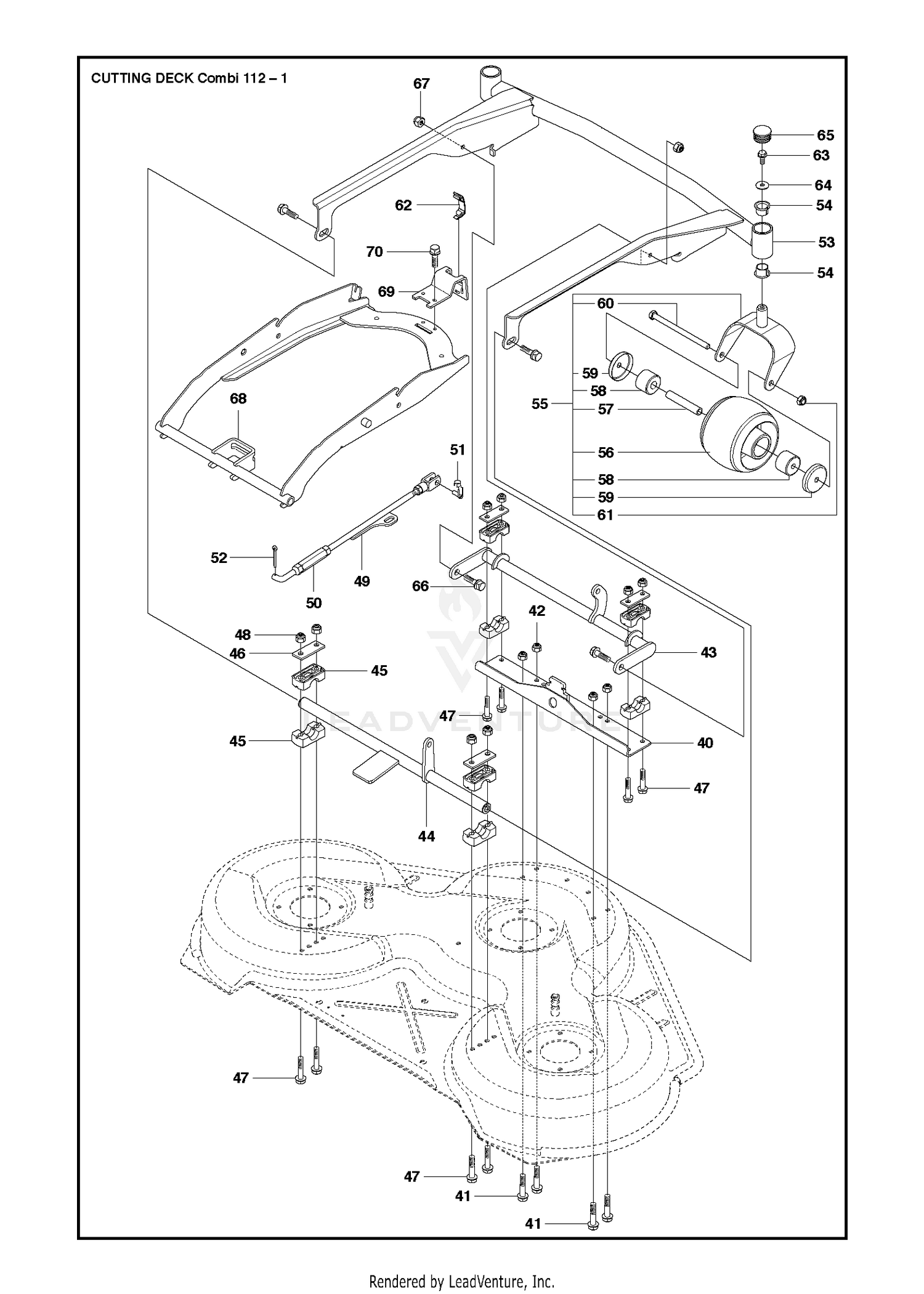

44"/112CM CUTTING DECK
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 105-3735 | CONTROL PLATE ASM Price: $167.82 |
| 20 | 98-9662 | LEVER-CONTROL, SPEED Price: $72.44 |
| 30 | 98-9572 | LEVER-CONTROL, SPEED Price: $47.15 |
| 40 | 105-3788 | O-RING Price: $2.90 |
| 40 | 523095301 | BRACKET Price: $64.99 |
| 41 | 725245171 | SCREW Price: $2.08 |
| 42 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 43 | 502641805 | CROSS BAR Price: $44.99 |
| 44 | 523094503 | CROSS BAR Price: $59.99 |
| 45 | 506869601 | BEARING Price: $8.99 |
| 46 | 506813801 | PLATE Price: $5.99 |
| 47 | 725246151 | BOLT Price: $4.99 |
| 48 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 49 | 523114201 | PARALLELL ROD ASSY Price: $49.99 |
| 50 | 502642301 | PARALLEL ROD Price: $12.99 |
| 50 | 98-7602 | PIN-SPRING Price: $0.64 |
| 51 | 506839802 | JOINT CPL Price: $19.99 |
| 52 | 721618301 | Split Pin Price: $1.99 |
| 53 | 523086507 | DECK FRAME WELDING ASSY This part replaces 523086503. Price: $169.99 |
| 54 | 574561901 | BEARING Price: $5.99 |
| 55 | 596316403 | PIVOT WHEEL ASSY BEARING SLEEV This part replaces 596316401. Price: $64.99 |
| 56 | 582802601 | NEEDS DESCRIPTION Price: Call Us |
| 57 | 506810803 | NEEDS DESCRIPTION Price: Call Us |
| 58 | 590667501 | NEEDS DESCRIPTION Price: Call Us |
| 59 | 590683601 | NEEDS DESCRIPTION Price: Call Us |
| 60 | 725251951 | BOLT Price: $9.99 |
| 60 | 98-9594 | WASHER-PLAIN Price: $2.49 |
| 61 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 62 | 588462803 | NEEDS DESCRIPTION Price: Call Us |
| 63 | 506570104 | BOLT Price: $4.99 |
| 64 | 734116441 | SPACER Price: $3.99 |
| 66 | 506597401 | BOLT Price: $5.99 |
| 67 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 68 | 523087501 | DECK ATTACHMENT Price: $119.99 |
| 69 | 523114601 | LOCK Price: $9.99 |
| 70 | 535475212 | SCREW EHHFM This part replaces 725236861. Price: $2.99 |
| 70 | 98-9589 | NUT Price: $1.46 |
| 80 | 98-9658 | GOVERNOR LEVER ASM Price: $34.84 |
| 90 | 98-9663 | LEVER-STOP, ENGINE Price: $13.34 |
| 100 | 98-7601 | SEAL-OIL Price: $7.88 |
| 110 | 98-9472 | SPRING-RETURN Price: $8.91 |
| 120 | 98-9664 | SHAFT-LEVER, STOP Price: $33.92 |
| 130 | 98-9637 | GASKET Price: $3.98 |
| 140 | 98-7692 | BOLT Price: $0.92 |
| 150 | 127-0401 | BOLT-HEX Price: $0.39 |
| 160 | 98-7654 | GASKET Price: $8.84 |
| 170 | 105-3710 | STUD Price: $1.16 |
| 180 | 100-2203 | NUT-FLANGE Price: $0.87 |
| 190 | 117-7565 | BOLT-ADJUSTING Price: $2.66 |
| 200 | 117-7566 | BOLT-ADJUSTING Price: $4.96 |
