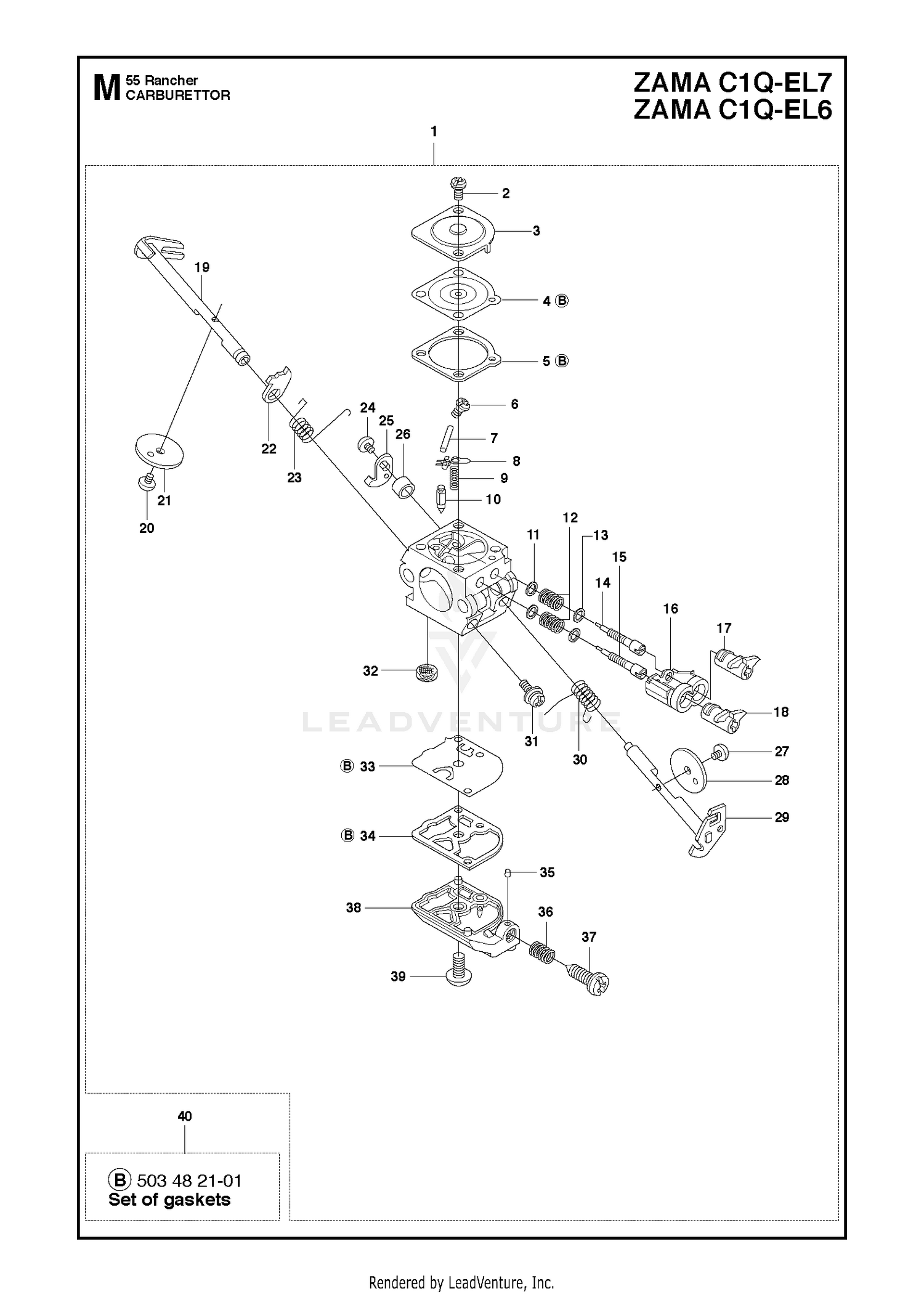

CARBURETOR
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 503480501 | SCREW Price: $2.99 |
| 3 | 503974301 | COVER Price: $5.99 |
| 4 | 503480201 | METERING DIAPHRAGM Price: $11.99 |
| 6 | 503480101 | SCREW Price: $2.99 |
| 7 | 537020801 | PIN This part replaces 503480001. Price: $2.99 |
| 8 | 503665901 | LEVER Price: $3.99 |
| 9 | 503479901 | SPRING Price: $2.99 |
| 10 | 503479701 | INLET NEEDLE Price: $8.99 |
| 12 | 503994301 | SPRING This part replaces 503480801. Price: $2.99 |
| 16 | 503903401 | SLEEVE Price: $6.99 |
| 20 | 503481801 | SCREW Price: $2.99 |
| 21 | 503481701 | CHOKE FLAP Price: $5.99 |
| 22 | 503481601 | STARTER LEVER Price: $0.99 |
| 23 | 537134901 | SPRING Price: $2.99 |
| 24 | 503479001 | SCREW Price: $2.99 |
| 25 | 503478801 | STARTER LEVER Price: $3.99 |
| 26 | 503478901 | SPACER Price: $3.99 |
| 27 | 503479201 | SCREW Price: $2.99 |
| 28 | 503479101 | THROTTLEFLAP Price: $4.99 |
| 29 | 503974201 | THROTTLE SHAFT Price: $6.99 |
| 30 | 537019701 | SPRING THROTTLE Price: $2.99 |
| 31 | 503755301 | SCREW * Price: $2.99 |
| 32 | 503481301 | FUEL INLET SCREEN Price: $2.99 |
| 33 | 503805601 | PUMP DIAPHRAGM Price: $5.99 |
| 34 | 503479401 | GASKET PUMPSIDE Price: $2.99 |
| 35 | 503481101 | PLUG Price: $3.99 |
| 36 | 503481001 | SPRING Price: $2.99 |
| 37 | 503480901 | SCREW Price: $5.99 |
| 38 | 503479501 | PUMPCOVER Price: $9.99 |
| 39 | 503479601 | SCREW Price: $2.99 |
