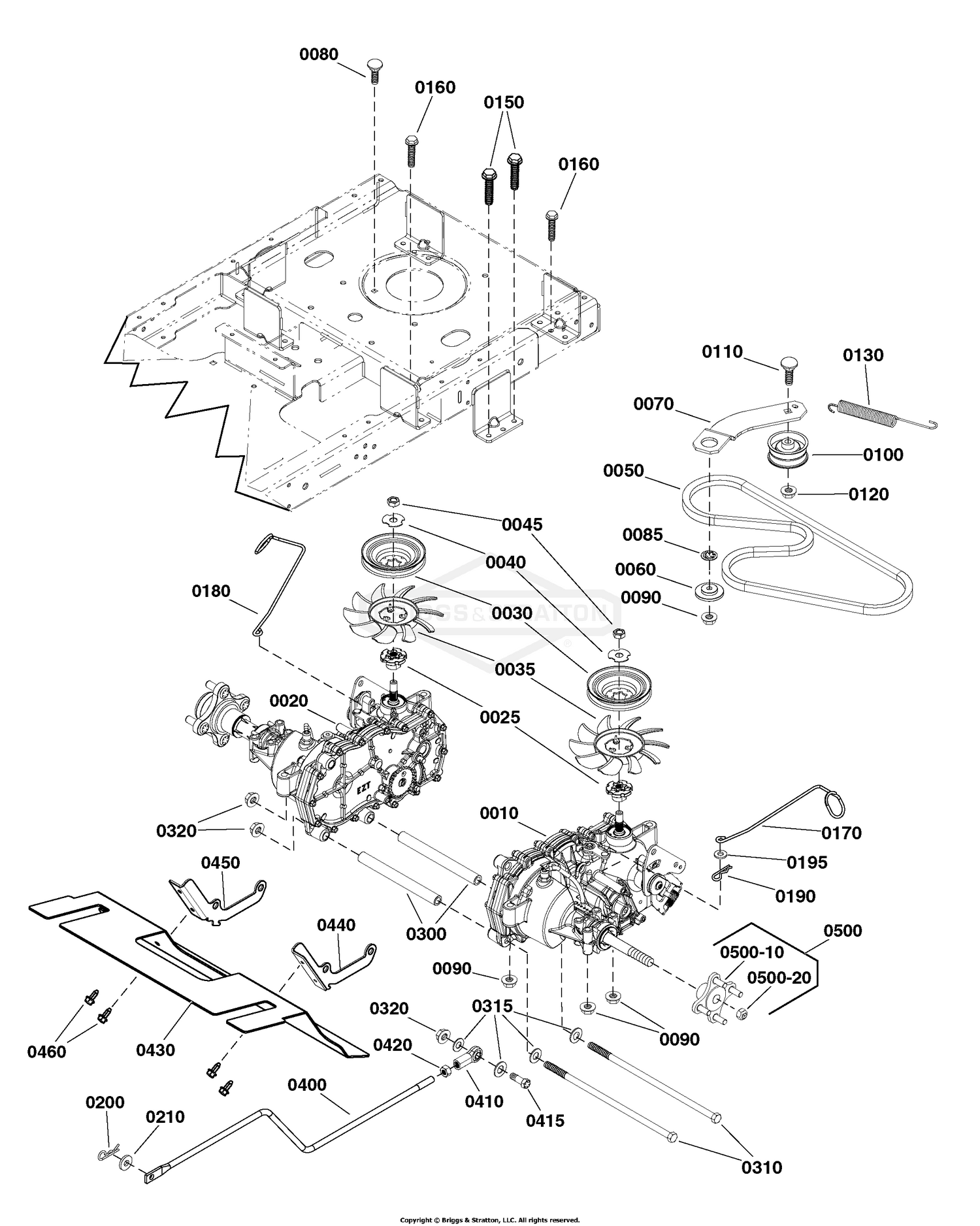

| Ref | Part Number | Description |
|---|
| 0025 |
1759450YP |
SPACER Price: $11.34 |
| 0030 |
1759447YP |
PULLEY, Transmission Price: $24.37 |
| 0035 |
1759448YP |
FAN, Input Price: $13.26 |
| 0040 |
5102914YP |
WASHER, ZT5400, SLOTT Price: $3.51 |
| 0045 |
5102916YP |
NUT, ZT5400 Price: $2.97 |
| 0050 |
1758100YP |
BELT-TRANSMISSION Price: $37.91 |
| 0060 |
1727935SM |
SPACER-PIVOT 0.330ID Price: $5.17 |
| 0070 |
1758044AYP |
ARM, Idler Price: $18.42 |
| 0080 |
703800 |
BOLT, CRRG, 5/16-18X1 Price: $3.19 |
| 0085 |
703297 |
RETAINER, GR5, 5/16 Price: $3.29 |
| 0090 |
703115 |
NUT Price: $3.06 |
| 0100 |
1668477SM |
PULLEY, Idler, 2.25" OD, .378 ID Price: $22.22 |
| 0110 |
703879 |
BOLT, SQ, 3/8-16X1.75 Price: $3.50 |
| 0120 |
5025394SM |
NUT, 3/8-16 HEX NYLOCK Price: $3.82 |
| 0130 |
1758045YP |
SPRING-EXTENSION Price: $7.60 |
| 0150 |
707943 |
SCREW Price: $5.00 |
| 0160 |
707944 |
SCREW, Washer Head, 5/16-18 X 2 1/4 Price: $4.29 |
| 0170 |
1759245YP |
ROD, Release, LH Price: $13.03 |
| 0180 |
1759246YP |
ROD, Release, RH Price: $13.03 |
| 0190 |
703430 |
PIN, 13X1.19 This part replaces 1722460SM. Price: $2.87 |
| 0195 |
703332 |
WASHER Price: $3.72 |
| 0200 |
703300 |
PIN, 3/32 X 1.6 Price: $3.50 |
| 0210 |
704128 |
WASHER Price: $4.49 |
| 0300 |
1759392YP |
SPACER, Transmission Price: $13.72 |
| 0310 |
84004985 |
CAPSCREW, HexHead, 7/16-14 X 11 3/4 Price: $17.00 |
| 0315 |
703183 |
WASHER, 7/16 ID X.065 Price: $3.29 |
| 0320 |
1930650SM |
NUT-HEX FLANGE 7/16-1 Price: $4.79 |
| 0400 |
1757966YP |
ROD, Control Price: $34.44 |
| 0410 |
1759799YP |
ROD, 7/16-20 RH, Female Price: $21.19 |
| 0415 |
703579 |
HHCS, 7/16-14X1.25 Price: $4.04 |
| 0420 |
7090460SM |
NUT, 7/16F, GR5, Hex Price: $2.04 |
| 0430 |
84004940 |
GUARD, Debris,Transmission Price: $90.09 |
| 0440 |
84004941 |
BRACKET, Debris, LH Price: $15.88 |
| 0450 |
84004942 |
BRACKET, Debris, RH Price: $16.08 |
| 0460 |
703228 |
SCREW, 5/16-18 X .75 Price: $3.94 |
