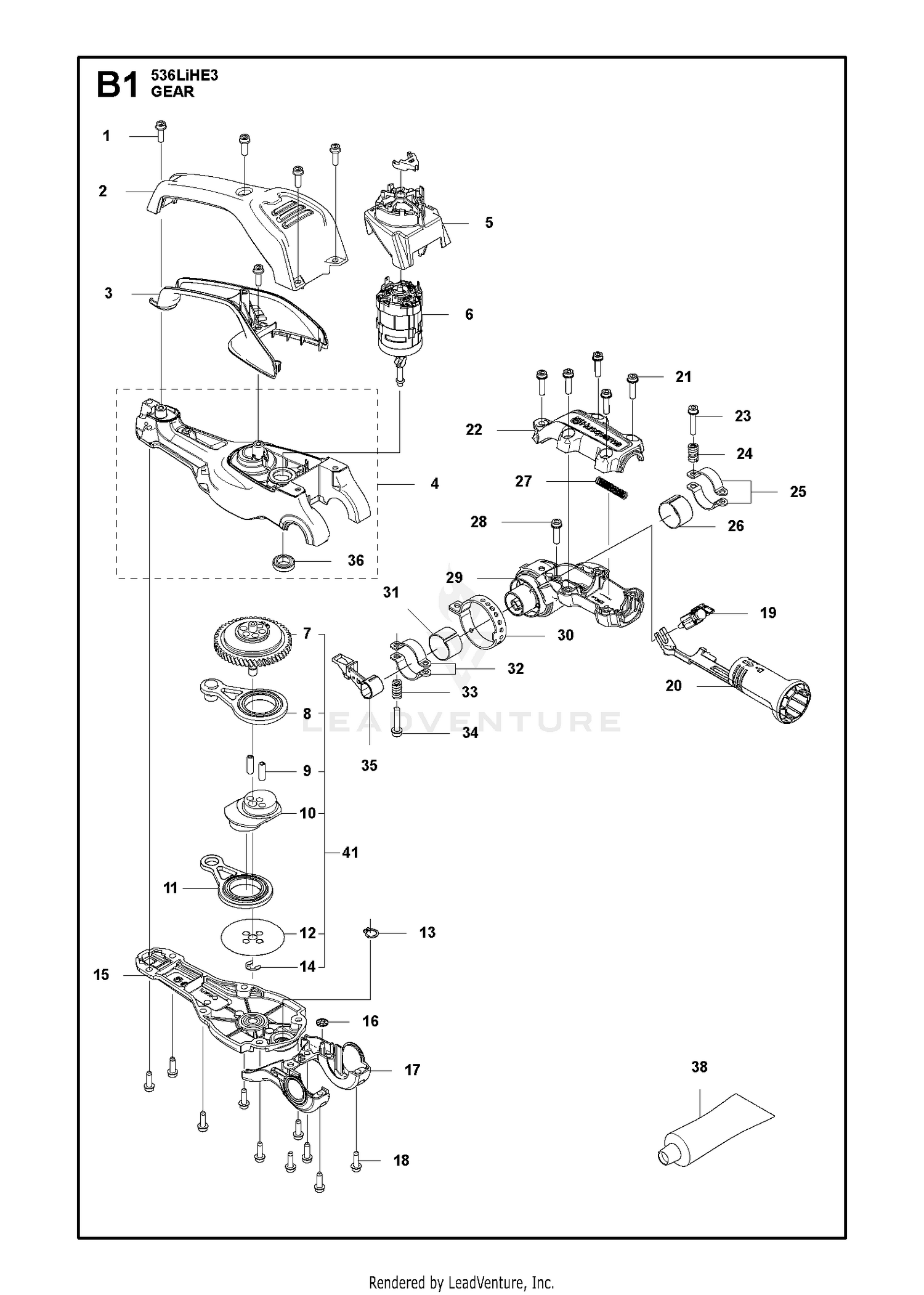

| Ref | Part Number | Description |
|---|
| 1 |
503217572 |
SCREW IHSCFT Price: $2.99 |
| 2 |
588224802 |
Motor This part replaces 588224801. Price: $12.99 |
| 3 |
588224901 |
MOTOR COVER LOWER Price: $11.99 |
| 4 |
599209701 |
Gears This part replaces 588564403. Price: $229.99 |
| 5 |
582341402 |
AIR CONDUCTOR MOTOR This part replaces 582341401. Price: $11.99 |
| 6 |
599209701 |
Gears This part replaces 588225801. Price: $229.99 |
| 7 |
588223801 |
GEAR ASSY Price: $99.99 |
| 8 |
531127701 |
NEEDS DESCRIPTION Price: $34.99 |
| 9 |
578002701 |
HEAVY DUTY DOWEL PIN PROJEKT 1 Price: $2.99 |
| 10 |
501707101 |
ECCENTRIC DISC GEAR Price: $32.99 |
| 11 |
531127701 |
NEEDS DESCRIPTION Price: $34.99 |
| 12 |
522714601 |
WASHER DISK DISC Price: $4.99 |
| 13 |
735311400 |
SEEGER CLIP Price: $2.99 |
| 14 |
578054901 |
LOCK WASHER Price: $2.99 |
| 15 |
588570007 |
COVER ASSEMBLY, GEAR HOUSING This part replaces 588570003. Price: $54.99 |
| 16 |
735583000 |
LOCK WASHER Price: $3.99 |
| 17 |
588217901 |
BEARING CAP Price: $19.99 |
| 18 |
503216872 |
SCREW IHSCFT Price: $2.99 |
| 19 |
588215901 |
LOCKING PIN ASSY Price: $11.99 |
| 20 |
588215001 |
HANDLE GRIP Price: $7.99 |
| 22 |
588215401 |
LID JOINT Price: $27.99 |
| 23 |
503200325 |
SCREW Price: $3.99 |
| 24 |
588218701 |
Springs Price: $2.99 |
| 25 |
588474901 |
BRAKE BAND ASSY POLE HEDGETRIM Price: $11.99 |
| 26 |
588217502 |
SLIDE RING SLIDE RING This part replaces 588217501. Price: $7.99 |
| 27 |
582537102 |
COMPRESSION SPRING SPRING This part replaces 582537101. Price: $3.99 |
| 28 |
503216872 |
SCREW IHSCFT Price: $2.99 |
| 29 |
588215501 |
HOUSING JOINT Price: $44.99 |
| 30 |
588216302 |
RING INDEX 520IHE3/IHT4 Price: $2.99 |
| 31 |
588217502 |
SLIDE RING SLIDE RING This part replaces 588217501. Price: $7.99 |
| 32 |
588474901 |
BRAKE BAND ASSY POLE HEDGETRIM Price: $11.99 |
| 33 |
588218701 |
Springs Price: $2.99 |
| 34 |
503200325 |
SCREW Price: $3.99 |
| 35 |
588219201 |
LEVER Price: $3.99 |
| 36 |
592994601 |
BALL BEARING 61801-2RS This part replaces 593209801. Price: $5.99 |
| 37 |
574316001 |
SWITCH Price: $11.99 |
| 41 |
599888501 |
GEAR ASSY GEAR ASSY KIT 520IHE Price: $179.99 |
