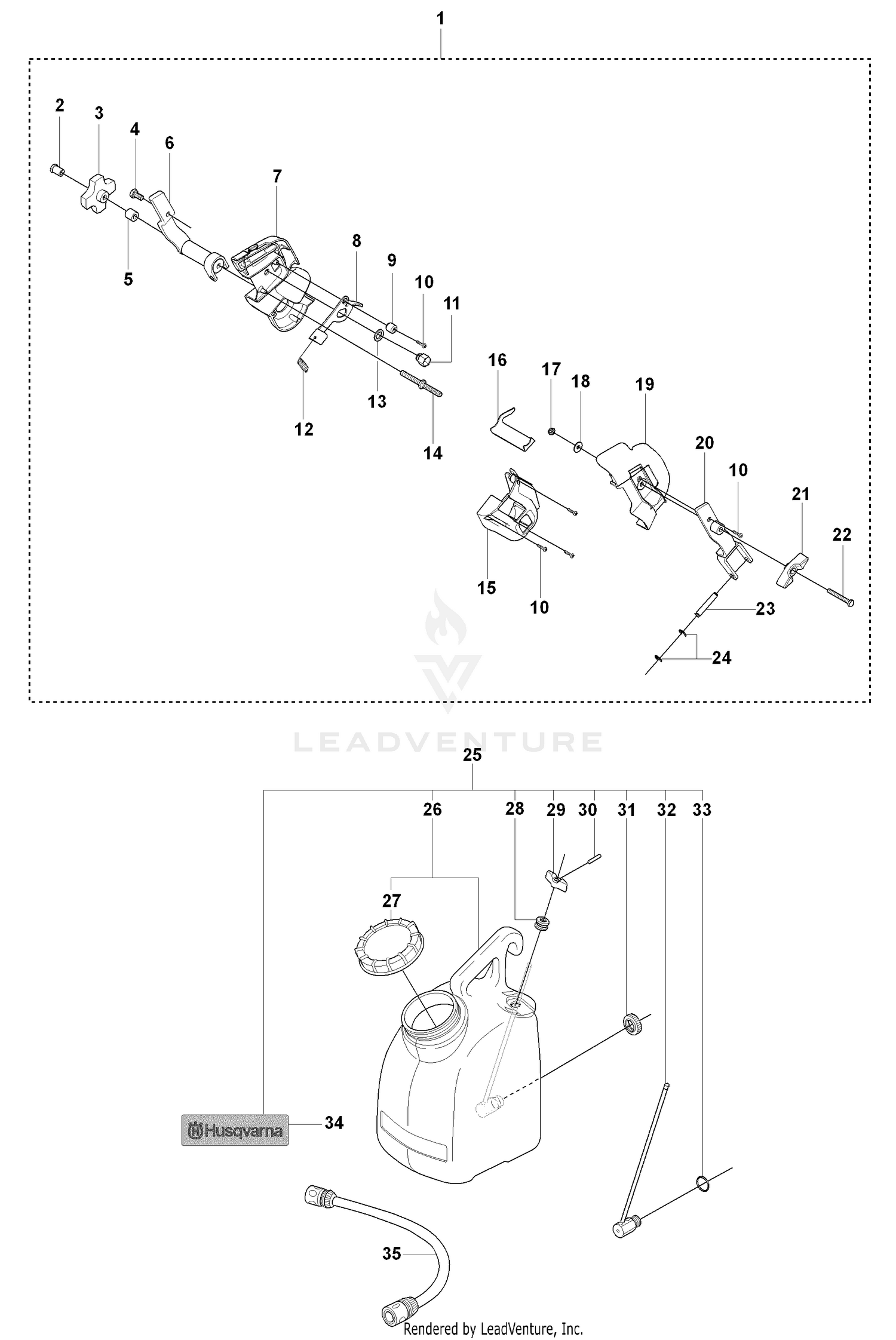

Holder Assy And Water Tank
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 544982701 | NUT Price: $7.28 |
| 3 | 501020001 | KNOB Price: Call Us |
| 4 | 725244951 | BOLT - M8X16 This part replaces 725244971. Price: $2.99 |
| 5 | 544925501 | SPACING SLEEVE Price: $9.99 |
| 6 | 33024-00 | NUT-LOCK, NI Price: $0.75 |
| 6 | 544957401 | HOLDER Price: $37.99 |
| 7 | 33014-00 | NUT-HEX Price: $0.25 |
| 7 | 544914401 | HOLDER Price: $24.99 |
| 8 | 3272-42 | PIN-COTTER Price: $0.25 |
| 8 | 544925701 | LEVER Price: $64.99 |
| 9 | 33095-00 | WASHER-FLAT Price: $0.25 |
| 9 | 544925801 | SHAFT Price: $14.99 |
| 10 | 33098-00 | WASHER-FLAT Price: $0.68 |
| 10 | 502465201 | SCREW Price: $3.57 |
| 11 | 544925601 | NUT Price: $25.99 |
| 11 | 74-9100 | PAD-PEDAL, FORWARD Price: $27.08 |
| 12 | 544982801 | SPRING Price: Call Us |
| 12 | 74-9110 | PAD-PEDAL, REVERSE Price: $13.49 |
| 13 | 501018001 | WASHER Price: $2.99 |
| 13 | 98-5474 | TRACTION PEDAL - WELDED Price: Call Us |
| 14 | 501020201 | SHAFT Price: $10.77 |
| 14 | 98-5445 | ROD END Price: $53.16 |
| 15 | 544914701 | HOLDER Price: $17.99 |
| 15 | 98-5466 | ROD - TRACTION Price: $53.39 |
| 16 | 233-37 | KNOB Price: $31.99 |
| 16 | 544925901 | SHEET Price: $19.99 |
| 17 | 732251601 | NUT FLANGE - M6 Price: $2.99 |
| 17 | 98-5479 | PLATE - CPL Price: Call Us |
| 18 | 734115441 | WASHER Price: $0.99 |
| 18 | 98-5481 | LEVER - BRAKE Price: $107.34 |
| 19 | 54-0960 | PARK BRAKE SPRING Price: $18.37 |
| 19 | 544914501 | HOLDER Price: $22.99 |
| 20 | 544957501 | HOLDER Price: $39.99 |
| 21 | 544980101 | PACKING Price: Call Us |
| 22 | 725238051 | SCREW M6X50 Price: $2.99 |
| 23 | 544924701 | SHAFT Price: $7.99 |
| 24 | 735311001 | O-RING Price: $3.99 |
| 27 | 506308501 | TANK CAP Price: $27.99 |
| 27 | 98-5476 | LEVER Price: $49.09 |
| 28 | 32121-6 | PIN-ROLL, SLOTTED Price: $0.28 |
| 28 | 504125017 | ANTIVIBE ELEMENT Price: $6.99 |
| 29 | 256-287 | BUSHING Price: $1.76 |
| 29 | 506309401 | KNOB Price: $2.11 |
| 30 | 720127152 | PIN Price: $2.38 |
| 31 | 506309201 | NUT Price: $11.86 |
| 32 | 506314101 | VALVE Price: $109.99 |
| 33 | 740481204 | O-RING Price: $4.99 |
| 34 | 506302002 | LABEL Price: $4.88 |
