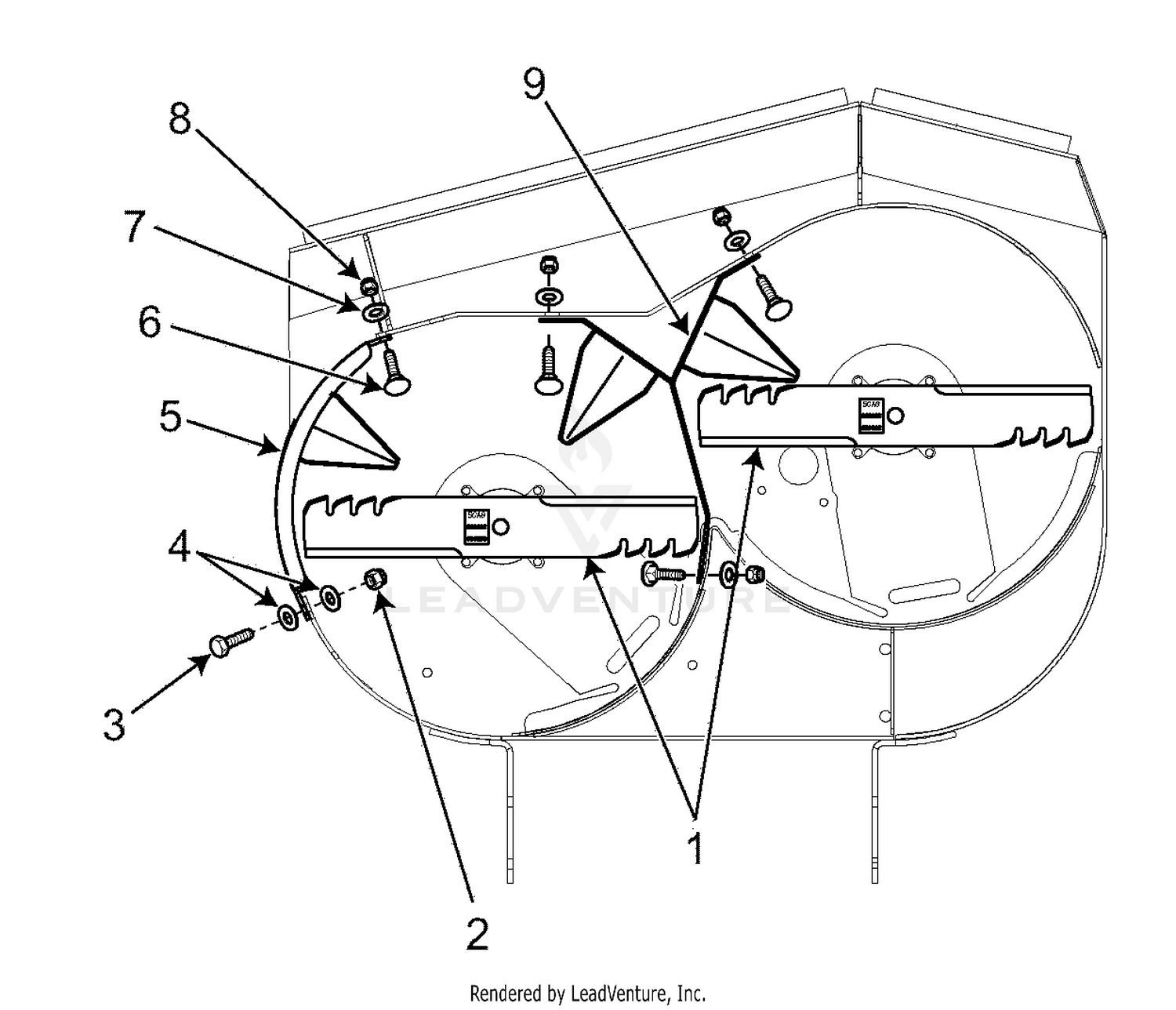

Underside View Of Standard (Tiger Cub)
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 483317 | CUTTER BLADE, 18.0 ELIM This part replaces 482235. Price: Call Us |
| 2 | 04021-10 | Elastic Stop Nut 5/16-18 Price: Call Us |
| 3 | 04001-09 | H.H. Bolt 5/16-18 x 1" Price: Call Us |
| 4 | 04040-15 | Flatwasher 5/16" Price: Call Us |
| 5 | 451364 | Mulch Plate Price: Call Us |
| 6 | 04003-23 | Carriage Bolt 3/8-16 x 1' Price: Call Us |
| 7 | 04041-07 | Flatwasher 3/8" Price: Call Us |
| 8 | 04021-09 | Elastic Stop Nut 3/8-16 Price: Call Us |
