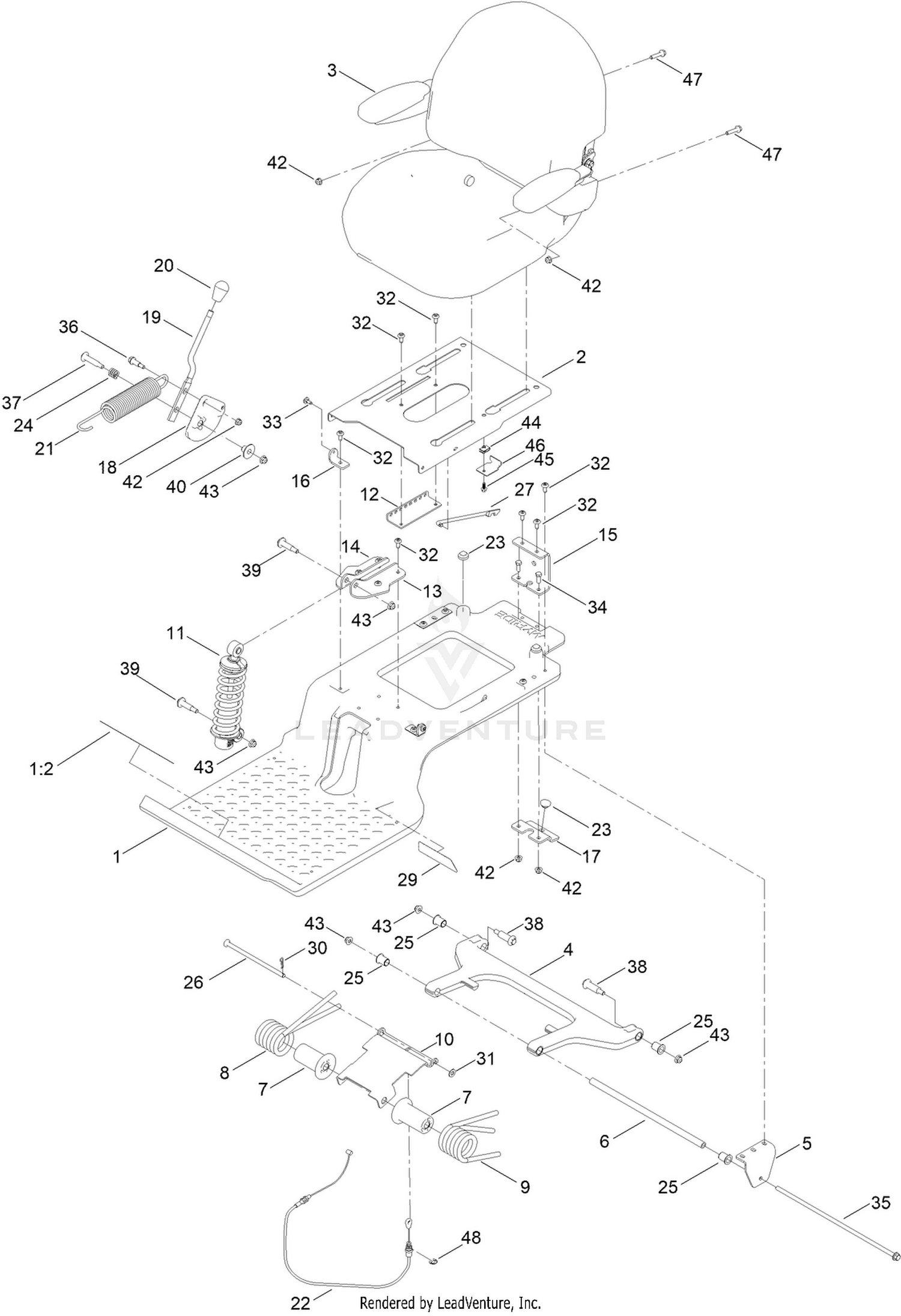

| Ref | Part Number | Description |
|---|
| 1 |
140-5046 |
SUBFRAME ASM Price: $190.49 |
| 2 |
138-7540-03 |
PAN-SEAT Price: $41.39 |
| 3 |
140-5044 |
SEAT ASM This part replaces 140-8303. Price: $343.76 |
| 4 |
138-2563 |
ARM, SWING Price: $55.94 |
| 5 |
138-7517 |
BRACKET-MOUNT, SWING ARM Price: $8.15 |
| 6 |
138-7549 |
TUBE-SPACER Price: $15.65 |
| 7 |
138-9776 |
RETAINER-SPRING Price: $2.00 |
| 8 |
137-7018 |
SPRING-TORSION, RH Price: $20.14 |
| 9 |
137-1983 |
SPRING-TORSION, LH Price: $20.14 |
| 10 |
138-7566-03 |
PLATE-ADJUSTER Price: $13.12 |
| 11 |
139-2427 |
SHOCK/SPRING ASM Price: $83.93 |
| 12 |
131-4008-03 |
BRACKET-LATCH, SEAT Price: $3.98 |
| 13 |
133-9318-03 |
BRACKET-SHOCK MOUNT, UPPER (LH) Price: $10.35 |
| 14 |
133-9319-03 |
BRACKET-SHOCK MOUNT, UPPER (RH) Price: $10.35 |
| 15 |
138-9788 |
BRACKET-CABLE Price: $8.38 |
| 16 |
138-7522 |
BRACKET-SEAT Price: $2.11 |
| 17 |
139-2361-03 |
BRACKET LOWER Price: $4.80 |
| 18 |
138-9814 |
PULLEY - CAM Price: $21.25 |
| 19 |
138-9822 |
LEVER - ADJUSTMENT Price: $8.14 |
| 20 |
140-5176 |
KNOB-MR Price: $6.70 |
| 21 |
138-9848 |
SPRING-EXTENSION Price: $33.56 |
| 22 |
138-9812 |
CABLE-ADJUSTMENT, MYRIDE Price: $25.73 |
| 23 |
135-0505 |
BUMPER-SEAT Price: $0.50 |
| 24 |
139-5858 |
SPRING-COMPRESSION Price: $1.10 |
| 25 |
138-2573 |
BUSHING-FLANGE Price: $1.90 |
| 26 |
138-9813 |
ROD-ADJUSTMENT Price: $2.57 |
| 27 |
138-2596 |
ROD-PROP, SEAT Price: $6.70 |
| 29 |
140-0357 |
DECAL-MYRIDE Price: $1.67 |
| 30 |
1-806003 |
PIN-COTTER Price: $1.39 |
| 31 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 32 |
138-9753 |
SCREW Price: $0.39 |
| 33 |
120-7950 |
SCREW-SHOULDER Price: $1.79 |
| 34 |
322-4 |
SCREW-HH Price: $0.35 |
| 35 |
138-7548 |
SCREW-HHF Price: $9.51 |
| 36 |
140-3759 |
BOLT-SHOULDER,HHF Price: $1.19 |
| 37 |
92-1057 |
BOLT-SHOULDER Price: $3.05 |
| 38 |
138-2547 |
BOLT-SHOULDER Price: $1.44 |
| 39 |
136-7198 |
BOLT-SHOULDER Price: $1.49 |
| 40 |
139-5800 |
BUSHING - FLANGE Price: $0.43 |
| 42 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 43 |
119-4042 |
NUT-HF, NI Price: $0.69 |
| 44 |
107069 |
CLIP Price: $1.79 |
| 45 |
99-6810 |
SCREW-HHF Price: $3.09 |
| 46 |
138-7214 |
BRACKET-STOP, SEAT Price: $1.46 |
| 47 |
140-5024 |
SCREW-HHF Price: $0.77 |
