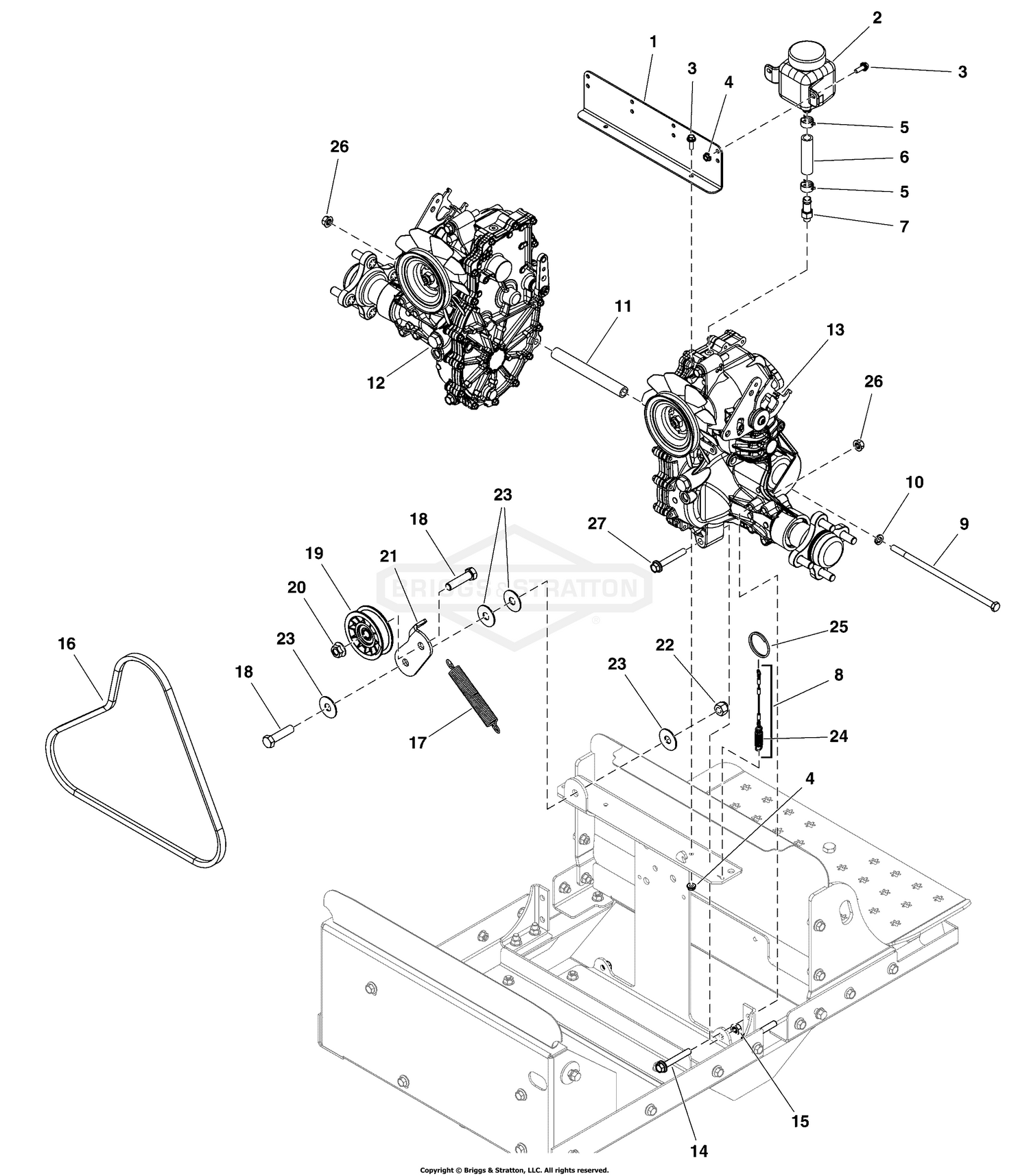

Hydraulic Group
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5107366AAFS | MOUNT, TANK Price: $25.57 |
| 2 | 5100473SM | RESERVOIR Price: $38.02 |
| 3 | 5106872FS | BOLT Price: $3.26 |
| 4 | 5025126FS | NUT Price: $3.72 |
| 5 | 5025474SM | CLAMP - HOSE Price: $2.97 |
| 6 | 5050857X1P75 | HOSE, 1/2" PUSH-ON, 1.75" Price: $1.40 |
| 7 | 5107224FS | FITTING Price: $12.12 |
| 9 | 5025667FS | BOLT Price: $6.49 |
| 10 | 5025156FS | WASHER Price: $3.15 |
| 11 | 5107370FS | SPACER Price: $21.04 |
| 15 | 5025666FS | NUT Price: $2.65 |
| 16 | 5106813FS | BELT Price: $29.30 |
| 17 | 5106923FS | SPRING Price: $10.02 |
| 18 | 5025017X16YP | BOLT, 1/2-13 X 2 GD5 Price: $3.94 |
| 19 | 5107103FS | PULLEY, IDLER Price: $21.84 |
| 20 | 770225 | NUT Price: $2.76 |
| 21 | 5107365AAFS | ARM, IDLER Price: $28.10 |
| 22 | 5025056FS | NUT Price: $3.98 |
| 23 | 5107348FS | WASHER Price: $2.12 |
| 24 | 5106888FS | SPRING, EXTENSION Price: $5.77 |
| 25 | 5108012FS | KEY Price: $1.64 |
| 26 | 5025394SM | NUT, 3/8-16 HEX NYLOCK Price: $3.82 |
