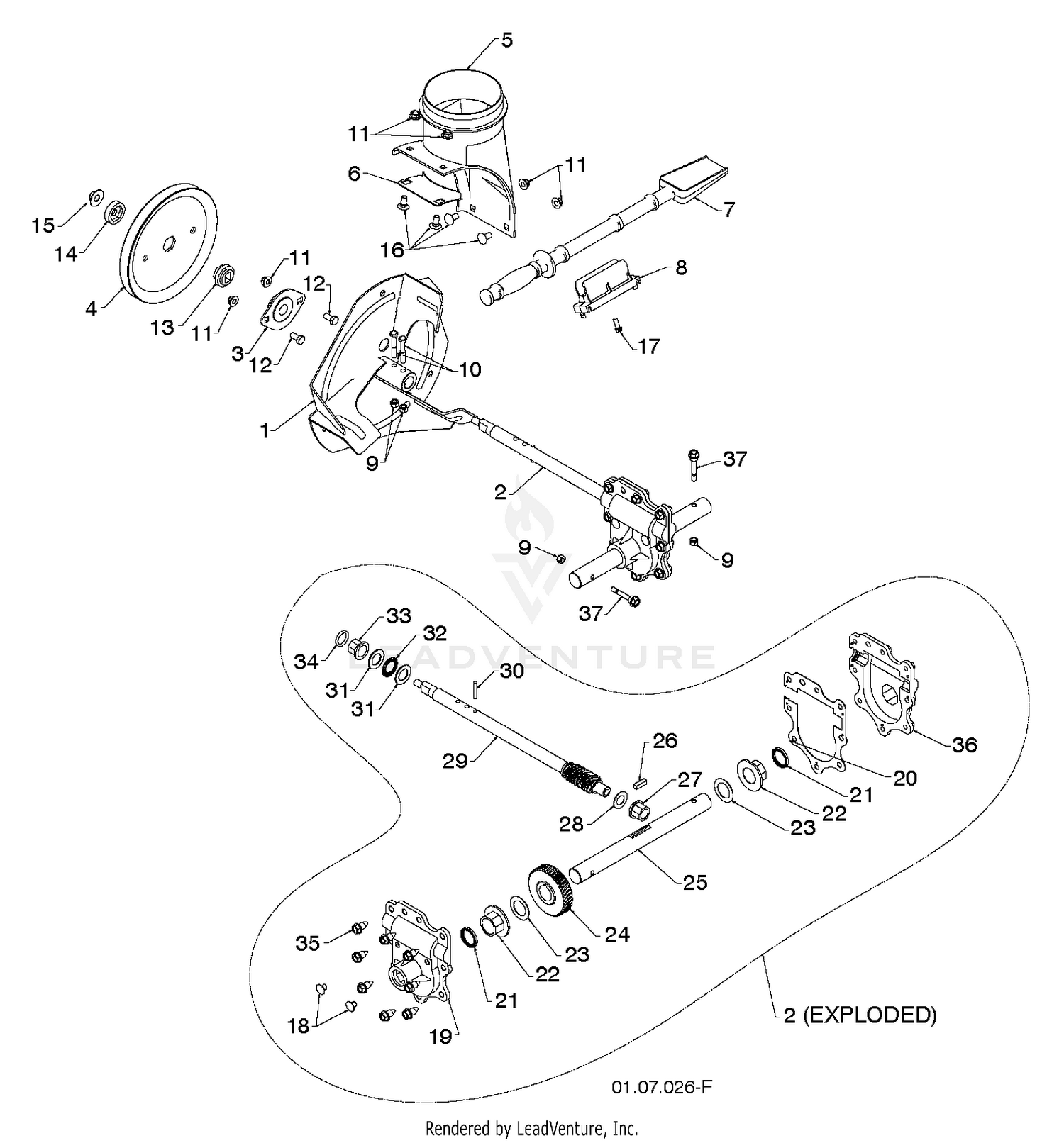

| Ref | Part Number | Description |
|---|
| 1 |
532435775 |
IMPELLER This part replaces 532184105. Price: $56.99 |
| 1 |
92-5841 |
TRACTION HOSE ASM Price: $143.84 |
| 2 |
237-65 |
O-RING Price: $2.50 |
| 2 |
532429659 |
KIT.GEARBOX.SNO This part replaces 532427148. Price: $249.99 |
| 3 |
340-17 |
FITTING-ELBOW, 90 DEG Price: $42.29 |
| 3 |
532188909 |
BEARING FLANGE Price: $12.99 |
| 4 |
237-80 |
O-RING Price: $6.10 |
| 4 |
532427146 |
PULLEY.FLANGE.IMPELLER Price: $17.99 |
| 5 |
237-22 |
O-RING Price: $2.43 |
| 5 |
532442438 |
BASE.DISCHARGE.CHUTE Price: $13.99 |
| 6 |
324-4 |
SCREW-HH Price: $0.95 |
| 6 |
532436236 |
CORNER BRACKET This part replaces 532184095. Price: $2.99 |
| 7 |
532192199 |
CLEAN OUT TOOL Price: $19.99 |
| 8 |
237-30 |
O-RING Price: $2.50 |
| 8 |
532405400 |
CLIP.CLEANOUT.TOOL Price: $2.99 |
| 9 |
539976978 |
NUT.1/4C.NYLOC This part replaces 873800400. Price: $1.49 |
| 9 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 10 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 10 |
874780426 |
SCREW.HEX.HD1/4-20X Price: $3.49 |
| 11 |
2412-104 |
CLAMP-R Price: $2.37 |
| 11 |
532427942 |
NUTNYLOK.FLRANGE.5/16-18 Price: $2.99 |
| 12 |
32128-20 |
NUT-HF Price: $0.99 |
| 12 |
532163183 |
BOLT, HEX HEAD 5/16-18 Price: $2.99 |
| 13 |
340-155 |
FITTING-STRAIGHT Price: $28.90 |
| 13 |
532427145 |
HUB.IMP.PULLEY.D-SHAFT Price: $3.99 |
| 14 |
237-79 |
O-RING Price: $5.46 |
| 14 |
532427154 |
SLEEVE.IMP.PULLEY.D-SHAFT Price: $2.99 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $2.49 |
| 16 |
532180355 |
BOLT.CARRIAGE.5/16-18X Price: $3.99 |
| 16 |
88-1290-03 |
BRACKET-ROD, SEAT This part replaces 88-1290. Price: $14.31 |
| 17 |
321-15 |
SCREW-HH Price: $0.61 |
| 17 |
532194189 |
SCREW.HWH.13-16-5.8.BZP Price: $3.99 |
| 18 |
322-6 |
SCREW-HH Price: $0.45 |
| 18 |
532086447 |
Plug This part replaces 532407760. Price: $3.99 |
| 19 |
3256-71 |
WASHER-FLAT Price: $0.81 |
| 20 |
532427345 |
GASKET.GEAR.BOX Price: $3.99 |
| 20 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 21 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 21 |
532174698 |
SEAL, OIL This part replaces 532407770. Price: $3.99 |
| 22 |
532174701 |
BUSHING FLANGE 1" This part replaces 532407762. Price: $27.99 |
| 22 |
76-9970 |
FOUR WHEEL DRIVE VALVE ASM Price: $1,652.64 |
| 23 |
340-55 |
FITTING-HYD, 45 DEG Price: $85.06 |
| 23 |
532007396 |
Thrust Bearing Race This part replaces 532174697. Price: $3.99 |
| 24 |
532429659 |
KIT.GEARBOX.SNO This part replaces 532407763. Price: $249.99 |
| 25 |
532174657 |
SHAFT, AUGER This part replaces 532407764. Price: $39.99 |
| 25 |
92-5828 |
HOSE ASM Price: $181.46 |
| 26 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $3.99 |
| 26 |
86-2710 |
HOSE ASM Price: $149.65 |
| 27 |
340-157 |
FITTING-HYD, TEE Price: $49.83 |
| 27 |
532174686 |
BUSHING FLANGE 5/8 This part replaces 532407758. Price: $19.99 |
| 28 |
340-4 |
FITTING-STRAIGHT Price: $11.58 |
| 28 |
532174683 |
WASHER, THRUST 5/8 Price: $3.99 |
| 29 |
532427147 |
SHAFT.IMPELLER.D-SHAFT Price: $82.99 |
| 29 |
84-0720 |
VALVE-FUSE, VELOCITY Price: $407.33 |
| 30 |
340-165 |
FITTING-HYD, ELBOW Price: $54.87 |
| 30 |
532007836 |
ROLL PIN This part replaces 532184205. Price: $3.99 |
| 31 |
340-7 |
FITTING-STRAIGHT Price: $14.00 |
| 31 |
532174681 |
WASHER, THRUST 3/4 Price: $9.99 |
| 32 |
532174684 |
BEARING TRUST 3/4 Price: $5.99 |
| 32 |
86-2800 |
HOSE-SUCTION Price: $31.54 |
| 33 |
532407769 |
BUSHING, FLANGE 3/4 Price: $3.99 |
| 34 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 34 |
532407768 |
O-RING Price: $3.99 |
| 35 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532407767. Price: $2.49 |
| 35 |
95-4356 |
FITTING Price: $67.28 |
| 36 |
237-146 |
O-RING Price: $3.75 |
| 37 |
340-18 |
FITTING-HYD, 90 DEG Price: $38.93 |
| 38 |
86-5500 |
DISCONTINUED Price: Call Us |
| 39 |
86-3150 |
HOSE ASM Price: $122.60 |
| 40 |
340-159 |
FITTING-HYD, 90 DEG Price: $55.33 |
| 41 |
86-5810 |
DISCONTINUED Price: Call Us |
| 42 |
86-5570 |
HOSE ASM Price: $151.86 |
| 43 |
92-5830 |
TRACTION HOSE ASM Price: $199.33 |
| 44 |
95-4354 |
DISCONTINUED Price: Call Us |
| 45 |
86-5480 |
NIPPLE-TEST Price: $48.77 |
| 46 |
354-79 |
CAP-DUST Price: $7.81 |
| 47 |
340-115 |
FITTING-TEE, SWIVEL NUT Price: $56.09 |
