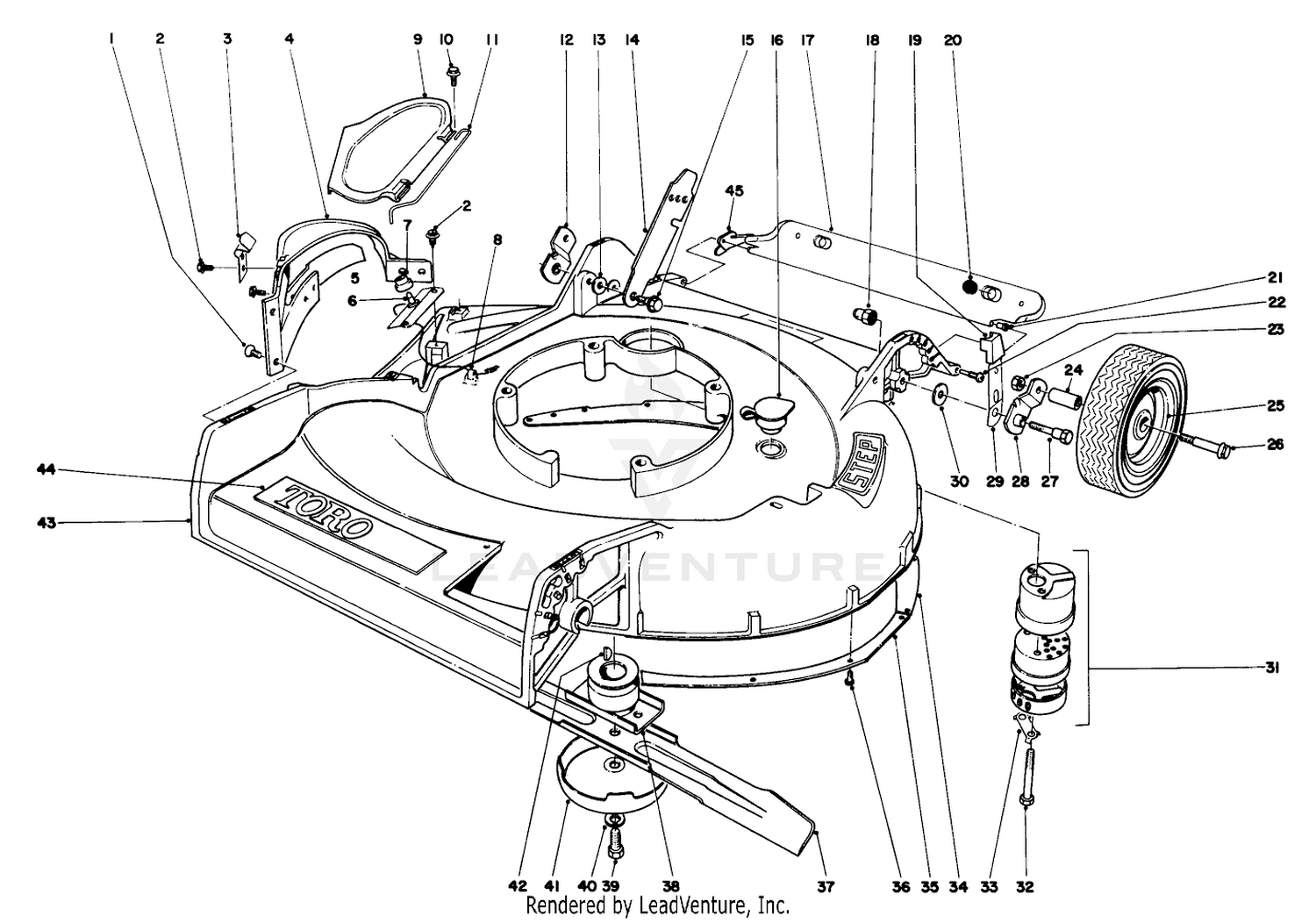

| Ref | Part Number | Description |
|---|
| 1 |
11-3010 |
DISCONTINUED Price: Call Us |
| 2 |
32140-91 |
Screw Price: Call Us |
| 3 |
12-1170 |
DISCONTINUED Price: Call Us |
| 4 |
12-1160 |
Deflector (Incl. Ref. Nos. 1-4) Price: Call Us |
| 5 |
10-8960 |
DefIector Bar Price: Call Us |
| 6 |
12-4940 |
DISCONTINUED Price: Call Us |
| 7 |
12-4930 |
DISCONTINUED Price: Call Us |
| 8 |
2412-9 |
Clip Price: Call Us |
| 9 |
17-1690 |
Deflector Cover Price: Call Us |
| 10 |
12-5450 |
SCREW Price: $7.99 |
| 11 |
17-4820 |
Hinge Spring Price: Call Us |
| 12 |
8-4260 |
DISCONTINUED Price: Call Us |
| 13 |
3-3287 |
SPACER Price: $3.69 |
| 14 |
43-1550 |
HANDLE LATCH This part replaces 5-2446. Price: Call Us |
| 15 |
5-2490 |
SCREW-SHOULDER Price: $8.25 |
| 16 |
6-4500 |
WASHOUT PLUG Price: $6.61 |
| 17 |
28-3780 |
SHIELD - TRAILING This part replaces 19-5780. Price: Call Us |
| 18 |
12-2080 |
HANDLE PIVOT NUT Price: $14.79 |
| 19 |
25-7740 |
KNOB-ARM This part replaces 8-4220. Price: $3.38 |
| 20 |
5-6450 |
DISCONTINUED Price: Call Us |
| 21 |
8-6080 |
DISCONTINUED Price: Call Us |
| 22 |
8-6160 |
SAFTEY SHIELD SCREW Price: Call Us |
| 23 |
3296-6 |
NUT-LOCK This part replaces 32146-12. Price: $1.49 |
| 24 |
27-6250 |
BUSHING This part replaces 17-4560. Price: $2.17 |
| 25 |
99-5256 |
DISCONTINUED This part replaces 17-4120. Price: Call Us |
| 26 |
99-5651 |
WHEEL BOLT & NUT This part replaces 3-2652. Price: $1.15 |
| 28 |
98-1511 |
PIVOT ARM ASM A PLTD This part replaces 8-4280. Price: $21.58 |
| 29 |
8-3840 |
DISCONTINUED Price: Call Us |
| 30 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 31 |
5-4769 |
MUFFLER ASM Price: $36.00 |
| 32 |
321-20 |
SCREW-HH Price: $6.79 |
| 33 |
3-5094 |
CLIP - LOCKING Price: $6.65 |
| 34 |
8-5550 |
Main Skirt Price: Call Us |
| 35 |
8-5570 |
Secondary Skirt Price: Call Us |
| 36 |
32144-12 |
DISCONTINUED Price: Call Us |
| 37 |
8-5230-03 |
BLADE-21" This part replaces 8-5230. Price: $22.43 |
| 38 |
8-5370 |
BLADE RETAINER WA Price: $63.28 |
| 39 |
3-5246 |
SPECIAL SCREW Price: Call Us |
| 40 |
3253-22 |
WASHER-LOCK Price: $2.09 |
| 41 |
80-2770 |
CUP-SCALP, ANTI This part replaces 8-4240. Price: $10.48 |
| 42 |
3257-3 |
KEY-WOODRUFF Price: $0.99 |
| 43 |
5-7929 |
Housing (Incl. Ref. Nos. 34, 35 36) Price: Call Us |
| 44 |
17-4590 |
Toro Emblem Price: Call Us |
| 45 |
19-5680 |
DISCONTINUED Price: Call Us |
