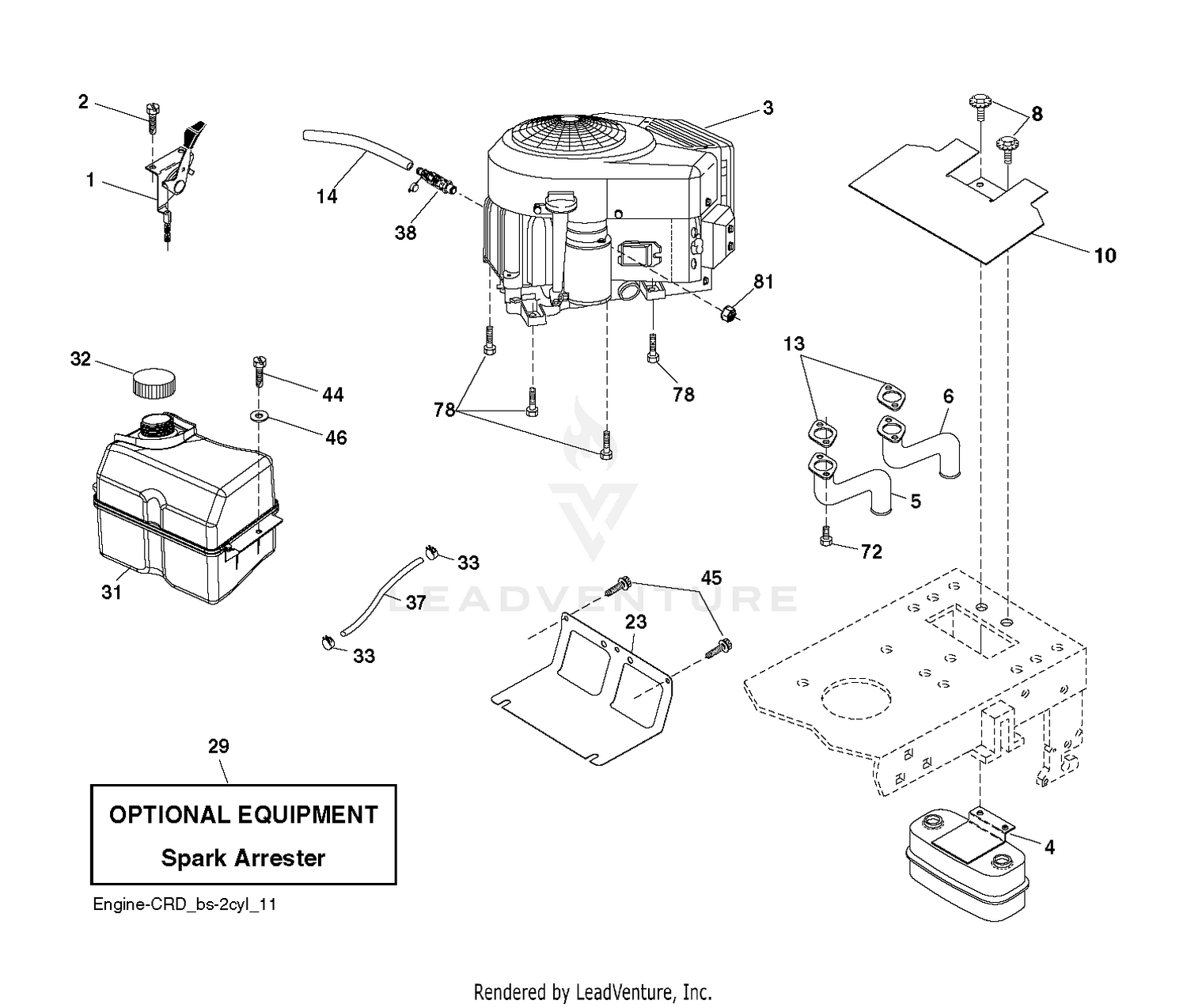

| Ref | Part Number | Description |
|---|
| 1 |
532424686 |
Price: $9.99 |
| 2 |
539990071 |
HCS.1/4-20.X1/2 This part replaces 817720408. Price: $1.99 |
| 3 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 4 |
140-6302-01 |
FORK-CASTOR This part replaces 92-7750. Price: $168.99 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $45.99 |
| 5 |
327-24 |
SCREW-HH Price: $7.99 |
| 5 |
532159955 |
EXHAUST TUBE LH *SUBS/2* Price: $25.99 |
| 6 |
532160589 |
EXHAUST TUBE RH Price: $39.99 |
| 8 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 8 |
93-9939 |
TIRE Price: $34.55 |
| 9 |
93-4239 |
RIM-WHEEL, HALF Price: $29.68 |
| 10 |
532434017 |
SHIELD.HEAT.MUFFLER Price: $11.99 |
| 10 |
93-5980 |
HUB Price: $67.14 |
| 11 |
93-4241 |
SPACER-BEARING, INNER Price: $26.72 |
| 12 |
120-5378 |
BEARING-BALL This part replaces 93-4237. Price: $13.84 |
| 13 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $2.99 |
| 14 |
68-8950 |
TUBE-INNER (W/VALVE) Price: $26.99 |
| 15 |
93-4242 |
PLATE Price: $11.21 |
| 16 |
32128-16 |
NUT-HHF Price: $0.54 |
| 17 |
95-2741 |
RIM-WHEEL, HALF Price: $25.01 |
| 19 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 20 |
104-2547 |
SPACER INNER This part replaces 251-332. Price: $25.11 |
| 21 |
251-321 |
BEARING-BALL, FLANGED Price: $22.10 |
| 23 |
532169837 |
SHEILD.BROWNING.DBR.GUARD Price: $7.99 |
| 29 |
532137180 |
ARRESTER SPARK (OPTIONAL) Price: $128.99 |
| 31 |
532407551 |
Price: $22.99 |
| 32 |
581075501 |
CAP.FUEL.TANK.SS/SNO.EPA.DOME This part replaces 532430220. Price: $14.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
532137040 |
LINE.FUEL.20 Price: $3.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN Price: $11.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 46 |
819091416 |
WASHER Price: $3.99 |
| 72 |
532183906 |
SCREW.SOCKET.HEAD.5/16-18 Price: $3.99 |
| 78 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
