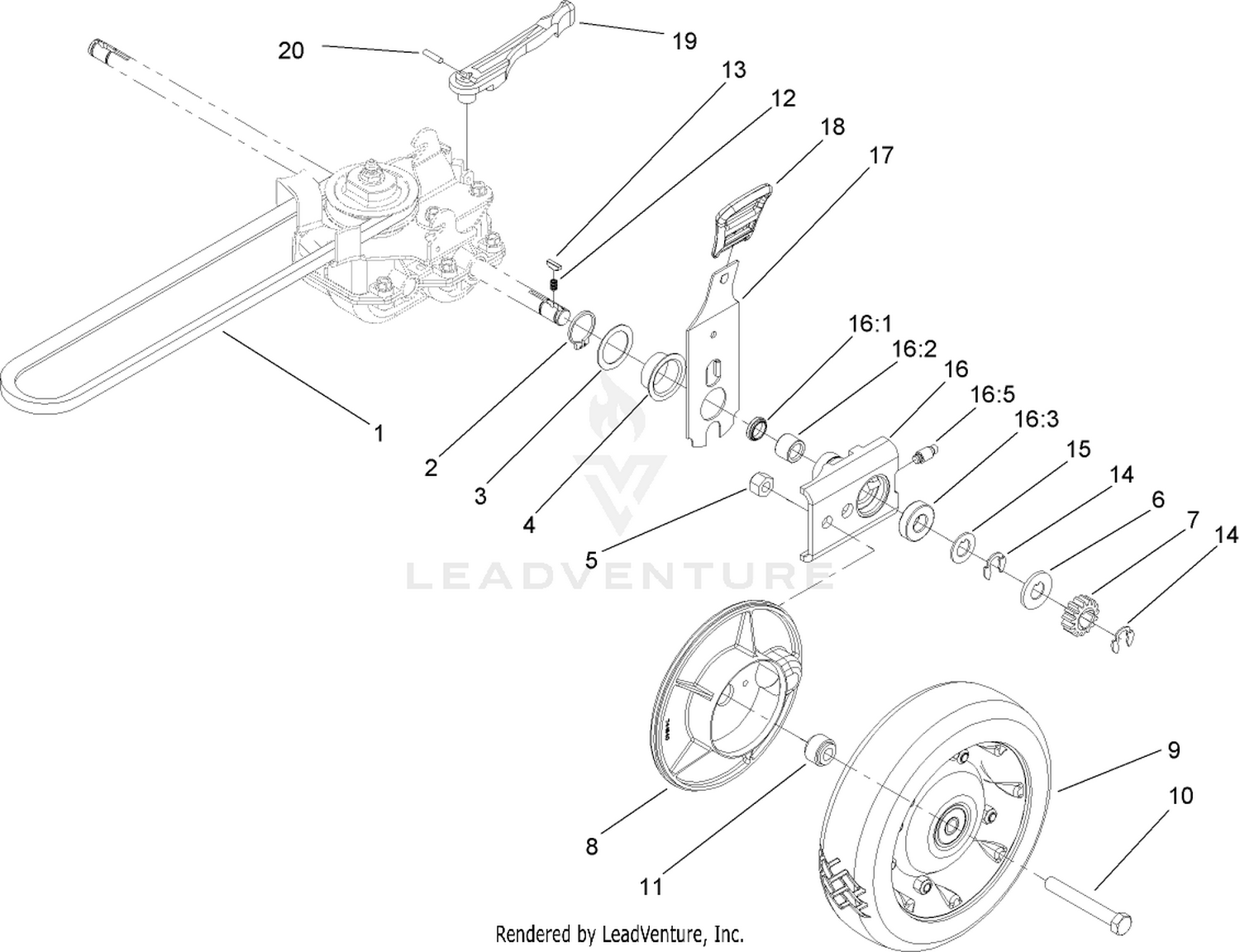

| Ref | Part Number | Description |
|---|
| 1 |
36-8070 |
V-BELT Price: $16.41 |
| 2 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 3 |
74-1810 |
WASHER Price: $0.39 |
| 4 |
48-2170 |
CAP-END Price: $6.69 |
| 5 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 6 |
62-3830 |
WASHER-THRUST, OUTER Price: $2.83 |
| 7 |
39-9160 |
GEAR-PINION Price: $9.84 |
| 8 |
74-1640 |
COVER-WHEEL Price: $9.47 |
| 9 |
121-1379 |
WHEEL AND TIRE ASM This part replaces 100-2860. Price: $81.03 |
| 10 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 11 |
74-1650 |
SPACER-COVER, WHEEL Price: $5.98 |
| 12 |
39-9650 |
SPRING-COMPRESSION Price: $2.01 |
| 13 |
612066 |
KEY Price: $1.74 |
| 14 |
65-2720 |
RING-RETAINING,CLIP This part replaces 32151-68. Price: $0.99 |
| 15 |
49-7700 |
WASHER-THRUST, OUTER Price: $1.49 |
| 16 |
74-1851 |
Pivot Arm Assembly (Incl. Ref. #1, 3, 6 21) Price: $62.11 |
| 17 |
115-0981 |
REAR SPRING ARM ASM This part replaces 110-0538. Price: $8.74 |
| 18 |
110-0549 |
KNOB-HOC Price: $1.08 |
| 19 |
74-1960 |
LEVER-SHIFT Price: $8.55 |
| 20 |
32121-99 |
PIN-COIL Price: $0.80 |
