| Ref | Part Number | Description |
|---|
| 1 |
105-7352 |
RH DECK ASM Price: $2,532.78 |
| 1 |
105-7353 |
LH DECK ASM Price: $1,718.18 |
| 1 |
144925 |
SUB= 123899X Price: Call Us |
| 2 |
105-7430-01 |
RH SKID ASM Price: $180.97 |
| 2 |
105-7437-01 |
LH SKID ASM Price: $197.10 |
| 2 |
74760412 |
BOLT LT Price: Call Us |
| 3 |
19091016 |
WASHER Price: Call Us |
| 3 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 4 |
10040400 |
LOCKWASHER Price: Call Us |
| 4 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 5 |
325-17 |
SCREW-HH Price: $2.90 |
| 6 |
29-4820 |
ROLLER Price: $14.88 |
| 6 |
73220400 |
SUB= 50675 Price: Call Us |
| 7 |
109238X |
TUBE T Price: Call Us |
| 7 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 8 |
105-7469 |
LATCH ASM Price: $183.55 |
| 9 |
109596X |
HOSE CLAMP T Price: Call Us |
| 9 |
1278 |
WASHER Price: $1.89 |
| 10 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 11 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 12 |
283-61 |
PIN-YOKE Price: $1.56 |
| 13 |
106-4317 |
SUPPORT-SPRING Price: $119.93 |
| 14 |
86-2560-03 |
SPRING-COMP This part replaces 86-2560. Price: $48.73 |
| 15 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 15 |
147688 |
FASTNER.SNAP-IN Price: Call Us |
| 16 |
153664 |
SWITCH INTERLOCK Price: Call Us |
| 16 |
86-2120 |
ROLLER-LOCK Price: $25.12 |
| 17 |
86-2090 |
BUSHING Price: $2.17 |
| 18 |
131-4293 |
PIN PIVOT This part replaces 106-7171. Price: $27.48 |
| 19 |
10090400 |
SUB= 10040400 Price: Call Us |
| 19 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 20 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 20 |
73350400 |
NUT Price: Call Us |
| 21 |
112-9117 |
LINK ASSEMBLY KIT This part replaces 105-7440. Price: $390.80 |
| 22 |
322-10 |
SCREW-HH Price: $0.70 |
| 22 |
4152J |
HEADLAMP BULB Price: Call Us |
| 23 |
9547 |
WASHER-THRUST This part replaces 256-260. Price: $5.69 |
| 24 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 25 |
146147 |
CABLE.BTRY.6GA.RD Price: Call Us |
| 25 |
32128-54 |
NUT-HF Price: $5.25 |
| 26 |
108824X |
FUSE HYT Price: Call Us |
| 26 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 27 |
105-7482 |
PIN-LATCH Price: $51.62 |
| 28 |
4207J |
CABLE T Price: Call Us |
| 28 |
53-6380 |
WASHER-FLAT Price: $8.62 |
| 29 |
121305X |
SWITCH SEAT Price: Call Us |
| 29 |
323-4 |
SCREW-HH Price: $1.02 |
| 30 |
140301 |
SWITCH IGN 4POS Price: Call Us |
| 30 |
325-8 |
SCREW-HH Price: $3.52 |
| 31 |
124211X |
NUT IGNITION Price: Call Us |
| 31 |
3217-9 |
NUT-HH Price: $0.37 |
| 32 |
141226 |
COVER KEY SWITCH Price: Call Us |
| 32 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 33 |
107-0170-03 |
STRAP-WING Price: $28.87 |
| 33 |
122147X |
KEY Price: Call Us |
| 34 |
106-4334 |
SHIELD-FLEX Price: $65.42 |
| 35 |
107-0171-03 |
STRAP-SHIELD Price: $23.15 |
| 36 |
107-0166 |
TAB-SWITCH Price: $20.13 |
| 40 |
156442 |
HARNESS-IGNITION Price: Call Us |
| 41 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 42 |
131563 |
SUB= 154336 Price: Call Us |
| 43 |
145673 |
SUB= 146154 Price: Call Us |
| 44 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 45 |
121433X |
SUB= 122822X Price: Call Us |
| 47 |
951-11499A |
OIL SEAL This part replaces 951-11499. Price: $12.13 |

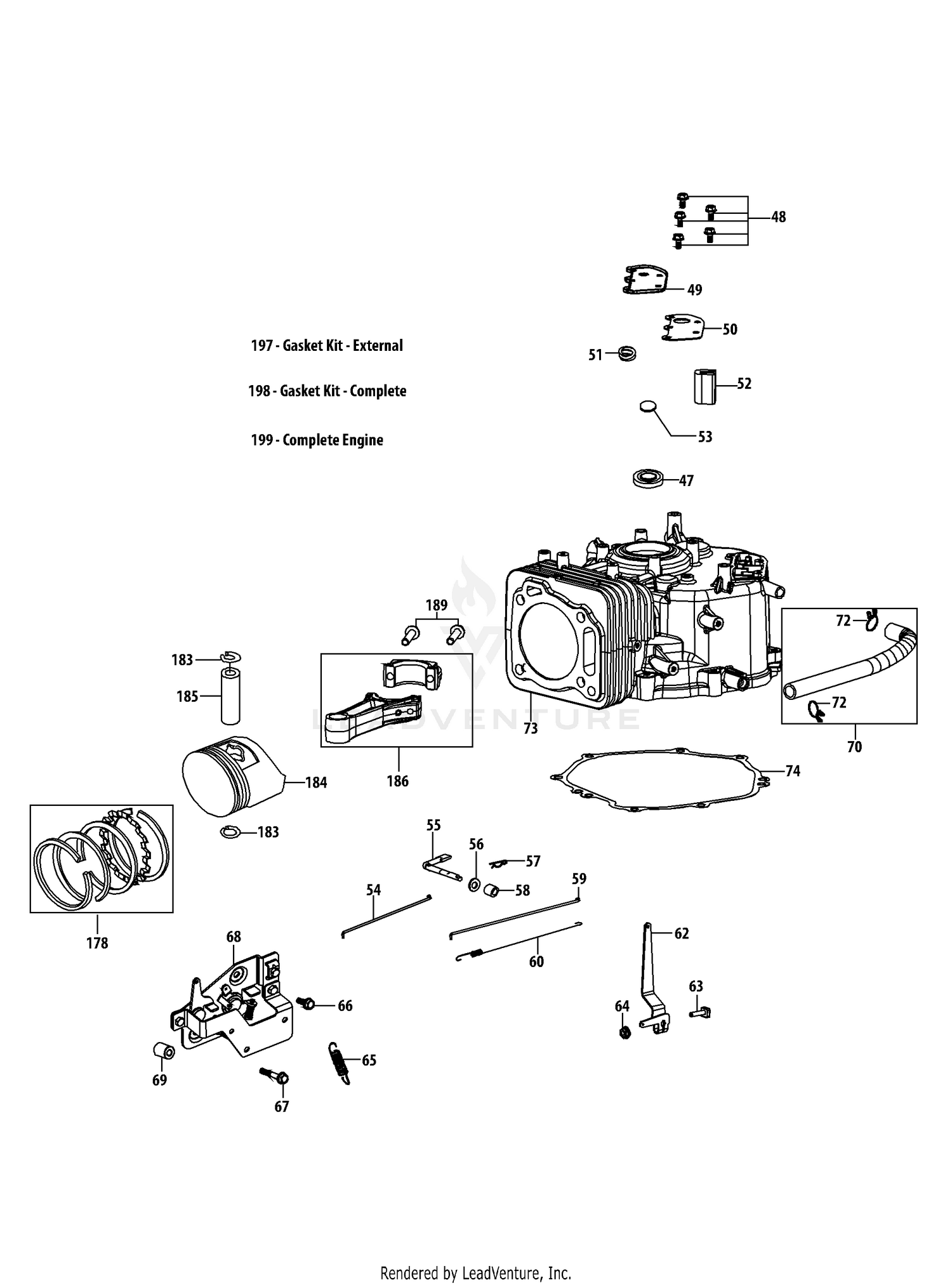

| 48 |
710-04916 |
Bolt M6×14 Price: $3.86 |
| 49 |
951-12770A |
Breather Cover Plate This part replaces 951-14456. Price: $6.79 |
| 50 |
951-12226 |
Breather Gasket Price: $4.45 |
| 51 |
951-12685 |
Umbrella Valve Price: $5.15 |
| 52 |
141940 |
PROTECTION LOOP Price: Call Us |
| 52 |
951-12227 |
Mesh Screen Price: $4.95 |
| 53 |
951-12686 |
Umbrella Valve Set Price: $5.15 |
| 54 |
951-12228 |
Choke Linkage Price: $3.60 |
| 55 |
951-12229 |
Governor Arm Shaft Price: $6.19 |
| 56 |
736-04558 |
Governor Washer Price: $3.35 |
| 57 |
714-04078 |
Cotter Pin This part replaces 714-04074. Price: $3.66 |
| 58 |
951-11902A |
OIL SEAL This part replaces 951-11574. Price: $3.36 |
| 59 |
951-12230 |
Throttle Linkage Price: $3.56 |
| 60 |
951-12231 |
Throttle Linkage Spring Price: $3.68 |
| 62 |
951-12232 |
Governor Arm Price: $21.03 |
| 63 |
710-04908 |
Governor Arm Bolt Price: $5.65 |
| 64 |
712-05015 |
Nut M6 This part replaces 712-04212. Price: $5.78 |
| 65 |
951-12233 |
Governor Spring Price: $3.96 |
| 66 |
710-04979 |
Bolt M6×18 Price: $3.42 |
| 67 |
710-05310 |
Bolt M6×38 Price: $3.32 |
| 68 |
951-15513 |
COMBINATION CONTROL BRACKET ZS This part replaces 951-14457. Price: $24.76 |
| 69 |
750-05530 |
Component Bracket Spacer Price: $3.32 |
| 70 |
951-12235 |
Breather Hose Assembly Price: $12.06 |
| 72 |
951-12236 |
BREATHER HOSE CLAMP Not Available Price: |
| 74 |
951-12237 |
Crankcase Cover Gasket Price: $19.48 |
| 178 |
951-12275 |
Piston Ring Set Price: $22.90 |
| 183 |
951-11953A |
PISTON PIN SNAP RING This part replaces 951-11953. Price: $3.42 |
| 184 |
951-12276 |
Piston Price: $47.51 |
| 185 |
951-11954A |
PISTON PIN This part replaces 951-11954. Price: $7.31 |
| 186 |
951-12277 |
Connecting Rod Assembly Price: $67.11 |
| 189 |
710-05319 |
Connecting Rod Bolt Price: $4.20 |
