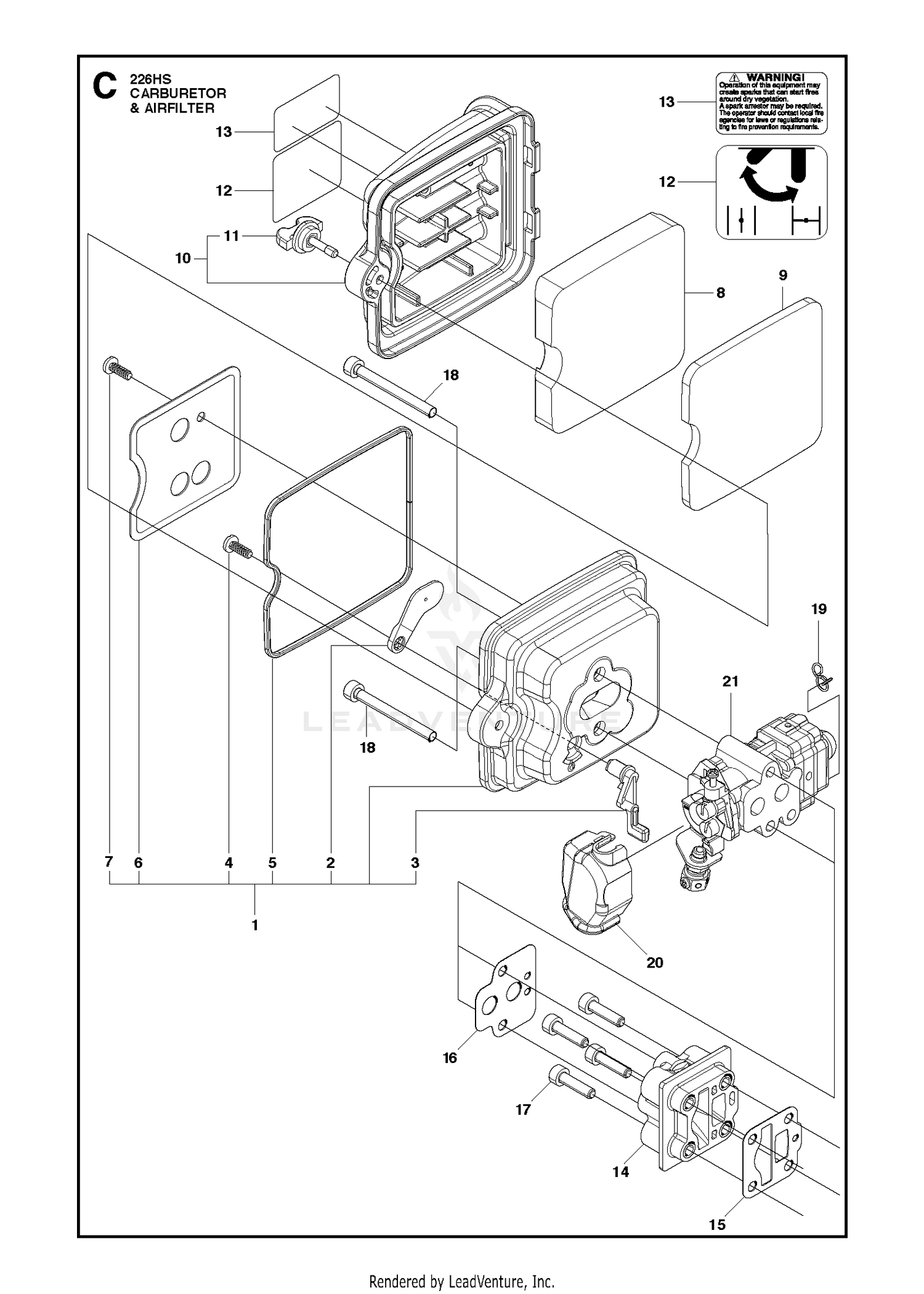

CARBURETOR & AIR FILTER 2
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 511359201 | BODY Price: $22.99 |
| 2 | 506684301 | PLATE.CHOKE Price: $2.99 |
| 3 | 521760501 | LEVER CHOKE Price: $3.99 |
| 4 | 581736201 | SCREW Price: $3.99 |
| 5 | 521751301 | PACKING Price: $3.99 |
| 6 | 521607901 | SCREEN Price: $4.99 |
| 7 | 581736201 | SCREW Price: $3.99 |
| 8 | 523090001 | FILTER FOAM Price: $9.99 |
| 10 | 523071201 | COVER ASSY Price: $22.99 |
| 11 | 523071301 | KNOB Price: $4.99 |
| 12 | 574299701 | LABEL Price: $3.99 |
| 14 | 511349701 | INSULATOR Price: $9.99 |
| 15 | 593136001 | GASKET This part replaces 511350001. Price: $4.99 |
| 16 | 521755001 | GASKET, CARB (RPLS T155113131) Price: $3.99 |
| 17 | 506689001 | BOLT TORX Price: $3.99 |
| 18 | 504116501 | BOLT Price: $2.99 |
| 19 | 506741501 | CLIP Price: $2.99 |
| 20 | 506744201 | COVER Price: $4.99 |
| 21 | 591102601 | CARBURETTOR ASSY This part replaces 586434401. Price: $59.99 |
