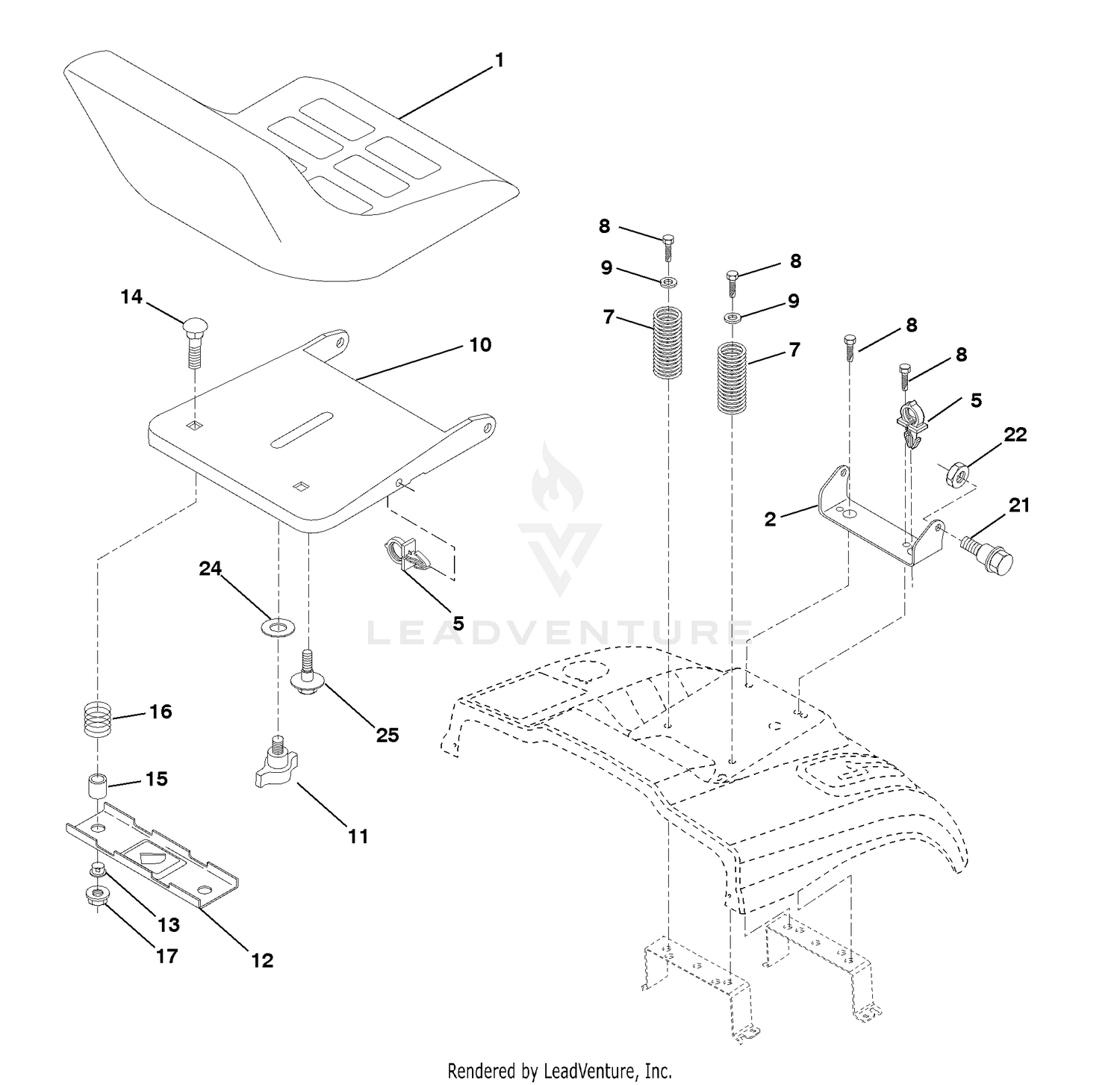

| Ref | Part Number | Description |
|---|
| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532140838. Price: $149.99 |
| 1 |
66-8120 |
PIPE-STAND Price: $36.87 |
| 2 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
46-6550 |
FITTING-ELBOW, 90 DEG Price: $37.39 |
| 4 |
32122-24 |
SCREW-PTH Price: $0.27 |
| 5 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
63-7640 |
SENDER-FUEL Price: $94.22 |
| 7 |
110-3257 |
HOSE-FUEL This part replaces 63-7630. Price: $17.26 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
817000616 |
SCREW 3/8-16X1 This part replaces 532171235. Price: $5.99 |
| 8 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 9 |
2412-96 |
CLAMP-R Price: $3.46 |
| 9 |
596140201 |
Washers This part replaces 532171236. Price: $2.99 |
| 10 |
32128-20 |
NUT-HF Price: $0.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532155925. Price: $17.99 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 11 |
93-3102 |
CAP-FUEL Price: $24.02 |
| 12 |
237-136 |
GROMMET Price: $3.52 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 |
3253-8 |
WASHER-LOCK Price: $0.47 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
3256-67 |
WASHER Price: $0.49 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK This part replaces 532171040. Price: $4.99 |
| 15 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 16 |
321-5 |
SCREW-HH Price: $0.22 |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 17 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532171041. Price: $3.99 |
| 18 |
231-101 |
TIRE (23X8.5-12) 4-PLY TURF SAVER Price: $147.85 |
| 19 |
217-117 |
WHEEL Price: $164.56 |
| 20 |
23-7270 |
NUT-LUG Price: $10.37 |
| 21 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171130. Price: $2.99 |
| 22 |
596040501 |
Hardware This part replaces 532171026. Price: $2.99 |
| 22 |
86-9640-03 |
FRONT AXLE ASM This part replaces 86-9640. Price: $2,641.21 |
| 23 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 24 |
324-5 |
SCREW-HH Price: $0.54 |
| 24 |
819171912 |
WASHER This part replaces 532171261. Price: $3.99 |
| 25 |
92-9788 |
PIVOT PIN ASM Price: $32.55 |
| 26 |
32121-49 |
PIN-ROLL Price: $2.37 |
| 27 |
32121-71 |
PIN-SPRING Price: $0.61 |
| 29 |
302-62 |
FITTING-GREASE Price: $1.34 |
| 30 |
76-3090 |
LH LIFT ARM ASM Price: $637.79 |
| 31 |
3219-6 |
NUT-HEX Price: $2.78 |
| 32 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 33 |
92-9786-03 |
CARRIER BRACKET This part replaces 92-9786. Price: $106.42 |
| 34 |
3273-38 |
SCREW-HSH Price: $6.65 |
| 35 |
66-3060 |
DISCONTINUED Price: Call Us |
| 36 |
304-46 |
DRAINCOCK Price: $7.55 |
| 37 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 38 |
62-7650 |
GASKET Price: $4.28 |
| 39 |
92-8873 |
TANK - FUEL (DIESEL) Price: $387.63 |
| 40 |
46-6560 |
BUSHING Price: $2.94 |
