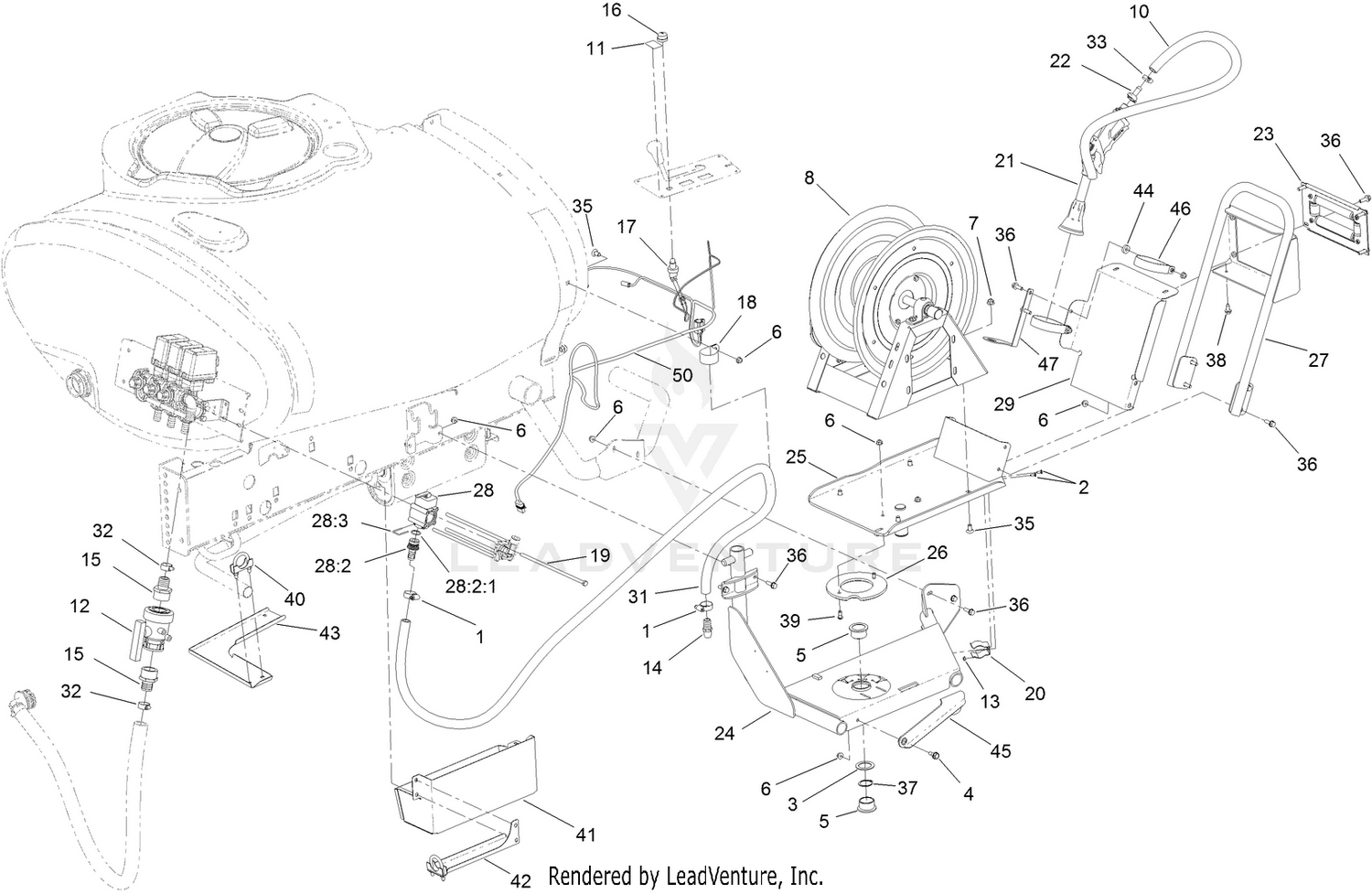

| Ref | Part Number | Description |
|---|
| 1 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 2 |
1-807513 |
BOLT-CARR Price: $1.14 |
| 3 |
62-2170 |
WASHER-THRUST Price: $4.48 |
| 4 |
92-6986 |
BOLT-SHOULDER Price: $6.88 |
| 5 |
93-4510 |
BUSHING-CASTER Price: $6.97 |
| 6 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 8 |
127-3910 |
HOSE REEL ASM Price: $4,356.54 |
| 10 |
107-8756 |
HOSE-HOSE REEL Price: $619.03 |
| 11 |
107-8757 |
DECAL-REEL, HOSE Price: $26.25 |
| 12 |
108-0069 |
VALVE-BALL Price: $154.28 |
| 13 |
110-3145 |
NUT-LOCK Price: $0.69 |
| 14 |
110-5065 |
HOSEBARB Price: $18.05 |
| 15 |
110-5224 |
FITTING-BARBED, STRAIGHT Price: $5.40 |
| 16 |
112-3313 |
NUT-WEATHERPROOF Price: $5.23 |
| 17 |
112-3324 |
SWITCH-HORN Price: $39.90 |
| 18 |
114-9566 |
CLAMP-R Price: $2.78 |
| 19 |
119-4880 |
SCREW-HH Price: $28.36 |
| 20 |
119-4937 |
CLIP-SPRING Price: $21.31 |
| 21 |
120-8610 |
SPRAY GUN ASM Price: $323.80 |
| 22 |
121-4982 |
HOSEBARB-SPRAY GUN Price: $13.59 |
| 23 |
121-4983 |
BRACKET-ROLLER Price: $595.61 |
| 24 |
125-4172-03 |
FRAME-HOSE REEL Price: $867.26 |
| 25 |
125-4177-03 |
PIVOT-BASE Price: $336.58 |
| 26 |
125-7990 |
SLIDE-DETENT Price: $118.51 |
| 27 |
125-8014-03 |
HANDLE ASM Price: $262.23 |
| 28 |
125-8039 |
MANUAL VALVE ASM Price: $114.42 |
| 29 |
125-8044-03 |
SHIELD-MUD Price: $56.06 |
| 31 |
125-8046 |
HOSE-SUPPLY, HOSE REEL Price: $66.12 |
| 32 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 33 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 35 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 36 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 37 |
32120-84 |
RING-SNAP, EXTERNAL Price: $0.61 |
| 38 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 39 |
121-9671 |
SCREW-HSBH Price: $0.59 |
| 40 |
2112-11 |
CLAMP-MUFFLER Price: $7.37 |
| 41 |
125-8096 |
SHIELD - MUFFLER This part replaces 125-8096-03. Price: $86.62 |
| 42 |
125-8097-03 |
SHIELD-TAILPIPE, MIDDLE Price: Call Us |
| 43 |
125-8098-03 |
SHIELD-TAILPIPE, END Price: Call Us |
| 44 |
5-0652 |
SPACER This part replaces 26-4840. Price: $5.35 |
| 45 |
127-3957 |
LATCH Price: $76.03 |
| 46 |
120-8592 |
CLAMP-R Price: $7.33 |
| 47 |
161-4160-03 |
BRACKET-SPRAY GUN This part replaces 120-8593-03. Price: $9.02 |
