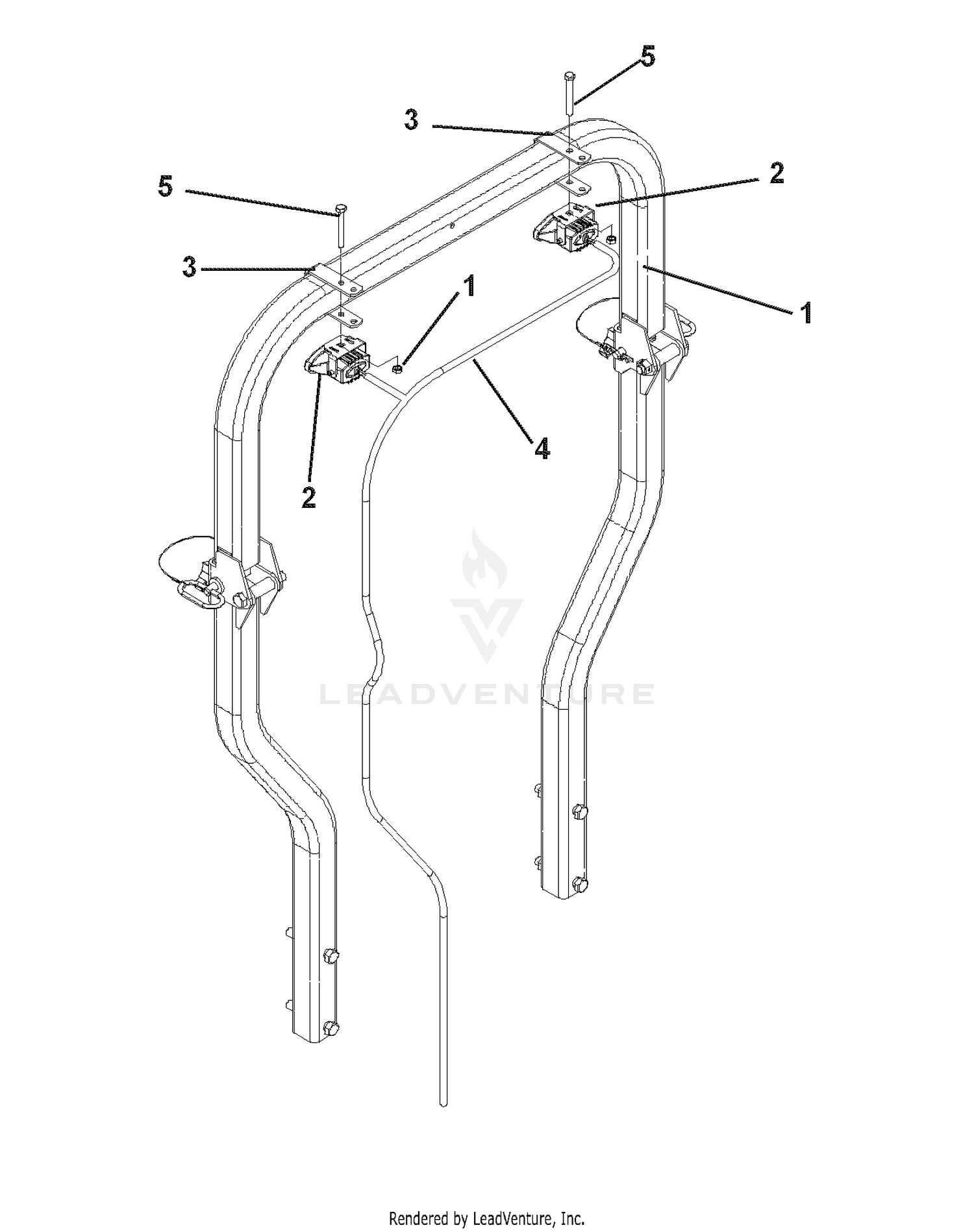

| Ref | Part Number | Description |
|---|
| 1 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 1 |
596436301 |
Nuts This part replaces 539107897. Price: $2.99 |
| 2 |
539111577 |
LIGHT 35W W/BRKT Price: $64.99 |
| 2 |
77-6740 |
MAIN LIFT ARM ASM Price: $1,300.60 |
| 3 |
256-77 |
BUSHING Price: $2.58 |
| 3 |
539111578 |
LIGHT MOUNTING BRACKET Price: $11.99 |
| 4 |
256-76 |
BUSHING Price: $4.07 |
| 4 |
539111580 |
LIGHT HARNESS Price: $79.99 |
| 5 |
539991046 |
BOLT 5/16C X 2 1/2 Price: $3.99 |
| 5 |
77-6750 |
LIFT ARM ASM Price: $801.44 |
| 6 |
77-6560-03 |
PIN-PIVOT ASM This part replaces 77-6560. Price: $35.08 |
| 7 |
12-3270 |
SCREW Price: $3.09 |
| 8 |
77-5950 |
HYD CYLINDER ASM Price: $1,248.17 |
| 9 |
77-6000-03 |
FRAME ASM This part replaces 77-6000. Price: $2,185.77 |
| 10 |
77-6360 |
LOWER LH ARM ASM Price: $138.49 |
| 11 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 12 |
77-6600 |
PIVOT PIN ASM Price: $81.77 |
| 13 |
107-2931 |
DECAL-DANGER This part replaces 80-4650. Price: $33.25 |
| 14 |
325-5 |
SCREW-HH Price: $1.20 |
| 15 |
62-5550 |
DECAL Price: $9.32 |
| 16 |
3290-384 |
PIN-LYNCH Price: $18.43 |
| 17 |
322-6 |
SCREW-HH Price: $0.45 |
| 18 |
325-6 |
SCREW-HH Price: $1.42 |
| 19 |
77-6160-03 |
BRACKET-MOUNT, REAR This part replaces 77-6160. Price: $250.57 |
| 20 |
77-6561-03 |
PIN-PIVOT This part replaces 77-6561. Price: $38.14 |
| 21 |
77-6690 |
SPACER Price: $4.75 |
| 22 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 23 |
77-6240 |
BRKT WA- SIDE MNT LH*R Price: $84.83 |
| 24 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 25 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 26 |
77-6210 |
DISCONTINUED Price: Call Us |
| 27 |
323-6 |
SCREW-HH Price: $0.66 |
| 28 |
77-6670 |
QUICK COUPLER BRKT *R Price: $42.36 |
| 29 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 30 |
77-6602 |
PIVOT PIN ASM Price: $99.14 |
| 31 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 32 |
32151-48 |
E-RING Price: $1.41 |
| 33 |
77-6390 |
LOWER RH ARM ASM Price: $138.49 |
| 34 |
77-6601 |
PIVOT PIN ASM Price: $153.60 |
| 35 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 36 |
82-5880 |
BUMPER Price: $32.98 |
