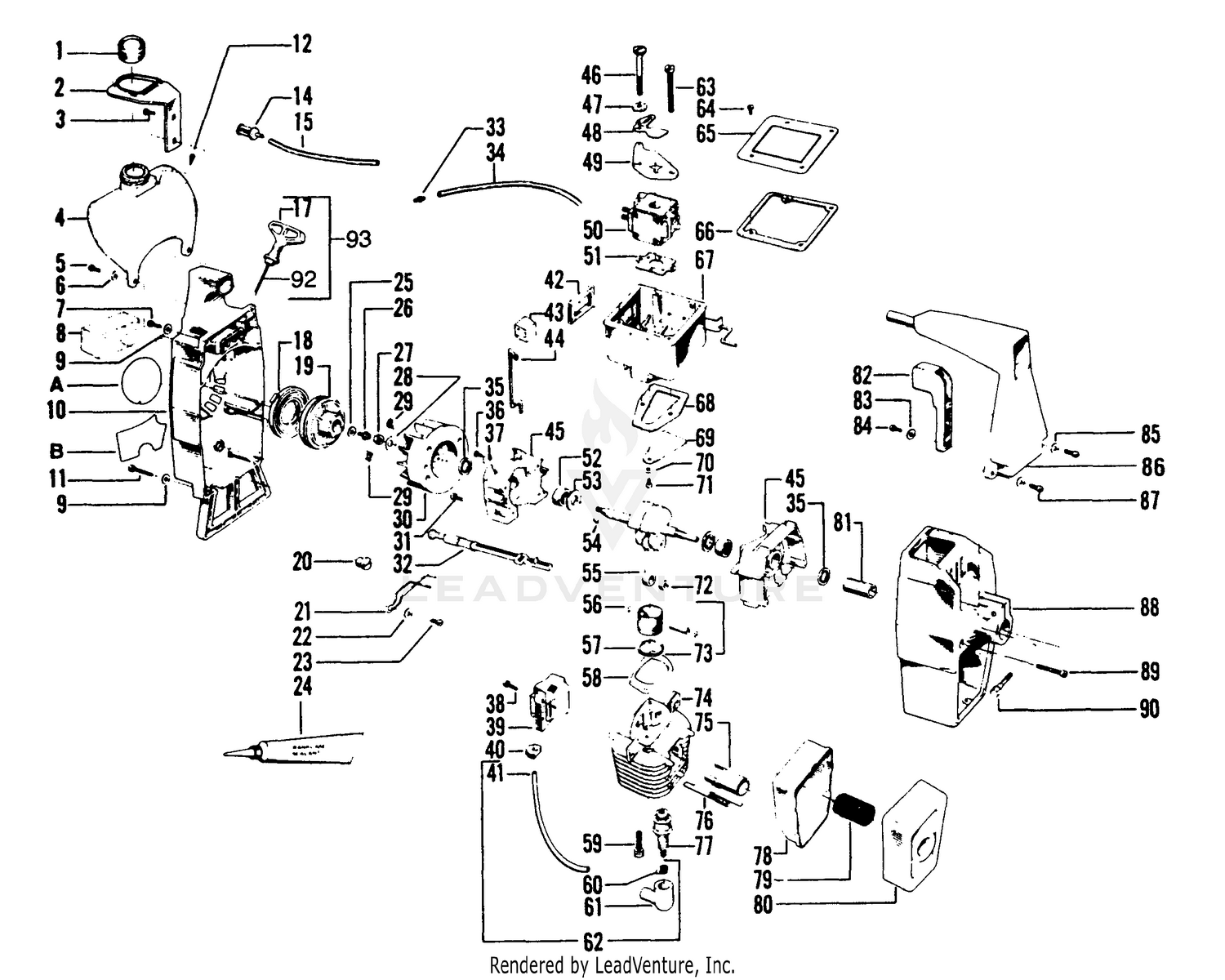

| Ref | Part Number | Description |
|---|
| A |
25846 |
Decal - Starting instructions Price: Call Us |
| B |
25845 |
Decal - Choke / OFF Price: Call Us |
| 1 |
40-8970 |
DISCONTINUED This part replaces 5-1447. Price: Call Us |
| 2 |
25377 |
Bracket - Fuel Tank Price: Call Us |
| 2 |
8-2230 |
Name Plate Price: Call Us |
| 3 |
321-3 |
SCREW-HH Price: $0.28 |
| 3 |
92243 |
Screw -Bracket/Handle (1/4 - 10 x 1-1/8) Price: Call Us |
| 4 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 5 |
530015509 |
Screw- Fuel Tank/Fan Housing (10-1) Price: $1.99 |
| 6 |
3219-4 |
NUT-HEX Price: $2.65 |
| 6 |
530015512 |
Washer - Fuel Tank/Fan Housing Price: $3.33 |
| 7 |
15168 |
Screw -Fan Hsg. Top #10 - 24 x 5/8 Fit. Price: Call Us |
| 7 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 8 |
24371 |
Air Filter Price: Call Us |
| 8 |
6-1600 |
SOLENOID Price: $55.95 |
| 9 |
10-4630 |
DISCONTINUED Price: Call Us |
| 9 |
530015274 |
Washer - Flat - Fan Housing Price: $0.99 |
| 10 |
11909 |
Fan Housing Price: Call Us |
| 10 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 11 |
3218-13 |
NUT-JAM, BRASS Price: $0.88 |
| 11 |
530015305 |
Screw -Fan Housing - Bottom - #10 - 24 x 1-3/16 Fil. Price: $1.99 |
| 12 |
26119 |
Check Valve - Duck Bill Price: Call Us |
| 13 |
3217-5 |
NUT-HEX Price: $0.25 |
| 14 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 14 |
91878 |
Fuel Pick-Up Ass'y. Price: Call Us |
| 15 |
21045 |
Line - Fuel Pick-up Price: Call Us |
| 15 |
3290-199 |
NUT-SPEED Price: $4.09 |
| 16 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 17 |
2412-21 |
DISCONTINUED Price: Call Us |
| 17 |
26735 |
Handle - Starter Price: Call Us |
| 18 |
3290-237 |
SLOT HD SCREW Price: $0.25 |
| 18 |
42067 |
Starter - Recoil Spring Price: Call Us |
| 19 |
218-247 |
IGNITION SWITCH Price: $94.84 |
| 19 |
26048 |
Starter - Pulley Price: Call Us |
| 20 |
24366 |
Button - Kill Switch Price: Call Us |
| 20 |
3-8006 |
DISCONTINUED Price: Call Us |
| 21 |
25378 |
Spring - Kill Switch Price: Call Us |
| 21 |
7-1394 |
DISCONTINUED Price: Call Us |
| 22 |
3290-163 |
Locknut Price: Call Us |
| 22 |
530015382 |
Washer - Kill Switch Price: Call Us |
| 23 |
530015407 |
Screw- Kill Switch (8 x 3/8) Price: $0.56 |
| 23 |
8-2120 |
DISCONTINUED Price: Call Us |
| 24 |
5-1336 |
KEY-SQUARE Price: $8.92 |
| 25 |
3-8388 |
WASHER Price: $24.32 |
| 25 |
530015123 |
Washer - Starter Pulley Price: $1.99 |
| 26 |
3273-29 |
SCREW-HSFH Price: $20.62 |
| 26 |
530015479 |
Screw - Starter Pulley (# 10 - 3/4 - Hex Head) Price: $3.99 |
| 27 |
3-7935 |
DISCONTINUED Price: Call Us |
| 27 |
626605 |
Nut - Flywheel Price: Call Us |
| 28 |
3-7934 |
DISCONTINUED Price: Call Us |
| 28 |
42059 |
Spring - Starter Dog Price: Call Us |
| 29 |
5-1315 |
DISCONTINUED Price: Call Us |
| 29 |
530015127 |
Washer - Flywheel Price: $1.99 |
| 30 |
221-335 |
Engine (Kohler Mod. K-141S Type No. 29403D) Price: Call Us |
| 31 |
15168 |
Screw - Crankcase (# 10 - 24 x 5/8 Fil.) Price: Call Us |
| 31 |
32122-14 |
SCREW-PPH Price: $1.02 |
| 32 |
24303 |
Knob-Choke Price: Call Us |
| 32 |
8-0170 |
DISCONTINUED Price: Call Us |
| 33 |
2212-10 |
MUFFLER Price: $159.52 |
| 33 |
25472 |
Fitting - Fuel Line Price: Call Us |
| 34 |
21044 |
Fuel Line - Carburetor Price: Call Us |
| 34 |
3-7232 |
DISCONTINUED Price: Call Us |
| 35 |
19059 |
Seal - Crankshaft Price: Call Us |
| 35 |
98-3206 |
DECAL This part replaces 12-9140. Price: $1.99 |
| 36 |
15004 |
Screw - Clamp # 8 - 32 x 5/16 Pan. Price: Call Us |
| 36 |
5-1280 |
DISCONTINUED Price: Call Us |
| 37 |
24651 |
Clamp - Choke Wire Price: Call Us |
| 37 |
3217-6 |
NUT-HEX Price: $1.19 |
| 38 |
15128 |
Screw -Ignition Module (8 - 32 x 3/4 - Sems) Price: Call Us |
| 38 |
68-8860 |
CHAIN GUARD WA *R This part replaces 22-8240. Price: $53.73 |
| 39 |
25-9900 |
DISCONTINUED Price: Call Us |
| 39 |
69181 |
Ignition Module Price: Call Us |
| 40 |
24435 |
Grommet - Plug Wire Price: Call Us |
| 41 |
39082 |
Lead Wire - High Tension Price: Call Us |
| 41 |
8-2260 |
DISCONTINUED Price: Call Us |
| 42 |
19105 |
Seat - Carburetor Case Price: Call Us |
| 42 |
237-41 |
GROMMET Price: $12.90 |
| 43 |
321-2 |
SCREW-HH Price: $2.79 |
| 43 |
530023373 |
Boot - Choke Wire Price: $1.99 |
| 44 |
24305 |
Wire - Choke Price: Call Us |
| 44 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 45 |
237-37 |
BUMPER-RUBBER Price: $4.33 |
| 46 |
321-4 |
SCREW-HH Price: $0.99 |
| 46 |
530015404 |
Screw - Carburetor (Shoulder # 10 - 24) Price: $2.99 |
| 47 |
25-9930 |
DISCONTINUED Price: Call Us |
| 47 |
530015254 |
Wave Washer Price: $1.99 |
| 48 |
24558 |
Shutter - Choke Price: Call Us |
| 48 |
32140-70 |
DISCONTINUED Price: Call Us |
| 49 |
10-4640 |
DISCONTINUED Price: Call Us |
| 49 |
26237 |
Plate - Guide, Choke Wire Price: Call Us |
| 50 |
321-10 |
SCREW-HH Price: $1.29 |
| 50 |
35183 |
Carburetor Price: Call Us |
| 51 |
10-8340 |
DISCONTINUED Price: Call Us |
| 51 |
19115 |
Gasket Carburetor Price: Call Us |
| 52 |
11-3320 |
DISCONTINUED Price: Call Us |
| 52 |
32058 |
Bearing - Crankshaft Price: Call Us |
| 53 |
32128-20 |
NUT-HF Price: $0.99 |
| 53 |
530015351 |
Thrust Washer - Crankshaft Price: $3.99 |
| 54 |
530015126 |
Key - Flywheel Price: $1.99 |
| 55 |
22202 |
Crankshaft & Rod Assembly Price: Call Us |
| 56 |
530015162 |
Retainer - Wrist Pin Price: $1.99 |
| 57 |
24302 |
Piston Ring Price: Call Us |
| 58 |
19111 |
Gasket Cylinder Price: Call Us |
| 59 |
530015239 |
Screw - Cylinder (1/4 - 20 x 3/4 Socket Head) Price: $1.99 |
| 60 |
507475326 |
Spark Plug Boot This part replaces 530003933. Price: $3.99 |
| 61 |
530003934 |
Boot - Spark Plug Price: Call Us |
| 63 |
530015379 |
Screw-Carburetor (# 10 - 24 Fil.) Price: $2.99 |
| 64 |
15235 |
Screw Carburetor Cover (8 - 18 x 9/16) Price: Call Us |
| 65 |
24355 |
Cover Carburetor Case Price: Call Us |
| 66 |
19112 |
Gasket - Carburetor Case Cover Price: Call Us |
| 67 |
10453 |
Carburetor Case Assembly Price: Call Us |
| 68 |
19108 |
Gasket Carburetor Case/Crankcase Price: Call Us |
| 69 |
24438 |
Reed Valve Price: Call Us |
| 70 |
23367 |
Washer - Reed Valve Price: Call Us |
| 71 |
15241 |
Screw - Reed Valve (6 - 19 x 5/16) Price: Call Us |
| 72 |
32057 |
Bearing - Wrist Pin Price: Call Us |
| 74 |
12070 |
Cylinder Price: Call Us |
| 75 |
26949 |
Diffuser Muffler Price: Call Us |
| 76 |
24903 |
Spring - Muffler Attachment Price: Call Us |
| 77 |
30058 |
Spark Plug (RCJ-8) Price: Call Us |
| 78 |
24362 |
Body Muffler Price: Call Us |
| 79 |
24364 |
Screen-Spark Arrestor Price: Call Us |
| 80 |
24361 |
Cover-Muffler Price: Call Us |
| 81 |
93694 |
Coupling - Hex Drive Price: Call Us |
| 82 |
25342 |
Trigger - Throttle Price: Call Us |
| 83 |
530015382 |
Washer - Throttle Price: Call Us |
| 84 |
530015407 |
Screw - Throttle (8 - 16 x 3/8) Price: $0.56 |
| 85 |
530015274 |
Washer - Flat - Shroud Price: $0.99 |
| 86 |
25704 |
Handle Price: Call Us |
| 87 |
15163 |
Screw - Shroud (Top) - (10 - 24 x 7/8) Price: Call Us |
| 88 |
11778 |
Shroud Price: Call Us |
| 89 |
15376 |
Screw - Shroud (Bottom) - # 10 - 24 x 1-1/2 Fil. Price: Call Us |
| 90 |
93802 |
Bolt, Pinch Clamp (1/4 - 20 x 1 - Hex Cap) Price: Call Us |
| 92 |
22290 |
Rope (3 1/2 Ft.) Price: Call Us |
| 93 |
26792 |
Rope & Handle - Starter Ass'y Price: Call Us |
