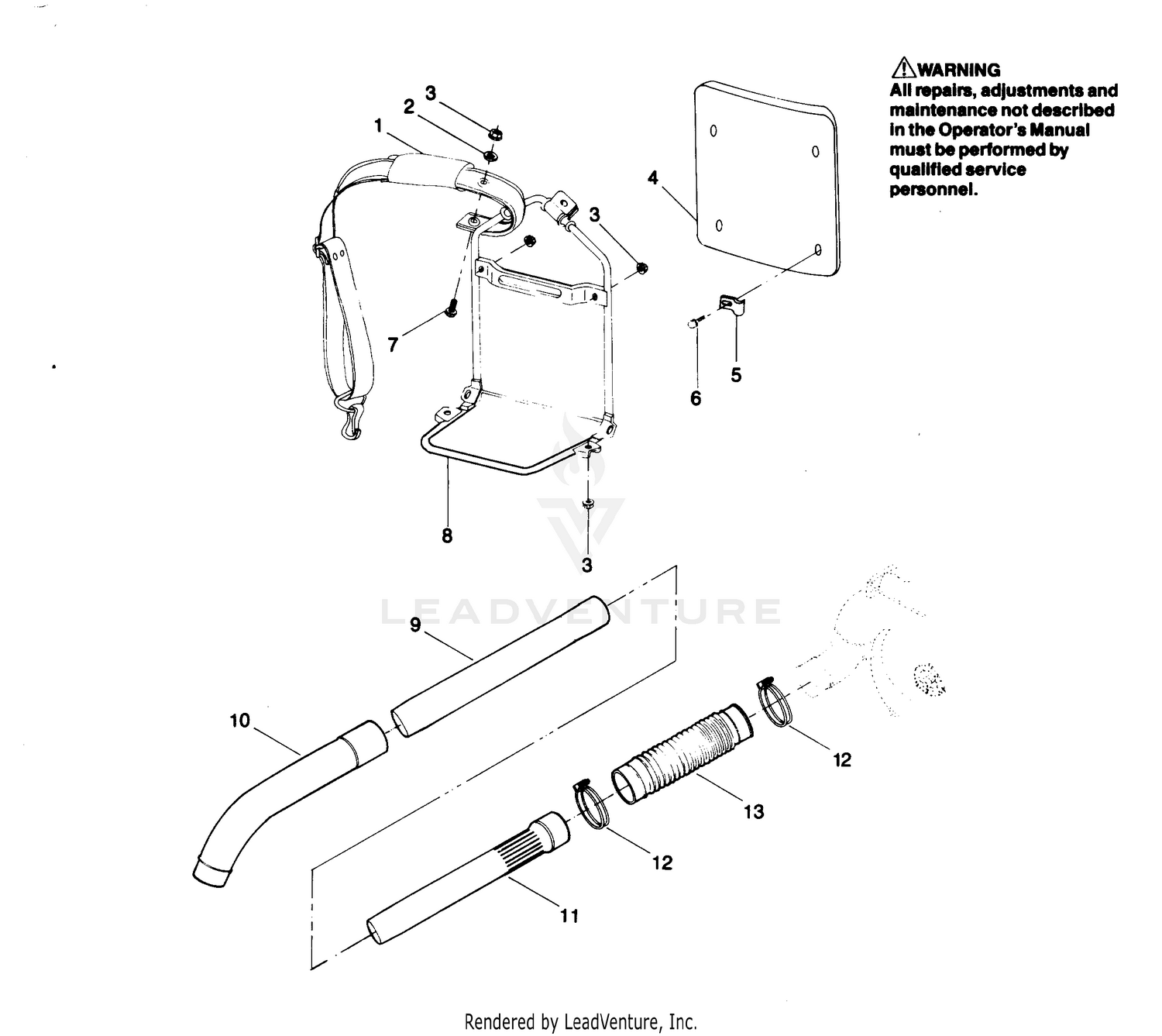

PACKBACK & TUBES
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530094253 | Shoulder Band Price: $3.33 |
| 1 | SGH08011 | HEAD-TINE, ADAPTER This part replaces SGH08011-03. Price: $233.73 |
| 2 | 530094254 | Washer - Steel Price: $1.99 |
| 2 | SG715706 | SHANK-ADAPTER Price: $16.94 |
| 3 | 530094256 | Flange Nut (6mm) Price: $3.33 |
| 4 | 530094250 | Backpack Pad Price: $3.33 |
| 5 | 530094251 | Clamp - Back Pad Price: $3.33 |
| 6 | 530094257 | Bolt (5 x 12mm) - Hex - Sems Price: $3.33 |
| 7 | 530094255 | Screw (6 x 20mm) Price: $3.33 |
| 8 | 530094244 | Backpack Frame Price: $3.33 |
| 9 | 530094301 | Middle Tube Price: $3.33 |
| 10 | 530094302 | Bent Tube Price: $3.33 |
| 11 | 530094300 | Bast Tube Price: $3.33 |
| 12 | 530094303 | Clamp Price: $3.33 |
