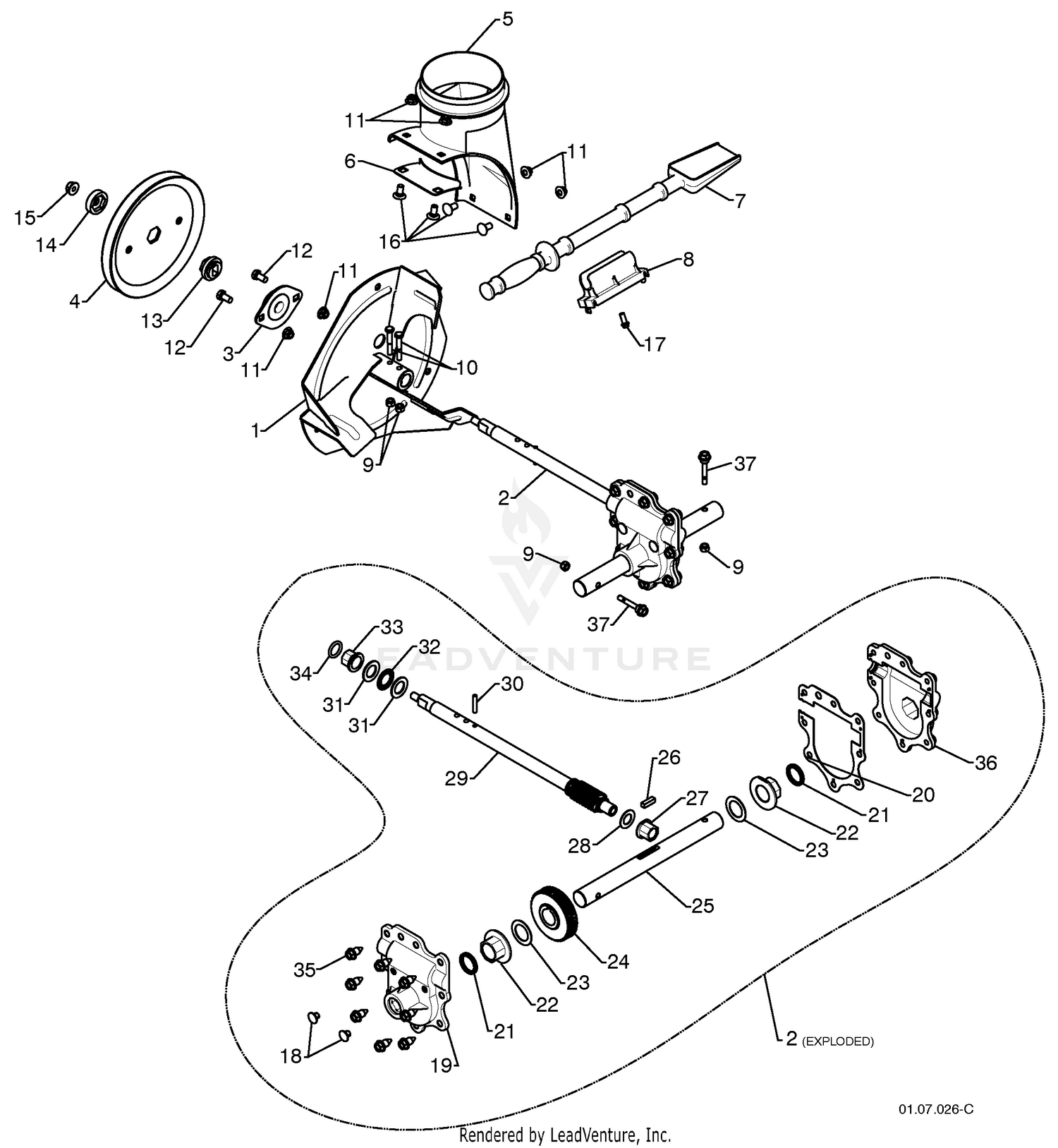

| Ref | Part Number | Description |
|---|
| 1 |
175321X479 |
IMPELLER Price: Call Us |
| 2 |
427148 |
GEARBOX ASSEMBLY Price: Call Us |
| 3 |
188909 |
BEARING Price: Call Us |
| 4 |
427146 |
IMPELLER PULLEY Price: Call Us |
| 5 |
175322 |
DISCHARGE BASE Price: Call Us |
| 6 |
178675X008 |
CORNER BRACKET Price: Call Us |
| 7 |
192199 |
CLEAN OUT TOOL Price: Call Us |
| 8 |
405400 |
TOOL CLIP Price: Call Us |
| 9 |
73800400 |
NUT 1/4-20 Price: Call Us |
| 010 |
98-7530 |
HOOK-ENGINE Price: $6.01 |
| 10 |
74780426 |
SCREW 1/4-20 X .625 Price: Call Us |
| 11 |
427942 |
NUT 5/16-18 Price: Call Us |
| 12 |
163183 |
SCREW 5/16-18 X .625 Price: Call Us |
| 13 |
427145 |
IMPELLER HUB Price: Call Us |
| 14 |
427154 |
IMPELLER SLEEVE Price: Call Us |
| 15 |
73900600 |
NUT 3/8-16 Price: Call Us |
| 16 |
180355 |
CARRIAGE BOLT Price: Call Us |
| 17 |
194189 |
SCREW 13-16 X .625 Price: Call Us |
| 18 |
407760 |
PLUG Price: Call Us |
| 19 |
427302 |
GEARBOX COVER RH Price: Call Us |
| 020 |
98-7531 |
HOOK-ENGINE Price: $7.56 |
| 20 |
427345 |
GASKET Price: Call Us |
| 21 |
407770 |
SEAL Price: Call Us |
| 22 |
407762 |
BEARING Price: Call Us |
| 23 |
174697 |
THRUST WASHER 1.00 Price: Call Us |
| 24 |
407763 |
WORM GEAR Price: Call Us |
| 25 |
407764 |
AUGER SHAFT Price: Call Us |
| 26 |
189282 |
SQUARE KEY Price: Call Us |
| 27 |
407758 |
BEARING Price: Call Us |
| 28 |
174683 |
THRUST WASHER Price: Call Us |
| 29 |
427147 |
IMPELLER SHAFT Price: Call Us |
| 030 |
98-7526 |
BOLT Price: $0.80 |
| 30 |
7836M |
ROLL PIN Price: Call Us |
| 31 |
174681 |
THRUST WASHER Price: Call Us |
| 32 |
174684 |
THRUST BEARING Price: Call Us |
| 33 |
407769 |
BEARING Price: Call Us |
| 34 |
407768 |
O-RING Price: Call Us |
| 35 |
407767 |
SCREW 5/16-18 X .750 Price: Call Us |
| 36 |
427317 |
GEARBOX COVER LH Price: Call Us |
| 040 |
100-1558 |
STUD This part replaces 98-7533. Price: $2.26 |
| 050 |
98-7534 |
NUT This part replaces 100-1559. Price: $0.48 |
| 060 |
3253-4 |
WASHER-LOCK This part replaces 99-8339. Price: $0.25 |
| 070 |
98-7536 |
WASHER-PLAIN Price: $0.28 |
| 080 |
100-9159 |
HEAD-CYLINDER Price: $2,210.47 |
| 090 |
98-7538 |
CAP-SEALING Price: $5.06 |
| 100 |
98-7539 |
CAP-SEALING Price: $6.44 |
| 110 |
98-9687 |
PLUG This part replaces 98-7540. Price: $2.86 |
| 120 |
120-5163 |
GUIDE-VALVE, INLET This part replaces 98-7541. Price: $14.72 |
| 130 |
115-8508 |
GUIDE-VALVE, EXHAUST This part replaces 98-7542. Price: $16.97 |
| 150 |
98-7543 |
BOLT-HEAD, CYLINDER Price: $14.42 |
| 160 |
100-9160 |
GASKET-HEAD, CYLINDER Price: $231.93 |
