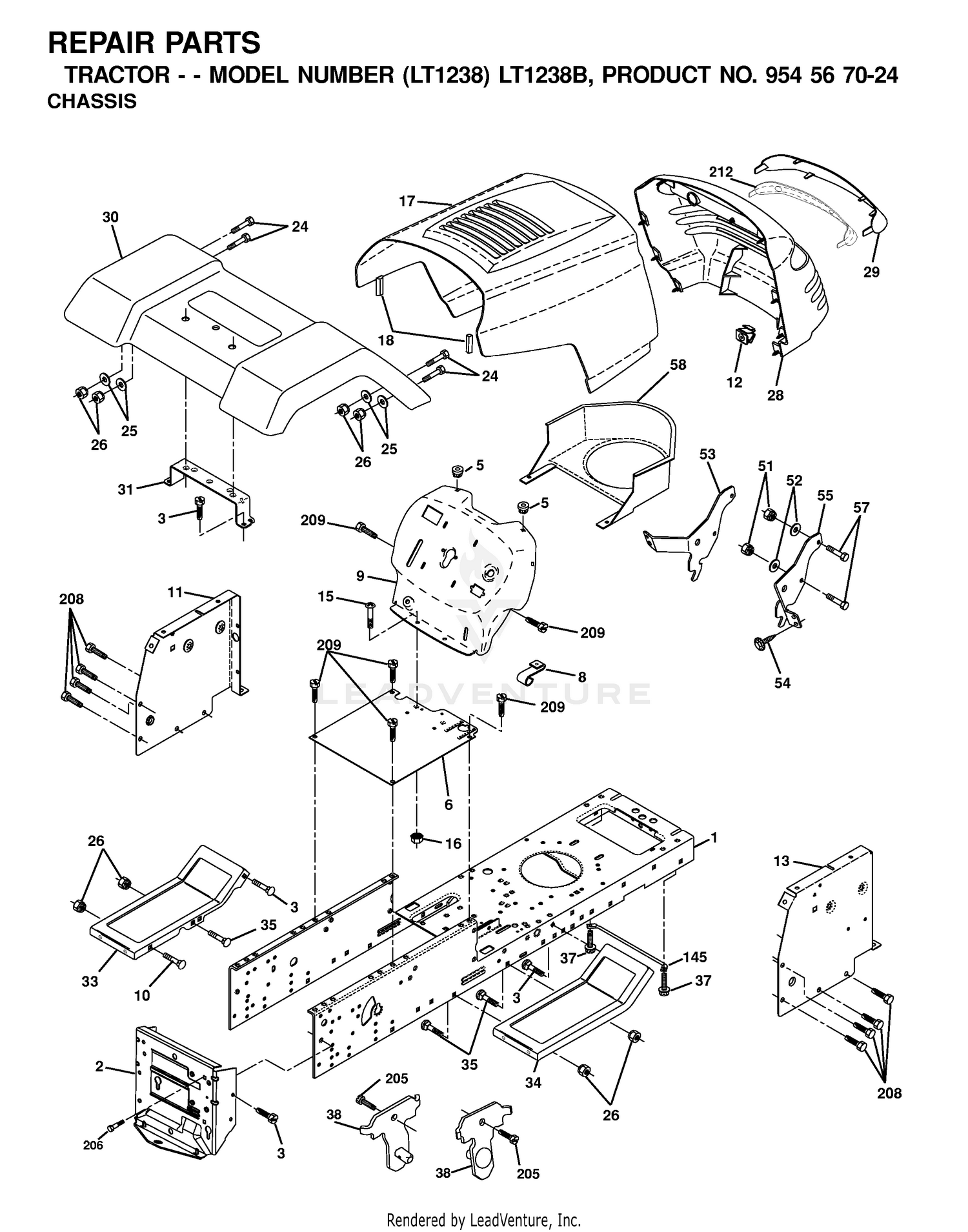

| Ref | Part Number | Description |
|---|
| 1 |
120-8056 |
TUBE ASM Price: $144.29 |
| 1 |
532174620 |
CHASSIS Price: $119.99 |
| 2 |
120-8055 |
TUBE ASM Price: $137.84 |
| 2 |
532176554 |
DRAWBAR, 12GA Price: $37.99 |
| 3 |
115-4412 |
TUBE ASM Price: $132.35 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 4 |
115-4408 |
TUBE ASM Price: $126.40 |
| 5 |
115-4406 |
TUBE ASM Price: $119.83 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 6 |
115-4409 |
TUBE ASM Price: $115.75 |
| 6 |
532155923 |
SADDLE FLAT Price: $11.99 |
| 7 |
115-4405 |
TUBE ASM Price: $119.61 |
| 8 |
136-3414 |
HYDRAULIC TUBE ASM This part replaces 125-4581. Price: $81.81 |
| 8 |
532155138 |
CLIP RETAINER Price: $3.99 |
| 9 |
532171796 |
DASH Price: $35.86 |
| 9 |
92-7606-03 |
BRACKET-BULKHEAD Price: $13.64 |
| 10 |
125-4560 |
HOSE ASM Price: $96.58 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX This part replaces 532155927. Price: $9.99 |
| 11 |
92-7539 |
HOSE-HYD Price: $134.23 |
| 12 |
105-3873-03 |
BRACKET-MOUNT, CLAMP Price: $33.52 |
| 12 |
532145660 |
CLIP Price: $2.99 |
| 13 |
120-8057 |
TUBE ASM Price: $94.49 |
| 13 |
532173025 |
PANEL DASH RH Price: $9.92 |
| 14 |
340-70 |
NUT-LOCK Price: $2.10 |
| 15 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 15 |
874180512 |
Screw, Machine, Truss Head 5/16-18 UNC x 3/4 Price: $3.99 |
| 16 |
115-1794 |
SCREW-HHF Price: $1.73 |
| 16 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 17 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 17 |
532159639 |
HOOD.STEEL.LT.ORANGE This part replaces 532162237. Price: $64.99 |
| 18 |
532126938 |
BUMPER HOOD T Price: $3.99 |
| 19 |
105-3993-0P |
BRACKET-TUBE SUPPORT This part replaces 105-3993-03. Price: $40.13 |
| 20 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 21 |
2412-81 |
CLAMP-R Price: $3.39 |
| 22 |
119-4036 |
SCREW-HHF Price: $0.53 |
| 23 |
125-4570 |
TUBE ASM Price: $80.61 |
| 24 |
121-3064 |
TUBE ASM Price: $100.05 |
| 24 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 25 |
121-3063 |
TUBE ASM Price: $64.29 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 28 |
532179100 |
GRILL ASSEMBLY This part replaces 532143499. Price: $169.99 |
| 30 |
532169467 |
FENDER LT This part replaces 532177025. Price: $84.69 |
| 31 |
532136619 |
BRACKET FENDER Price: $4.99 |
| 32 |
69-9761 |
PLATE-COVER Price: $6.26 |
| 33 |
532182507 |
FOOTREST.LH.BLACK This part replaces 532153539. Price: $37.99 |
| 33 |
94-8105 |
CLAMP-TUBE Price: $3.17 |
| 34 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 34 |
532182508 |
FOOTREST.RH.BLACK This part replaces 532153538. Price: $22.99 |
| 35 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 35 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR Price: $9.99 |
| 51 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 52 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 53 |
532144697 |
BRACKET.GRILLE.LH Price: $4.99 |
| 54 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 Price: $3.99 |
| 55 |
532144696 |
BRACKET Price: $4.99 |
| 57 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 58 |
532150127 |
AIR DUCT P/L/LT Price: $13.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 205 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 206 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 212 |
532174503 |
INSERT, LENS This part replaces 532156229. Price: $22.99 |
