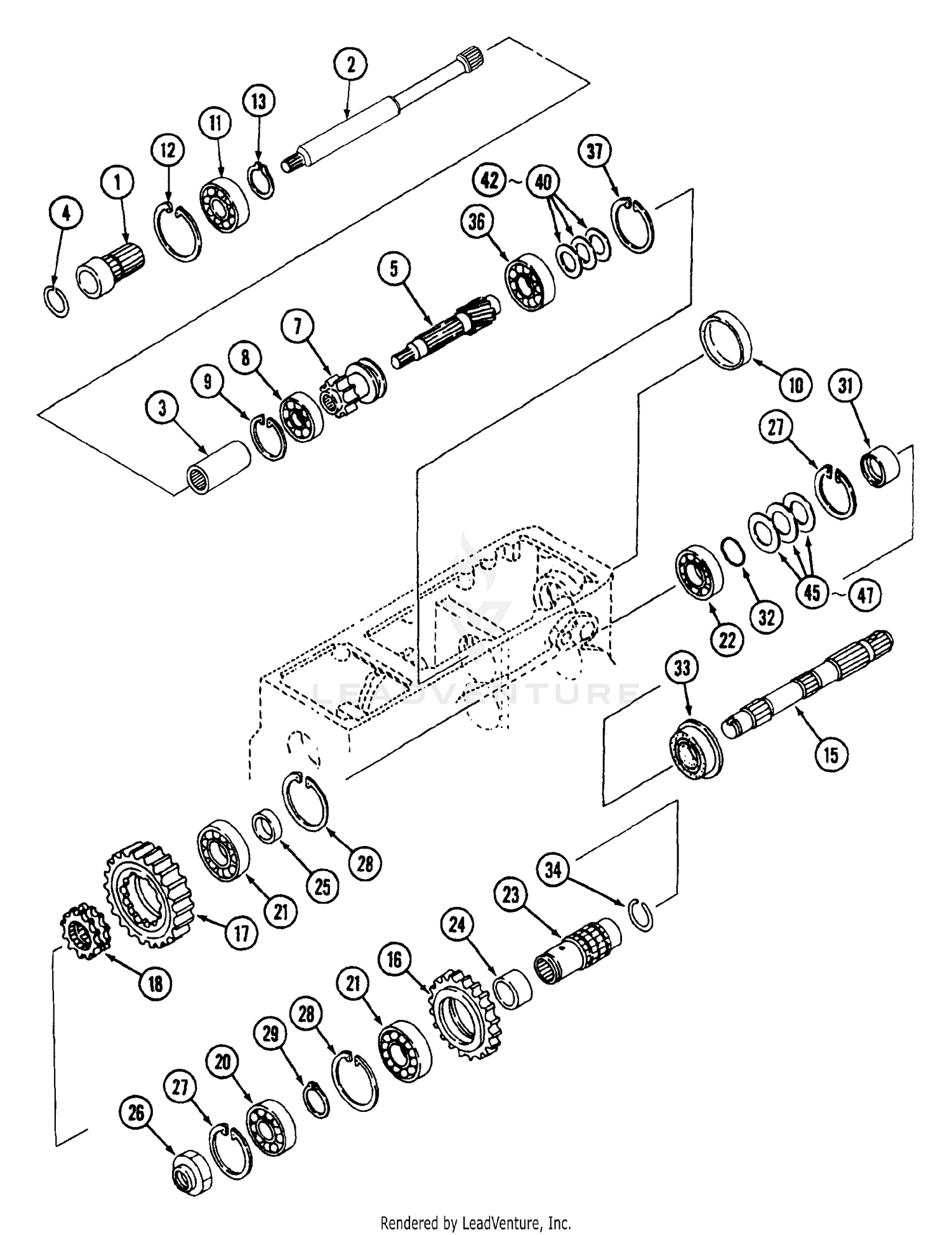

Transmission MFD (Part 4)
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 354-50 | SCREW-HSH Price: $3.60 |
| 1 | MA-19631275000 | JOINT Not Available Price: |
| 2 | 354-51 | WASHER Price: $0.47 |
| 3 | 353-599 | PIN-DOWEL Price: $2.65 |
| 4 | 93-3614 | COVER ASM Price: $222.48 |
| 4 | MA-10311363001 | RING Not Available Price: |
| 6 | 93-3616 | IDLER SHAFT AND GEAR ASM Price: $273.11 |
| 7 | 93-3617 | COVER AND CARRIER KIT Price: $5,009.82 |
| 7 | MA-19641248001 | GEAR 19T Not Available Price: |
| 8 | 354-46 | RING-SEAL Price: $16.74 |
| 8 | MA-07520663050 | BEARING Not Available Price: |
| 9 | 104-7712 | LOAD PLATE ASM This part replaces 74-3810. Price: $229.38 |
| 9 | MA-07410006200 | RING, SNAP Not Available Price: |
| 10 | 92-8795 | BODY ASM Price: $497.61 |
| 10 | MA-08340072100 | CAP,SEAL Not Available Price: |
| 11 | MA-07500060050 | BEARING NSK 6005 Not Available Price: |
| 12 | MA-07410004701 | RING Not Available Price: |
| 13 | 32151-41 | RING-SNAP Price: $0.41 |
| 13 | MA-07400002500 | RING-"C" Not Available Price: |
| 14 | 92-8796 | DISCONTINUED Price: Call Us |
| 15 | MA-19641249000 | SHAFT PTO DRIVE Not Available Price: |
| 16 | MA-19641251000 | GEAR 46T Not Available Price: |
| 17 | MA-19681252000 | GEAR (44 TEETH) Not Available Price: |
| 18 | MA-19631249000 | GEAR CLUTC Not Available Price: |
| 20 | MA-07520663050 | BEARING Not Available Price: |
| 21 | MA-07500062070 | BEARING NSK 6207 Not Available Price: |
| 22 | MA-07520662060 | BEARING Not Available Price: |
| 23 | MA-19641254000 | BOSS SPLIN Not Available Price: |
| 24 | MA-19631252000 | COLLAR Not Available Price: |
| 25 | MA-19641253000 | COLLAR Not Available Price: |
| 26 | MA-11741273000 | NUT Not Available Price: |
| 27 | MA-07410006200 | RING, SNAP Not Available Price: |
| 28 | MA-07410007201 | RING-"C" Not Available Price: |
| 29 | MA-07400103500 | SNAP RING Not Available This part replaces MA-07400003500. Price: |
| 31 | MA-10251405000 | BUSHING Not Available Price: |
| 32 | MA-08300100300 | O-RING Not Available Price: |
| 33 | MA-08412406213 | Seal,Oil Not Available This part replaces MA-10211314000. Price: |
| 34 | MA-19631253000 | RING Not Available Price: |
| 36 | MA-07520663060 | BEARING Not Available Price: |
| 37 | MA-07410007201 | RING-"C" Not Available Price: |
| 40 | MA-07300007202 | LINER Not Available Price: |
| 41 | MA-07300007204 | LINER Not Available Price: |
| 42 | MA-07300007208 | LINER Not Available Price: |
| 45 | MA-07300006201 | LINER T=0. Not Available Price: |
| 46 | MA-07300006204 | LINER T=0. Not Available Price: |
| 501544102 | 501544102 | OIL SCREEN Price: $14.99 |
| 501615801 | 501615801 | SPRING Price: $5.99 |
| 503230004 | 503230004 | WASHER 6.1X9 Price: $3.99 |
| 503230059 | 503230059 | WASHER Price: $3.99 |
| 503272101 | 503272101 | RETAINING RING Price: $2.99 |
| 503426701 | 503426701 | OIL HOSE Price: $8.99 |
| 503432001 | 503432001 | CLUTCH DRUM BEARING Price: $14.99 |
| 503521301 | 503521305 | OIL PUMP This part replaces 503521301. Price: $89.99 |
| 503521501 | 503521501 | PUMP PISTON Price: $14.99 |
| 503539201 | 503539201 | SUPPORT BUSHING Price: $11.99 |
| 503624901 | 503624901 | PLUG Price: $5.99 |
| 503644701 | 503644701 | GROMMET Price: $5.99 |
| 503744301 | 503744301 | CLUTCH SPRING Price: $4.99 |
| 503744401 | 586798401 | CLUTCH ASSY M14X1.25-6H This part replaces 503744401. Price: $49.99 |
| 503752401 | 503752401 | WASHER Price: $4.99 |
| 503756102 | 582270107 | Pumps This part replaces 503756102. Price: $12.99 |
| 503774301 | 503774301 | PIPE Price: $9.99 |
| 503811301 | 503811301 | SCREW Price: $3.99 |
| 503813001 | 503813001 | SPRING CLIP Price: $3.99 |
| 503840101 | 503840101 | PIPE Price: $22.99 |
| 503932471 | 586980601 | CLUTCH DRUM ASSY This part replaces 503932471. Price: $34.99 |
| 503932472 | 586980602 | CLUTCH DRUM ASSY This part replaces 503932472. Price: $44.99 |
| 504300026 | 504300026 | SEAL Price: $3.99 |
| 725532956 | 725532955 | SCREW MC6S 5X16 This part replaces 725532956. Price: $6.99 |
