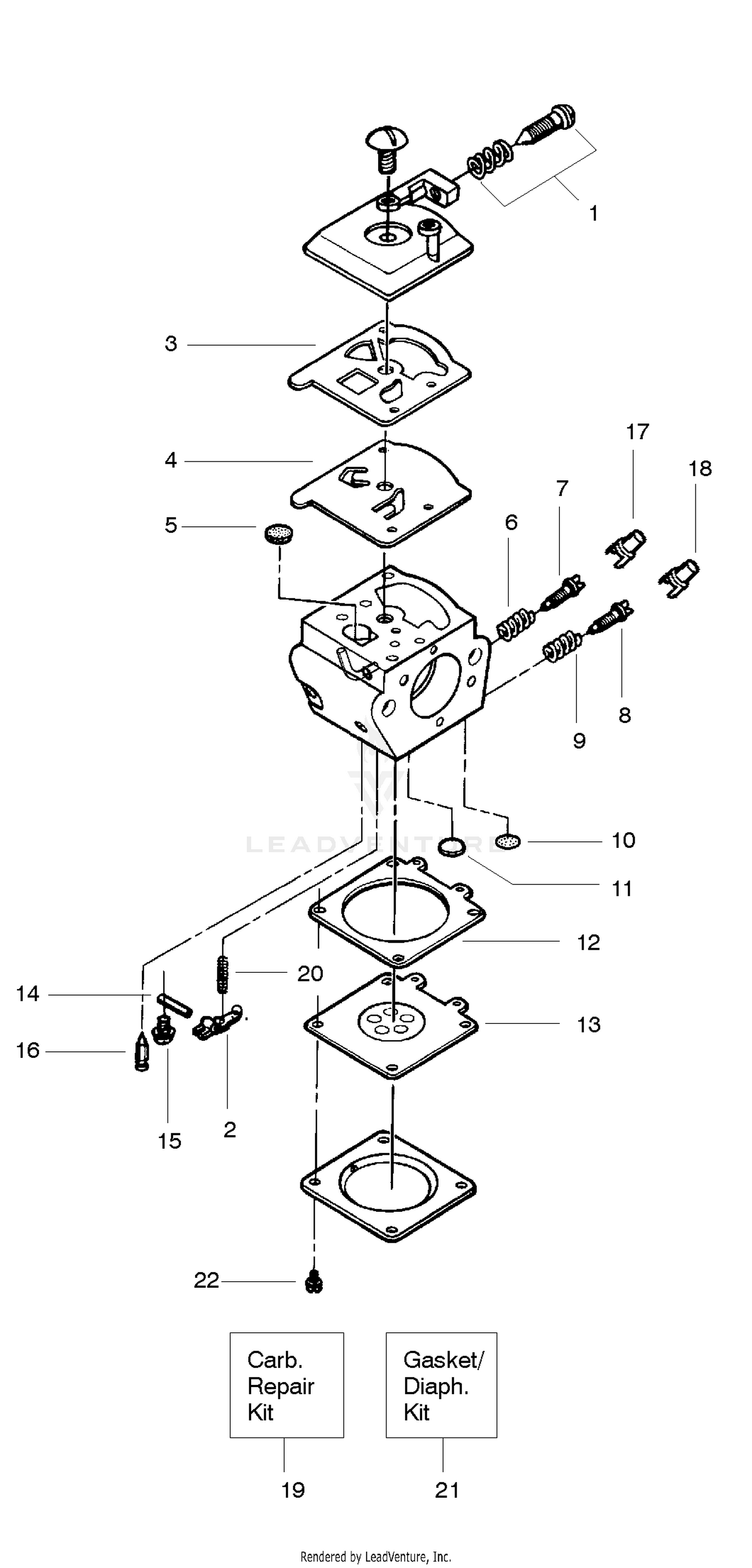

| Ref | Part Number | Description |
|---|
| 1 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 1 |
530035296 |
Idle Adv. Screw Kit Price: $6.99 |
| 2 |
505520127 |
Metering Lever This part replaces 530035031. Price: $3.99 |
| 2 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 3 |
140-6221 |
LINK AND BUSHING ASSEMBLY This part replaces 16-9759. Price: $70.43 |
| 3 |
504130906 |
GASKET This part replaces 530035164. Price: $1.99 |
| 4 |
504130807 |
PUMP DIAPHRAGM This part replaces 530035166. Price: $2.99 |
| 4 |
93-6981 |
SPACER Price: $4.69 |
| 5 |
3231-40 |
BOLT-CARR, SHORT NECK Price: $1.27 |
| 5 |
501666101 |
Screen This part replaces 507432582. Price: $3.99 |
| 6 |
115-4263 |
PLATE-SIDE, RH Price: $329.24 |
| 6 |
530035293 |
Needle Spring (Low Speed) Price: $1.99 |
| 7 |
115-4260 |
PLATE-SIDE, LH Price: $329.24 |
| 7 |
530035281 |
Low Speed Needle WT-239 Price: $6.99 |
| 7 |
530035383 |
Low Speed Needle WT-289 Price: $2.05 |
| 8 |
112-8936 |
TUBE-SUPPORT Price: $46.12 |
| 8 |
530035384 |
High Speed Needle WT-289 Price: $4.99 |
| 8 |
530037259 |
High Speed Needle WT-239 Price: Call Us |
| 8 |
530037294 |
High Speed Needle WT-202 Price: $4.99 |
| 9 |
112-8935 |
FRAME-CENTER Price: $455.11 |
| 9 |
530035295 |
Needle Spring (High Speed) Price: $1.99 |
| 10 |
530035162 |
Welch Plug (5/16) Price: $0.99 |
| 11 |
530035225 |
Cup Plug Price: $1.99 |
| 12 |
110-4058 |
BRACKET-CHAIN Price: $32.43 |
| 12 |
530035225 |
Metering Diaphragm Gasket Price: $1.99 |
| 13 |
503896701 |
DIAPHRAGM This part replaces 530035014. Price: $4.99 |
| 14 |
505520125 |
Pin This part replaces 530035028. Price: $1.99 |
| 15 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 |
530035016 |
Metering Lever Pin Screw Price: $2.99 |
| 16 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 16 |
503117001 |
Needle This part replaces 530035106. Price: $7.99 |
| 17 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 17 |
530038318 |
Limiter Cap High WT-289 only Price: $1.99 |
| 18 |
107-2979 |
BOLT-SHOULDER Price: $3.94 |
| 18 |
530038317 |
Limiter Cap Low WT-289 only Price: $1.99 |
| 20 |
530035188 |
Metering Lever Spring Price: $1.99 |
| 530069629 |
545013503 |
CARBURETOR This part replaces 530069629. Price: $32.99 |
