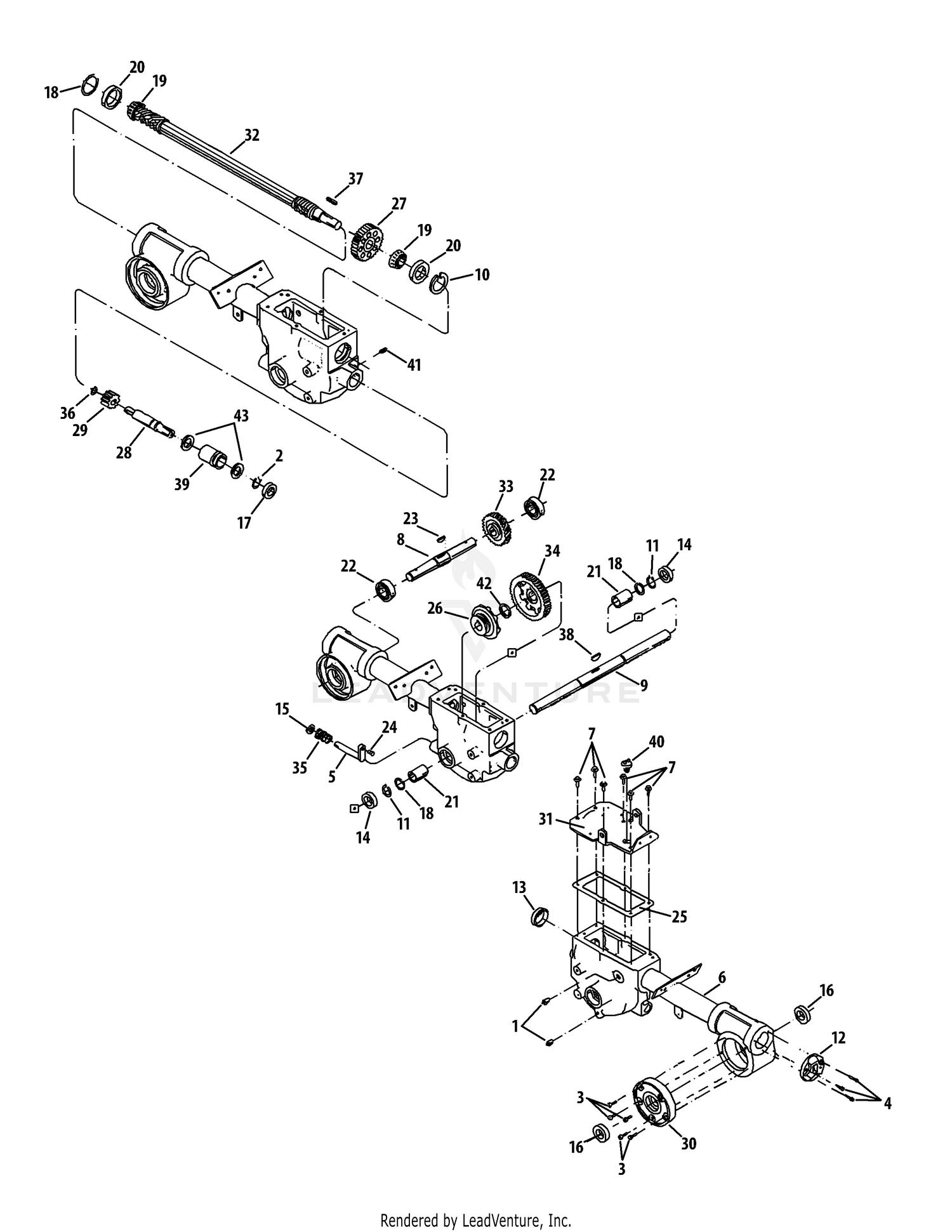

| Ref | Part Number | Description |
|---|
| 1 |
1105620 |
Pipe Plug Price: $3.66 |
| 2 |
716-0101 |
Retaining Ring-external This part replaces 916-0101. Price: $3.37 |
| 3 |
1915068 |
Hex Screw, 1.4-20 x .625 Price: $3.86 |
| 4 |
1915069 |
Self-Sealing Screw, 1.4-20 x .875 Price: $3.93 |
| 5 |
611-04002 |
Eccentric Shaft Price: $71.52 |
| 6 |
919-04010 |
TRANSMISSION HOUSING Not Available Price: |
| 7 |
710-04043 |
Hex Flange Screw, 5.16-18 x .750 Price: $3.96 |
| 8 |
GW-20896 |
Tiller Shaft Price: $97.12 |
| 9 |
911-04482 |
Wheel Shaft Price: $117.95 |
| 10 |
716-04102 |
Retaining Ring Price: $3.85 |
| 11 |
716-04104 |
Retaining Ring Price: $3.85 |
| 12 |
718-04406 |
Rear Bearing Cover Price: $44.01 |
| 13 |
721-04001 |
Oil Seal, 1.79 x .25 Price: $9.84 |
| 14 |
921-04031 |
Oil Seal, 1.0 x 1.499 Price: $9.58 |
| 15 |
921-04034 |
Oil Seal, .625 x 1.0 Price: $9.37 |
| 16 |
921-04035 |
Oil Seal, .984 x 1.75 Price: $10.91 |
| 17 |
921-04044 |
Oil Seal, .750 x 125 Price: $8.80 |
| 19 |
941-04298 |
Cone Bearing Price: $14.84 |
| 20 |
941-04299 |
Cup Bearing Price: $6.01 |
| 21 |
941-04300 |
Bushing, 1.25 x 1 x .005 x 1.5 Price: $15.25 |
| 22 |
941-3037 |
Ball Bearing Price: $38.73 |
| 23 |
GW-1104 |
Woodruff Key, .25 x 1.12 Price: $8.32 |
| 24 |
738-04448 |
PIN This part replaces GW-1442. Price: $7.14 |
| 25 |
GW-20694P |
TRANSMISSION COVER GASKET This part replaces GW-20694. Price: $4.52 |
| 26 |
GW-20712 |
Wheel Drive Clutch Price: $78.19 |
| 27 |
717-04690 |
Spur Gear This part replaces GW-20718. Price: $34.80 |
| 28 |
711-05388 |
PINION SHAFT This part replaces GW-20791. Price: $73.97 |
| 29 |
717-04689 |
Pinion Gear This part replaces GW-20792. Price: $19.85 |
| 30 |
GW-20873 |
Housing Cover Price: $95.24 |
| 31 |
1916193001 |
COVER-TRANS Not Available Price: |
| 32 |
GW-20912 |
Drive Shaft Price: $260.92 |
| 33 |
GW-20913 |
Worm Gear Price: $177.17 |
| 34 |
GW-20914 |
Wheel Drive Gear Price: $170.71 |
| 35 |
GW-9055 |
Spring, .850 x .875 Not Available Price: |
| 36 |
GW-9093 |
Bowed Ring Price: $6.01 |
| 37 |
GW-9301 |
Key, 3/16 sq. x 1 This part replaces GW-9301099. Price: $3.46 |
| 38 |
GW-9373 |
Hi-Pro Key, .25 x 1.312 Price: $8.81 |
| 39 |
GW-9428 |
Bushing, 1.24 x .75 x .18 Price: $32.88 |
| 40 |
GW-9467 |
Oil Plug Price: $4.41 |
| 41 |
GW-9677 |
SCREW-SET Not Available Price: |
| 42 |
GW-9935 |
Washer, 1.46 x 1.016 x .062 Price: $3.15 |
