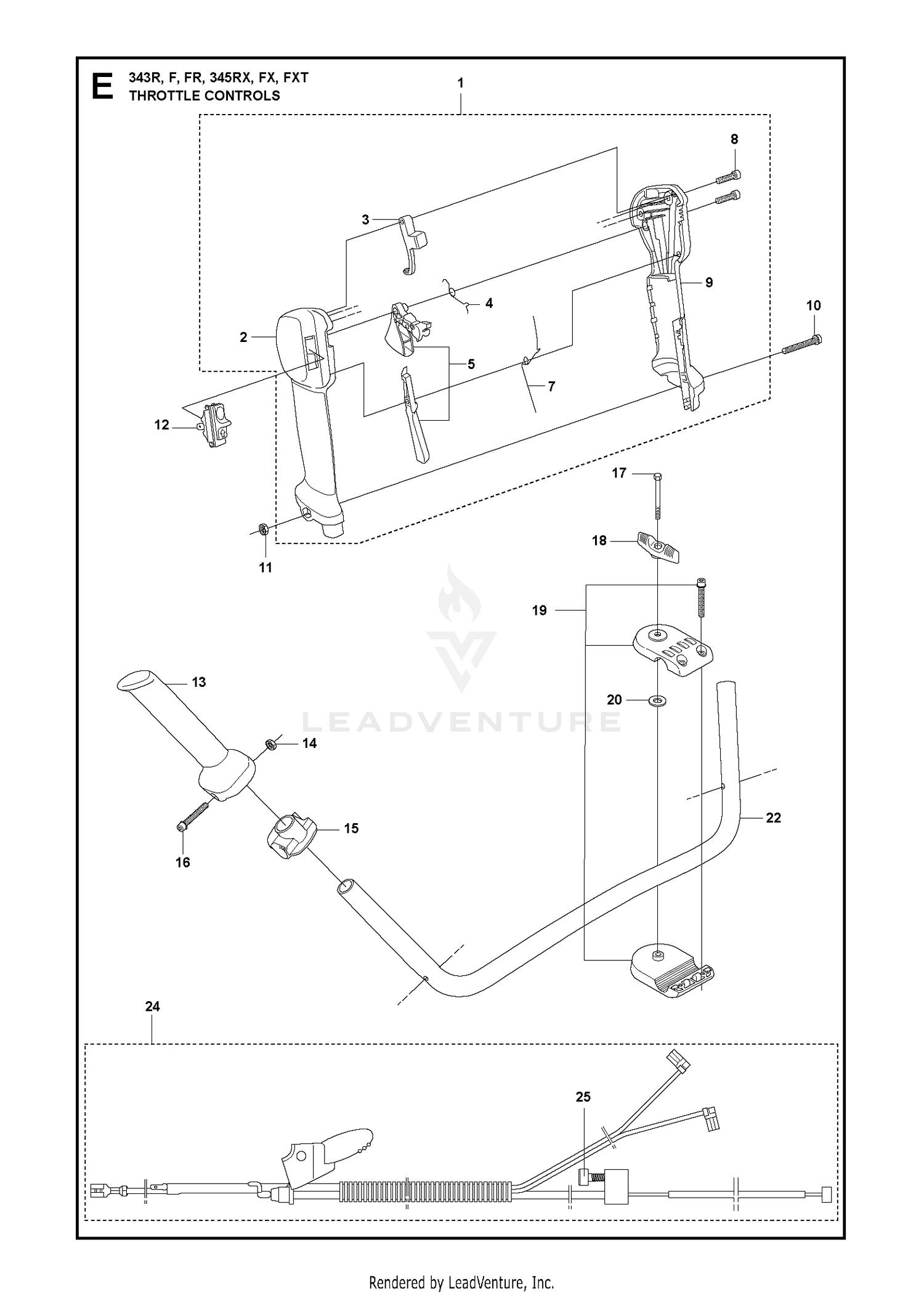

THROTTLE CONTROLS 2
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-0900 | CASE Price: $1,271.80 |
| 2 | 104-0901 | BEARING Price: $61.77 |
| 2 | 537180711 | HANDLE HALF LEFT Price: $17.99 |
| 3 | 104-0902 | RING-SNAP Price: $6.38 |
| 3 | 537160703 | STARTER THROTTLE LOCK This part replaces 537160701. Price: $4.99 |
| 4 | 104-0903 | SEAL Price: $35.34 |
| 4 | 537174201 | SPRING Price: $4.99 |
| 5 | 104-0904 | SHIM KIT Price: $9.36 |
| 5 | 506497701 | THROTTLE CONTROL Price: $6.99 |
| 6 | 104-0905 | GEAR Price: $707.92 |
| 7 | 537174301 | SPRING Price: $3.99 |
| 7 | 74-2960 | RING-RETAINING Price: $2.62 |
| 8 | 104-0906 | BEARING Price: $87.40 |
| 8 | 503216618 | SCREW Price: $3.99 |
| 9 | 104-0907 | SPACER Price: $55.51 |
| 9 | 537180811 | HANDLE HALF RIGHT Price: $17.99 |
| 10 | 104-0908 | KEY-PARALLEL Price: $10.05 |
| 10 | 503200782 | SCREW IHSCFM This part replaces 503200735. Price: $3.99 |
| 11 | 104-0909 | PINION AND SHAFT ASM Price: $1,157.86 |
| 11 | 503221013 | NUT Price: $3.99 |
| 12 | 104-0910 | SHAFT Price: $227.67 |
| 12 | 537419001 | STOP BUTTON Price: $7.99 |
| 13 | 104-0911 | COVER Price: $52.06 |
| 13 | 537172803 | HANDLE Price: $8.99 |
| 14 | 104-0912 | BOLT Price: $1.85 |
| 14 | 731231405 | NUT M6M M5 Price: $2.99 |
| 15 | 104-0913 | SHIM Price: $36.98 |
| 15 | 537172902 | BRACKET Price: $4.99 |
| 16 | 503200245 | SCREW Price: $3.99 |
| 17 | 725238281 | SCREW EHHM This part replaces 725238285. Price: $3.99 |
| 18 | 502203801 | HANDLE Price: $5.99 |
| 19 | 596283301 | HANDLEBAR BRACKET KIT Price: $24.99 |
| 20 | 502282101 | WASHER Price: $2.99 |
| 22 | 505433303 | HANDLE Price: $37.99 |
