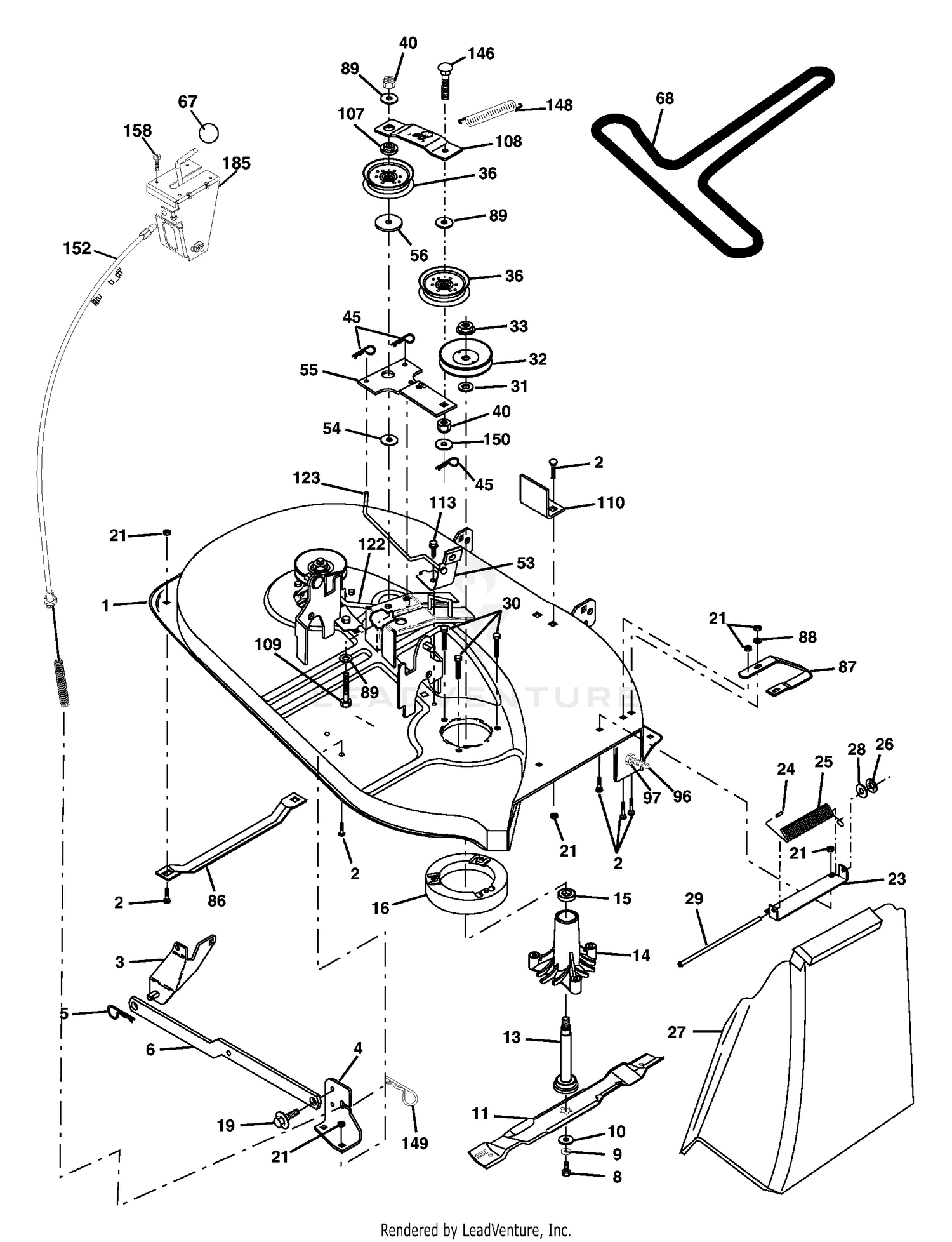

| Ref | Part Number | Description |
|---|
| 1 |
170280 |
Mower Housing Assembly Price: Call Us |
| 1 |
32128-44 |
NUT Price: $2.69 |
| 2 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 2 |
72140506 |
Bolt Carriage 5/16-18 x 3/4 Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar Price: Call Us |
| 3 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 4 |
169970 |
Bracket Deck Sway Bar 38"/42" Price: Call Us |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 5 |
92-8854-03 |
PIVOT BRACKET ASM Price: $81.10 |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
3220-3 |
NUT-HJ Price: $0.28 |
| 7 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 8 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Gr. 8 Price: Call Us |
| 9 |
10030600 |
Washer, Lock 3/8 Price: Call Us |
| 9 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 10 |
140296 |
Washer, Hardened Price: Call Us |
| 10 |
92-5534 |
SHAFT-PEDAL, TRACTION Price: $55.59 |
| 11 |
5-7570 |
WASHER-FLAT Price: $6.19 |
| 12 |
28-5220 |
FRICTION WHEEL ASM Price: $108.15 |
| 13 |
94-3307 |
PAD-PEDAL, TRACTION Price: $12.11 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
94-3308 |
PAD-PEDAL, TRACTION Price: $8.96 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
92-5537 |
PIN-PEDAL, TRACTION Price: $41.17 |
| 16 |
174493 |
Stripper, Vented Mower Deck Price: Call Us |
| 16 |
94-3591-03 |
DISCONTINUED Price: Call Us |
| 17 |
92-5514-01 |
FOOTREST ASM Price: $37.73 |
| 18 |
92-5077 |
BRACKET-FOOTREST Price: $10.24 |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 19 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 20 |
92-5750 |
PAD-FOOTREST Price: $11.26 |
| 21 |
32128-56 |
NUT-HF Price: $1.09 |
| 21 |
73680500 |
Nut Price: Call Us |
| 22 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 23 |
137607 |
Bracket, Mower Deflector Price: Call Us |
| 23 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 24 |
323-29 |
SCREW-HH Price: $0.42 |
| 25 |
123713X |
Spring, Torsion, Deflector Price: Call Us |
| 25 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
106736X428 |
Shield, Deflector Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
106735X |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw Thdrol. Price: Call Us |
| 31 |
187690 |
Washer, Spacer Price: Call Us |
| 32 |
153532 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock Price: Call Us |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 40 |
73680600 |
Nut, Crownlock 3/8-16 unc Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 53 |
130840 |
Brake Assembly Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
133840 |
Idler Arm Assembly Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 67 |
106932X |
Knob Price: Call Us |
| 68 |
144200 |
V-Belt, 42" Mower Price: Call Us |
| 86 |
7631J |
Runner, LH Price: Call Us |
| 87 |
128772 |
Runner, RH Price: Call Us |
| 88 |
19111216 |
Washer 11/32 x 3/4 x 16 Ga. Price: Call Us |
| 89 |
19131311 |
Washer 13/32 x 13/16 x 11 Ga. Price: Call Us |
| 96 |
74930620 |
Bolt 3/8-16 x 1-1/4 Mulcher Price: Call Us |
| 97 |
73930600 |
Nut Centerlock 3/8-16 unc Price: Call Us |
| 107 |
133502 |
Spacer Retainer Price: Call Us |
| 108 |
133503 |
Stiffener, Idler Arm Price: Call Us |
| 109 |
74760640 |
Bolt, Hex Hd 3/8-16 x 2-1/2 Price: Call Us |
| 110 |
142587 |
Upstop Deck Front 38" Price: Call Us |
| 113 |
17060512 |
Screw 5/16-1/ x 3/4 Price: Call Us |
| 122 |
131289 |
Rod, Brake LH Price: Call Us |
| 123 |
169971 |
Rod, Brake RH Price: Call Us |
| 146 |
165891 |
Bolt Carriage Idler Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091216 |
Washer 9/32 x 3/4 x 16 Ga. Price: Call Us |
| 152 |
172758 |
Clutch Cable 38"/46" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 185 |
188234 |
Head Asm Cable Clutch Price: Call Us |
