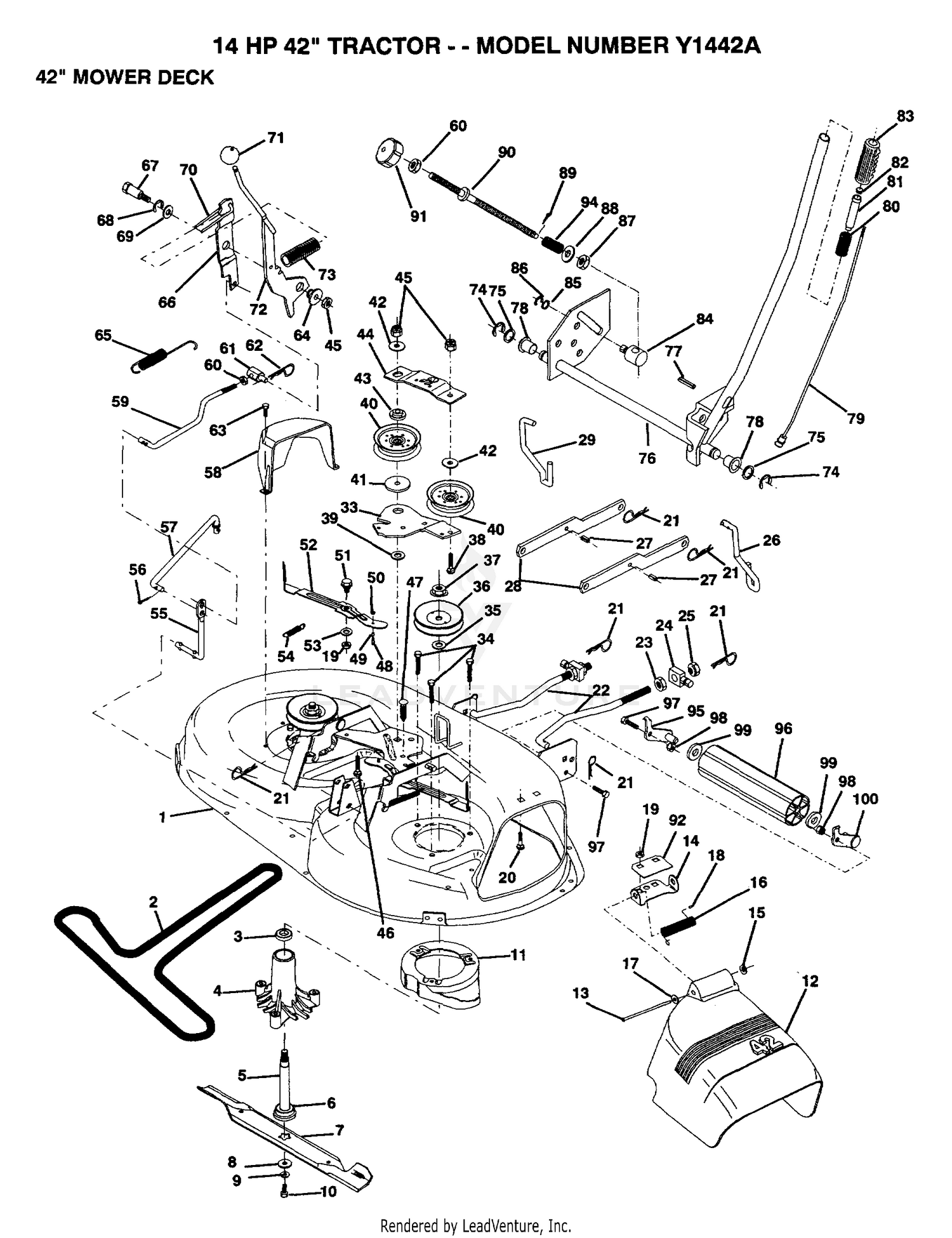

| Ref | Part Number | Description |
|---|
| 1 |
130970 |
SUB= 145338 Price: Call Us |
| 1 |
98-9567 |
COLLAR Price: $3.78 |
| 2 |
130969 |
BELT-V.92.4.MWR Price: Call Us |
| 3 |
110485X |
BEARING Price: Call Us |
| 4 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 4 |
98-9681 |
SPRING-GOVERNOR Price: $12.06 |
| 5 |
133172 |
SUB= 137646 Price: Call Us |
| 5 |
98-9645 |
SPRING-START Price: $11.13 |
| 6 |
129895 |
BEARING.BALL Price: Call Us |
| 7 |
105-3787 |
FORK LEVER ASM This part replaces 98-9680. Price: $220.75 |
| 7 |
127843 |
SUB= 138498 Price: Call Us |
| 8 |
129962 |
WASHER BLADE Price: Call Us |
| 8 |
98-9568 |
COLLAR Price: $4.68 |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
98-9571 |
BEARING-MINIATURIZE Price: $8.24 |
| 10 |
850857 |
BLADE BOLT Price: Call Us |
| 11 |
128961 |
SUB= 140329 Price: Call Us |
| 12 |
130968 |
DEFLECTOR.SHIELD Price: Call Us |
| 13 |
131491 |
HINGE ROD Price: Call Us |
| 13 |
98-9682 |
GASKET Price: $0.95 |
| 14 |
130-8182 |
KIT-SHAFT COVER, FORK LEVER This part replaces 98-9569. Price: $13.53 |
| 14 |
131267 |
DEFLECTOR BRKT Price: Call Us |
| 15 |
110452X |
NUT PUSH M Price: Call Us |
| 16 |
123713X |
SPRING.(150051) Price: Call Us |
| 17 |
19111016 |
WASHER Price: Call Us |
| 18 |
105304X |
CAP-SLEEV(107627) Price: Call Us |
| 19 |
73680500 |
SUB= 73690500 Price: Call Us |
| 20 |
72140506 |
BOLT Price: Call Us |
| 21 |
4939M |
Spring, Retainer Price: Call Us |
| 22 |
127218 |
LINK.FRONT Price: Call Us |
| 23 |
73350800 |
NUT Price: Call Us |
| 24 |
130171 |
TRUNION Price: Call Us |
| 25 |
73800800 |
NUT.LK.W/WSH.1/2. Price: Call Us |
| 26 |
135388 |
LIFT LINK RH Price: Call Us |
| 27 |
128763 |
SPRING PIN Price: Call Us |
| 28 |
130832 |
SUB= 130833 Price: Call Us |
| 29 |
134619 |
LINK LIFT LH Price: Call Us |
| 33 |
133844 |
IDLER ARM Price: Call Us |
| 34 |
78158 |
SUB= 17580520 Price: Call Us |
| 35 |
129963 |
WASHER Price: Call Us |
| 36 |
129861 |
SUB= 153535 Price: Call Us |
| 37 |
73050900 |
SUB= 139729 Price: Call Us |
| 38 |
72110614 |
BOLT Price: Call Us |
| 39 |
133943 |
HARDENED WASHER Price: Call Us |
| 40 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 41 |
122052X |
Spacer, Retainer Price: Call Us |
| 42 |
19131612 |
WASHER GT Price: Call Us |
| 43 |
133502 |
RETAINER SPACER Price: Call Us |
| 44 |
133503 |
IDLER ARM STIFF Price: Call Us |
| 45 |
73680500 |
SUB= 73690500 Price: Call Us |
| 46 |
72110618 |
BOLT CARRIAGE Price: Call Us |
| 47 |
133835 |
XMAS TREE FASTNER Price: Call Us |
| 48 |
131340 |
SHOULDER BOLT Price: Call Us |
| 49 |
133940 |
SUB= 151785 Price: Call Us |
| 50 |
69180 |
LOCKNUT Price: Call Us |
| 51 |
105529X |
Bolt Shoulder 5/16-18 Unc Price: Call Us |
| 52 |
131845 |
BRAKE PAD ARM ASM Price: Call Us |
| 53 |
133944 |
HARD SMALL WASHER Price: Call Us |
| 54 |
131335 |
SPRING EXTENSION Price: Call Us |
| 55 |
133551 |
PIVOT ROD Price: Call Us |
| 56 |
76020312 |
SUB= 3145 Price: Call Us |
| 57 |
133504 |
CLUTCH ROD SECOND Price: Call Us |
| 58 |
131857 |
SUB= 140088 Price: Call Us |
| 59 |
133550 |
SUB= 142427 Price: Call Us |
| 60 |
73350600 |
NUT Price: Call Us |
| 61 |
133205 |
TRUNION Price: Call Us |
| 62 |
4497H |
RETAINER M (5 2)(3 2) Price: Call Us |
| 63 |
17720410 |
SCREW LT Price: Call Us |
| 64 |
127498 |
BUSHING Price: Call Us |
| 65 |
131870 |
RETURN SPRING Price: Call Us |
| 66 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 67 |
128903 |
SHOULDER BOLT Price: Call Us |
| 68 |
12000029 |
RING Price: Call Us |
| 69 |
121748X |
WASHER Price: Call Us |
| 70 |
127845 |
SPRING KEEPER Price: Call Us |
| 71 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 72 |
133573 |
CLUTCH ARM PRI AS Price: Call Us |
| 73 |
128759 |
SUB= 918128759 Price: Call Us |
| 74 |
12000002 |
SUB= 2225J Price: Call Us |
| 75 |
19211416 |
WASHER Price: Call Us |
| 76 |
122507X |
SUB= 145117 Price: Call Us |
| 77 |
105767X |
PIN-GROOVE LT Price: Call Us |
| 78 |
120183X |
NYLON BEARING Price: Call Us |
| 79 |
122514X |
SUB= 136973 Price: Call Us |
| 80 |
122512X |
SUB= 532122512 Price: Call Us |
| 81 |
122364X |
Plunger, Lever Lift Price: Call Us |
| 82 |
124526X |
Button Plunger Black Price: Call Us |
| 83 |
109413X |
GRIP Price: Call Us |
| 84 |
110810X |
TRUNION LT Price: Call Us |
| 85 |
19151216 |
WASHER Price: Call Us |
| 86 |
12000037 |
KLIP RING Price: Call Us |
| 87 |
110807X |
NUT T (2 2) (1 2) Price: Call Us |
| 88 |
19131016 |
WASHER Price: Call Us |
| 89 |
76020308 |
SUB= 3145 Price: Call Us |
| 90 |
126971X |
Rod Adj Lift Zinc 7.49 Wrk Lg Price: Call Us |
| 91 |
100734K |
SUB= 138057 Price: Call Us |
| 92 |
134753 |
STIFFENER BRKT Price: Call Us |
| 94 |
2876H |
SPRING T Price: Call Us |
| 95 |
132274 |
SUB= 532132274 Price: Call Us |
| 96 |
132264 |
SUB= 532132264 Price: Call Us |
| 97 |
74760616 |
BOLT Price: Call Us |
| 98 |
73680600 |
SUB= 73690600 Price: Call Us |
| 99 |
19171416 |
WASHER Price: Call Us |
| 100 |
132273 |
SUB= 532132273 Price: Call Us |
