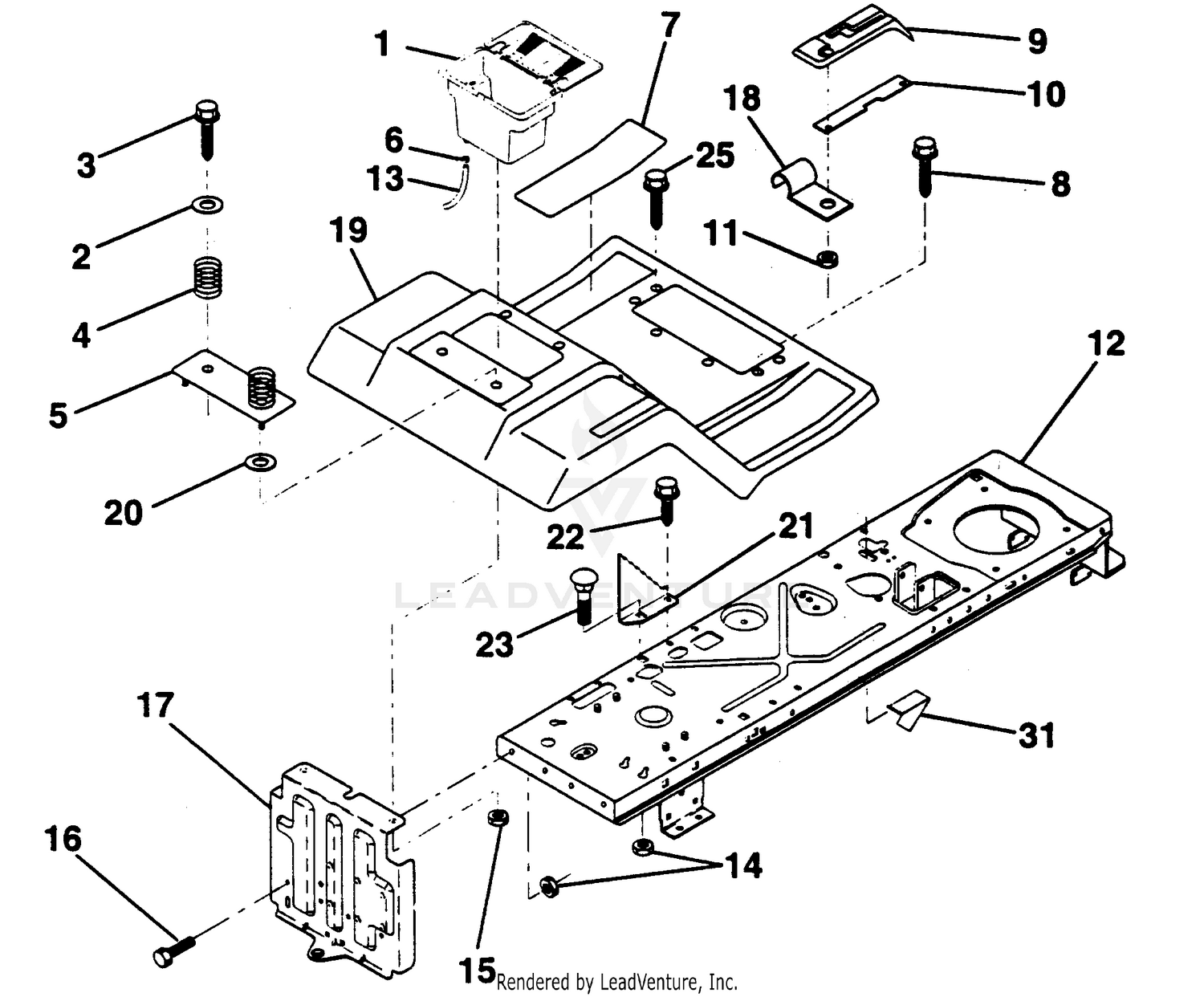

| Ref | Part Number | Description |
|---|
| 1 |
107-7773 |
SCREW-HSH Price: $8.36 |
| 1 |
532144940 |
Case Battery (AYP part number) This part replaces 532129965. Price: $24.99 |
| 2 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 2 |
819132012 |
Washer 13/32 x 1-1/4 x 12 Ga. (AYP part number) Price: $2.99 |
| 3 |
112-8942 |
FRONT GRASS SHIELD ASM Price: $44.08 |
| 3 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 4 |
125-1997 |
SHIELD-GRASS, REAR Price: $68.52 |
| 4 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 5 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 5 |
532125139 |
Plate Asm. Pnt Battery Fender (AYP part number) Price: Call Us |
| 6 |
322-14 |
SCREW-HH Price: $1.01 |
| 6 |
532109596 |
Clamp Hose Olive (AYP part number) Price: $2.99 |
| 7 |
110-1706 |
DEFLECTOR Price: $4.76 |
| 7 |
532134214 |
Pad Footrest (AYP part number) Price: $3.33 |
| 8 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 9 |
532126995 |
Console Shf. 6sp W/Ign. (AYP part number) Price: $14.99 |
| 10 |
532139783 |
Plate Lock Shift (AYP part number) Price: $3.99 |
| 11 |
532124346 |
Nut Self Thd. Wsh-Hd 1/4 (AYP part number) Price: $3.99 |
| 12 |
532140784 |
Chassis Asm. Weldment (AYP part number) Price: $101.93 |
| 13 |
532109238 |
Tube Plastic (AYP part number) Price: $5.46 |
| 14 |
873800500 |
Nut Lock Hex W/Ins 5/16-18 (AYP part number) Price: $2.99 |
| 15 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 16 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99 |
| 17 |
532140782 |
Drawbar Asm. (AYP part number) Price: $26.91 |
| 18 |
532126470 |
Clip Insulated (AYP part number) Price: $3.99 |
| 19 |
532125394 |
Fender/Footrest (AYP part number) This part replaces 532141471. Price: $199.99 |
| 20 |
819091416 |
WASHER This part replaces 819091413. Price: $3.99 |
| 21 |
532140297 |
Bracket Stop Depth (AYP part number) Price: $2.70 |
| 22 |
817490508 |
Screw Thdrol 5/16-18 x 1/2 (AYP part number) Price: $3.99 |
| 23 |
872110506 |
Bolt Rdhdsqnk. 5/16-18 x 3/4 (AYP part number) Price: $3.99 |
| 25 |
817490516 |
Scr-Hex Wsh Rol 5/16-18 x 1 (AYP part number) Price: $2.99 |
