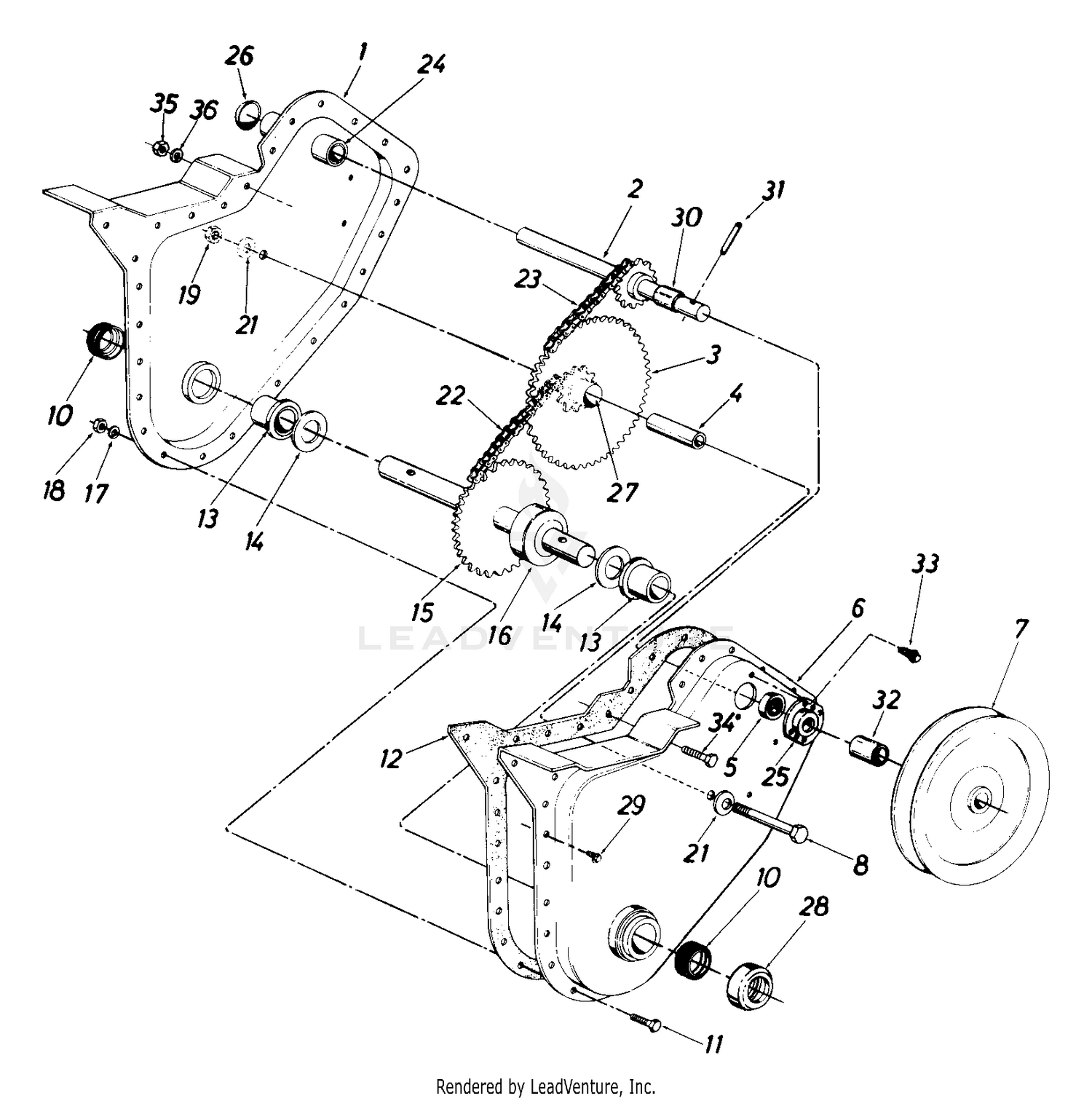

| Ref | Part Number | Description |
|---|
| 1 |
686-0024 |
Chain Case Ass'y. - R.H. Price: Call Us |
| 2 |
04756 |
SHAFT ASSEMBLY-INPUT Not Available Price: |
| 3 |
04757 |
SPROCKET & HUB ASSEMBLY Not Available Price: |
| 4 |
750-0351 |
SLEEVE .623 OD x .380 ID x 1.5 LG Not Available Price: |
| 5 |
941-0155 |
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. This part replaces 741-0155. Price: $22.09 |
| 6 |
686-0023 |
CHAIN CASE ASSEMBLY (LH) Not Available Price: |
| 10 |
721-0157 |
SEAL Not Available Price: |
| 12 |
921-0156A |
GASKET Not Available This part replaces 721-0156A. Price: |
| 13 |
741-0227 |
Flange Brg. .879" I.D. Price: $10.23 |
| 14 |
736-0265 |
FLAT WASHER .88 x 1.50 x .030 Not Available Price: |
| 15 |
04920 |
SHAFT ASSEMBLY-TINE Not Available Price: |
| 16 |
750-0354A |
SPACER Not Available Price: |
| 18 |
712-0138 |
Hex Nut 1/4 - 28 Thd. Price: $5.99 |
| 19 |
712-0116 |
Hex Ins. L-Nut 3/8 - 24 Thd. Price: $3.95 |
| 21 |
936-0219 |
Bell-Wash. .400" I.D. x 1.13" O.D. This part replaces 736-0219. Price: $3.86 |
| 24 |
748-0154 |
BEARING Not Available Price: |
| 25 |
05034A |
BEARING HOUSING Not Available Price: |
| 26 |
726-0164 |
EXPANSION PLUG Not Available Price: |
| 27 |
741-0228 |
BEARING Not Available Price: |
| 29 |
710-0599 |
Hex Wash. Hd. Self-Tap Scr. 1/4 - 20 x .50" Lg. Price: $3.86 |
| 30 |
750-0471 |
SPACER Not Available Price: |
| 33 |
710-0653 |
Hex Wash. Hd. Self-Tap Scr. 1/4 - 20 x .38" Lg. Price: $3.78 |
| 34 |
710-0118 |
Hex Bolt 5/16 - 18 x .75" Lg. Price: $3.76 |
| 35 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 36 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
