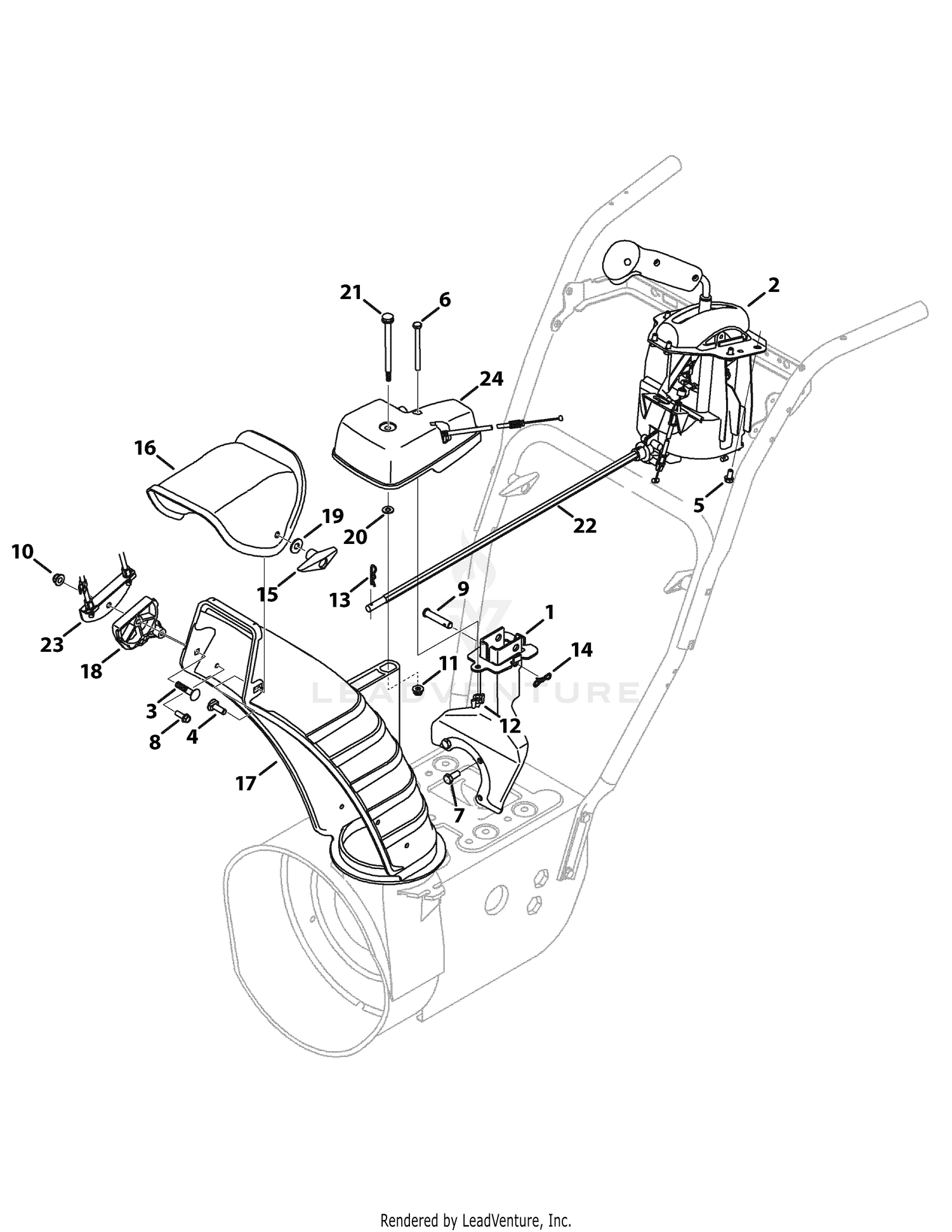

| Ref | Part Number | Description |
|---|
| 1 |
684-04310B-0637 |
CHUTE SUPPORT BRACKET (POWDER BLACK) This part replaces 684-04310A-0637. Price: $35.80 |
| 3 |
710-0262 |
Bolt, Carriage, 5/16-18 x 1.50 Price: $3.66 |
| 4 |
710-04071 |
Bolt, Carrier, 5/16-18 x 1.00 Price: $3.94 |
| 5 |
710-04187A |
HEX SCREW 1/4-15 x .50 This part replaces 710-04187. Price: $5.99 |
| 6 |
710-04370 |
Hex Head Screw, 1/4-20 x 3.00 Price: $3.66 |
| 7 |
710-0627 |
Hex Head Screw, 5/16-24 x .750 Price: $3.68 |
| 8 |
710-0895 |
Screw, HL, 1/4-15 x 0.750 Price: $5.82 |
| 9 |
711-04469A |
Clevis Pin, 3/8 x 1.87 Price: $5.15 |
| 10 |
712-04063 |
Nut, Flangelock, 5/16-18 Price: $3.56 |
| 11 |
712-04064 |
Nut, Flangelock, 1/4-20 Price: $3.64 |
| 12 |
712-3087 |
WING NUT 1/4-20 Price: $3.53 |
| 13 |
714-0101 |
Int. Cotter Pin This part replaces 914-0101. Price: $4.13 |
| 14 |
714-04040 |
Bow-Tie Cotter Pin Price: $1.28 |
| 15 |
720-04072A |
Star Knob, 5/16-18 Price: $6.07 |
| 16 |
731-04427B |
UPPER REMOTE CHUTE WITH LABEL This part replaces 731-04427A. Price: $14.55 |
| 17 |
731-06440A |
Chute, Lower Price: $45.59 |
| 18 |
731-06451 |
Cable Guide, Chute Tilt Price: $4.26 |
| 19 |
736-0159 |
Washer This part replaces 936-0159. Price: $3.71 |
| 20 |
736-04446 |
Washer, Flat, .25 x .630 x .0515 Price: $3.75 |
| 21 |
738-04367 |
Screw, Shoulder, .312 x 3.5 x 1/4-20 Price: $4.36 |
| 22 |
747-05116 |
Chute Rod, 3/8 Hex Price: $26.47 |
| 23 |
784-5594-0637 |
Cable Bracket Price: $10.15 |
